Help CenterCloudnetgo Android TV Box in Amlogic S805 DVB-S2 Quad Core A5/Smart Set Top Box in Octo-core Mali 450MP 600MHz 3D in 2.4G Wifi
Related Products
-
RK3188 Quad Core Mini pc Android4.4 tv Box Built in 2GB RAM 8GB ROM Full XBMC 1080P Player and Wireless $ BluetoothNegotiableMOQ: 10 Pieces -
RK3188 Quad Core Webcam Android Media Player HD Built in 2GB RAM 8GB ROM With XBMC 1080P PlayerNegotiableMOQ: 10 Pieces
-
RK3188 Quad Core Android Webcam HDD Players With 3D IPTV Set Top Box Build in XBMC PlayerNegotiableMOQ: 1 Piece
-
Cloudnetgo CR12S Set Top Box 4K Android Box 2GB/8GB Kodi Dual Band 2.4G/5G Wifi Full HDD Media PlayerNegotiableMOQ: 1 Piece
-
Factory Wholesale! EKB315 CR10S 1080p Pron Video Xbmc Streaming tv Box Android Smart TV Box With Camera Amazon Fire TVNegotiableMOQ: 1 Piece
Cloudnetgo Android TV box in Amlogic S805 DVB-S2 Quad core A5/Smart Set top box in Octo-core Mali 450MP 600MHz 3D in 2.4G wifi brief introduction:
KI(S805-S2) Main Features:
1. CPU: Amlogic S805 Quad core Cortex A5
2. GPU: Octo-core Mali-450MP GPU 600MHz
3. Memory : DDRIII 1GB
4. Nand Flash 8GB ( 8~32GB Optional)
5. WiF: Built in 2.4G WiFi
6. Blutoot: Optional
Production discription:
| Model | KI(S805+S2) | |||
| Quad-core Android4.4 STB Hybrid | ||||
| Hardware | ||||
| CPU | Amlogic S805 Quad core Cortex A5 | |||
| GPU | Octo-core Mali-450MP GPU 600MHz | |||
| 3D | Hardward 3D graphics acceleration | |||
| Memory | DDRIII 1GB | |||
| Flash | Nand Flash 8GB ( 8~32GB Optional ) | |||
| WiFi | Built in 2.4G WiFi | |||
| Blutooth | Optional | |||
| IR | Infra Remote control | |||
| LED Indicator | Power ON :blue; Standby :Red | |||
| Mould | Private Tooling | |||
| 3G | Support most external 3G USB dongle | |||
| CCCam | Support | |||
| Newcamd | Support | |||
| Biss | Support | |||
| DVB-S2 | DEMO:AVL6211 | |||
| TUNER:AV2012 | ||||
| DVB-S2 system standard:ETS 302 307 | ||||
| Symbol Rates: QPSK,8PSK | ||||
| Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | ||||
| Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||
| Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | ||||
| Symbol Rates: 1- 55 Msps | ||||
| Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
| Input Signal level: -84 dBm to 0 dBm (average power) | ||||
| ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male | ||||
| I/O | HDMI 1.4 | 1080P Support | ||
| 4*USB HOST | 4 High speed USB 2.0,support U DISK and USB HDD | |||
| 1*TF CARD | Support 1~32GB | |||
| 1*AV | AV output | |||
| 1*SPDIF | Audio output | |||
| 1*RJ45 | 10/100 BaseT | |||
| Power | DC Adapter ( 12V/1A) | |||
| 1*RF IN | DVB RF IN | |||
| 1*RF OUT | DVB RF OUT | |||

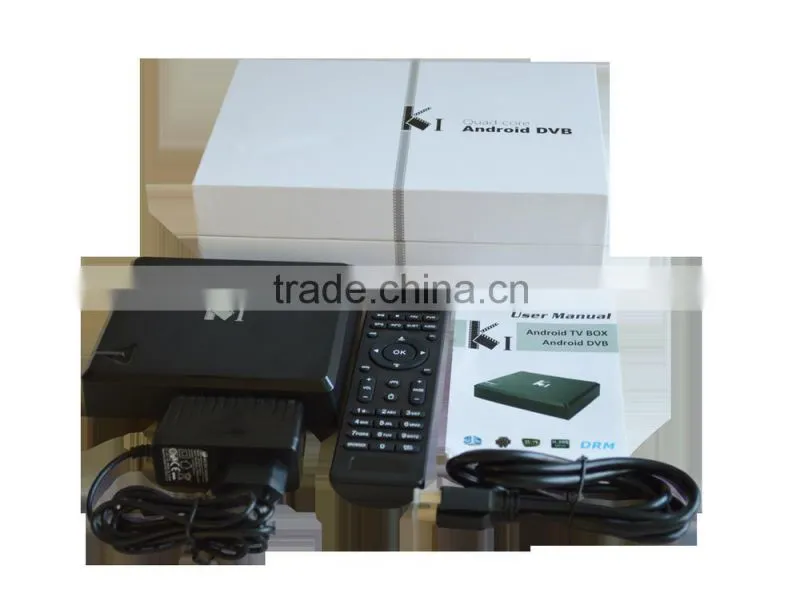

| Accessories | Adapter | |||
| Gift Box | ||||
| IR remote control | ||||
| HDMI Cable | ||||
| User Manual | ||||
| Software | ||||
| OS | Android 4.4.2 (KitKat) | |||
| Decoder | HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 | |||
| Video | AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG | |||
| Music | MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE | |||
| Photo | HD JPEG/BMP/GIF/PNG/TIFF | |||
| Adobe Flash | Adobe Flash 10.1 support or above | |||
| Support Language | Chinese , English ,Germany ,Japanese, Korea etc. 24 languages | |||
| WiFi Hotpoint | Support | |||
| Mouse/ Keyboard | Support mouse and keyboard via USB Support 2.4G wireless mouse and keyboard via 2.4G USB dongle |
|||
| XBMC | Support local high-definition play, support plug-in installation and play | |||
| DRM | Optional :Microsoft Playready,Verimatrix ,Google Widevine | |||
| Others | support DLNA AirPlay Google TV Remote LAN Miracast 3D moive | |||
| Appliactions | ||||
| Online | Browse all video websites ,support Netflix ,Hulu ,Picasa,Youtube,Twitter ,Facebook,etc | |||
| Apps | Apps download freely form android market ,amazon appstore etc | |||
| Medium | Local Media playback,support HDD, U disck ,SD card | |||
| Talk online | Support SKYPE video call , facebook ,twitter ,Netflix ,Youtube , etc | |||
| Others | Support Email , office suit etc | |||
| Loading | ||||
| Loading | machine size | 130*120*32MM | Packaged size | 230*157*70mm |
| machine weight | 183g | Packaged weight | 650g | |
| PCS/CTN | 20 | Carton Size | 480*375*335mm | |

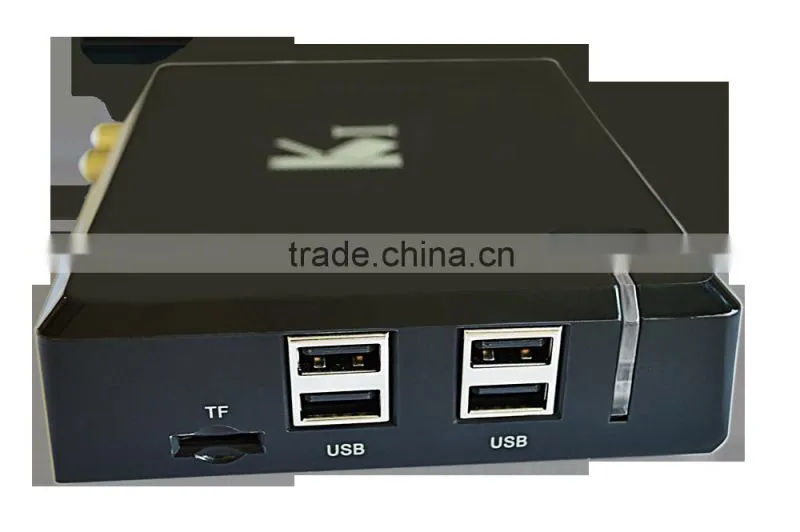

Product show room:

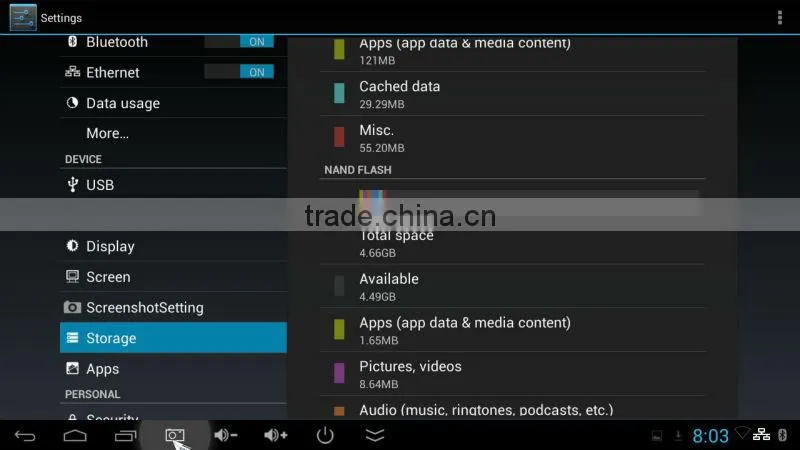

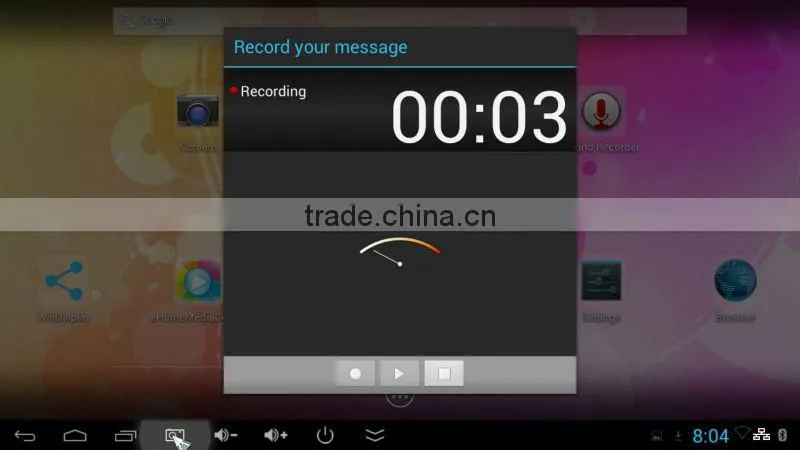

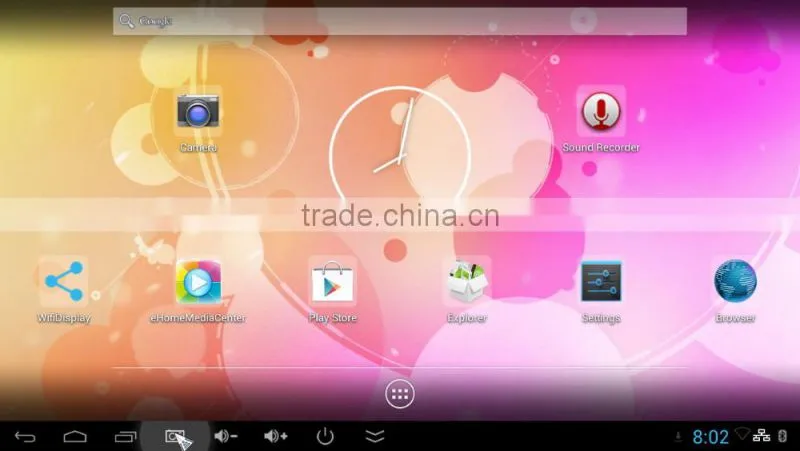

The starting up interface:
About our factory:
The related certificate:
Our Main Advantages:
1.Being the real manufacturer, we manufacture all the devices by ourself, that is the only reason why our price is much more competitive than other brands.
2. Having getting a better discount from express company such DHL, EMS, our shipping cost will be lower, and as usual, it only need 3-5days to USA ,UK, Europe,etc.
3.Excellent elite team, Started in 2011.
4.Remarkable international reputation and keep a fixed philosophy.
5.A top supply chain of Elctronic Tv Box, mini pcs and fly mouse in Dongguan
6.OEM/ODM Top Services, your one key partner in China.
Warranty and Return:
1. Abiding by quality win market, and rigorous factory quality control, all products were tested OK again on production line before packing.
2. 12 months Manufacturer's Warranty for defective items (excluding items damaged and/or misused after receipt).
3. If any problem occurs when using your item, please just contact us and we will provide you professional technology support. If item was faulty, we will provide the replacement/repair/return/refund services subject to different conditions.
Kindly Notice:
1. Orders will be processed within 24-48 hours after payment verification.
2. Please make sure of your shipping address is correct and leave us your contact phone number.
3. In some Customs restriction countries, like Brazil, Russia, Italy, France, Greece etc., the Customs may hold items for some days, if it is really delayed there some days, your kindly patience will be much highly appreciated.
4. If you have not received your parcel within 30 days after your payment, please contact us. We will track the shipment and give you an early reply as soon as possible.
What could we do for you?
Quality service
1 100% quality testing for every finished products before delivery;
2 Professional Aging testing room for aging testing time over 10 hours.
3 Professional function testing for every process.
4 Our partnership: Rockchip, Broadcom, Cypres, EMC and etc.
5 One year warranty service for all products from Dongguan Sonicway
Factory capacity
6 10,000 square meters factory working area.
7 8 production flow lines with correct operation instruction.
8 Professional testing laboratory
9 Full sets of the certificates and patents, CE, ROHS etc.
10 The annual production capacity more than one million sets
Delivery Service
11 Standard export safety and environment-friendly packing
12 Quick lead time: small order 1-3 days, batch order 4 week's time
13 Accept EXW, FOB, CIF and other price terms
Technical Service
14 Professional Engineering supplies technical supporting
15 Support OEM, ODM project
16 Continuing product updates and loyal after sales service
Shopping & Shipping way:
Choose us ,up to your 100% satisfaction.
For more detalis,pls contact:
Email: sales7(at)
Skype:elaine92091
Tel: 86 0769-38936098-8818
Mob&Whats app: 86 13649816054
Web:
https://img13.fr-trading.com
