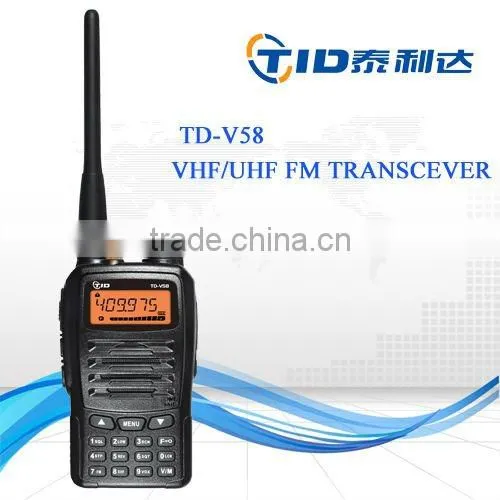

High Power Anti-shock Good Push to Talk Two Way Radio TD-V58

High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-1
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-2
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-3
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-4
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-5
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 thumbnail-6
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-1
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-2
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-3

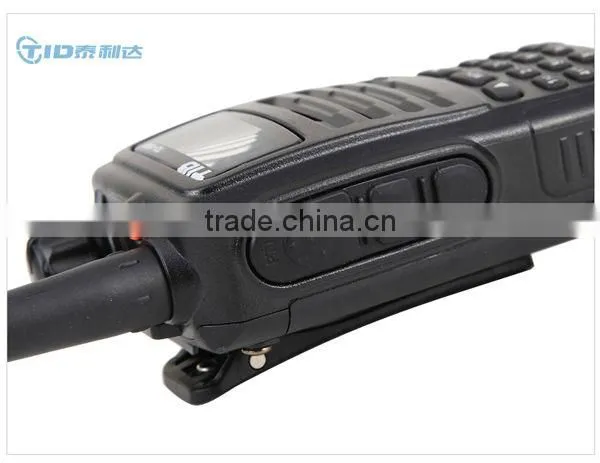

High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-4
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-5
High Power Anti-shock Good Push to Talk Two Way Radio TD-V58 photo-6
US$ 20 - 38 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V58
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Xiamen/Hongkong/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V58
Type Handheld
Dimensions 98.3*57.7*28mm
Frequency Range 136-174MHz/400--470MHz
Storage Channel 128
Talk Range 5km

  high power anti-shock good push to talk two way radio TD-V58    MOQ 2 PCS





Main Features:

  • 128 Channels, 1200mAh Li-ion battery
  • DTMF Encode&Decode
  • Voice Compander/Scramber
  • Wide/Narrow Band Selectable
  • PTT ID
  • Built-in FM radio Feature
  • Time-out Timer (TOT)
  • 1750HZ tone
  • 51CTCSS/214DCS



General

Frequency Range

VHF:136-174MHz   UHF:400-470MHz,450-520MHz

Channel Capacity

128

Channel Spacing

12.5/25.0KHz

Operating Voltage

DC 7.4V

Battery Capacity

1200mAh(Li-ion)

Battery Life (5-5-9 Duty Cycle)

About 10 Hours

Frequency Stability

±2.5 PPM

Operating Temperature

-20°C~ +60°C

Antenna Impedance

50Ω

Dimensions(H*W*D)(Without Antenna)

98.3*57.7*28mm

Weight(With Antenna & Battery)

220g



Transmitter

RF Power Output

UHF:4.0W/1.0,Vhf:5.0W/1.0W

Modulation Type

F3E

Spurious and Harmonics

-36dBM<1GHz  -30dBm>1GHz

FM Noise

40/45dB

Audio Distortion

≤5%

Modulation Limiting

±2.5-12.5KHz;±5.0 -25KHz

Audio Response

+1 to -3dB



Receiver

Sensitivity

≤0.30/0.20μV

Adjacent Channel Selectivity

60/65dB

Intermediation

65dB

Spurious Response Rejection

70dB

S/N

40/45dB

Audio Power output

500mW

Audio Distortion

≤5%
