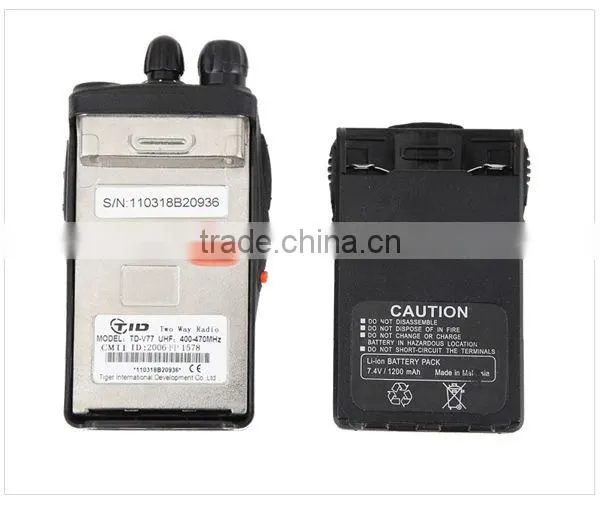

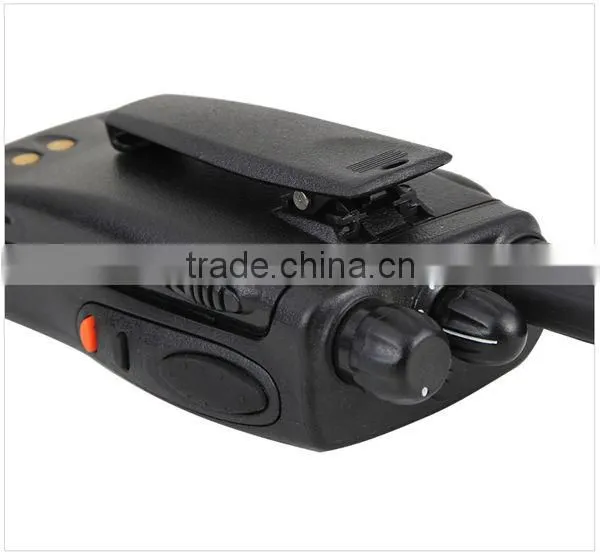

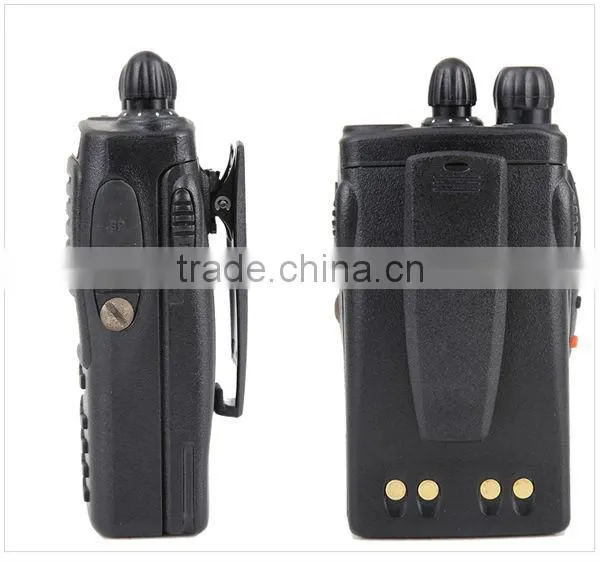

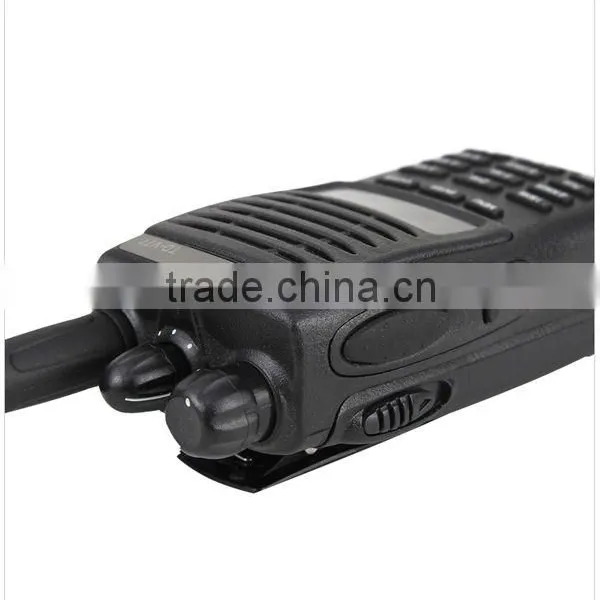

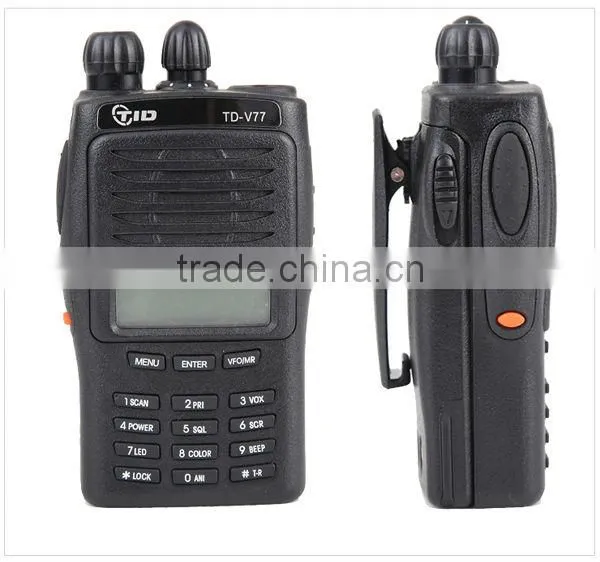

TD-V77 LCD light weight portable talking radio
Main Features:
- Tri-color backlight adjustable
- scrambler function (optional)
- Multi and priority channel scan function
- Emergency alert
- low battery alarm
- high / low power control
- channel name setting
- TOT(Time-out-timer)
- BCL(Busy channel lock)
- PC Programmable
- 12.5 /25KHz band selectable
- 50 CTCSS/104 DCS
- VOX Function
- Group calls
- DTMF code
Specifications | |
Frequency Range |
136-174MHz 245-246MHz 400-470MHz 450-520MHz |
Channel Capacity |
128 |
Channel Spacing |
5,10,12.5,20,25,30,50KHz optional |
Antenna Impedance |
50Ω |
Mode of operation |
Simplex or semi-duplex |
Operating Voltage |
7.2V |
Working temperature |
-20°C~ 60°C |
Dimension(L*W*H) |
115*60*32mm |
Weight(With Antenna & Battery) |
210g |
Transmitter | |
Power Output |
≤5W |
Current |
≤1.6A |
Maximum deviation |
≤5KHz |
Adjacent channel power |
≥60dB |
Frequency stability |
≥±2.5ppm |
Spurious radiation |
≤7.5μW |
Modulation distortion |
≤5% |
Occupied band width |
≥60dB |
Receiver | |
RF Sensitivity |
0.20μV |
Audio Distortion |
≤10% |
Audio Power |
≥500mW |
Selectivity |
≥65dB |
Co-channel suppression |
≥-8dB |
Adjacent Channel Selectivity |
≥60dB |
Audio Distortion |
≤5% |
Intermediation response |
≥55dB |
Blocking |
≥85dB |
