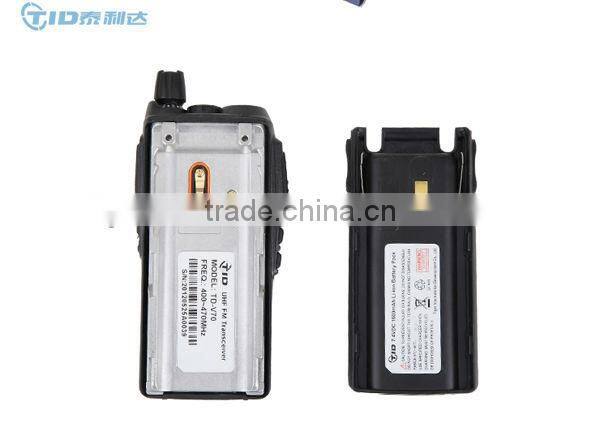

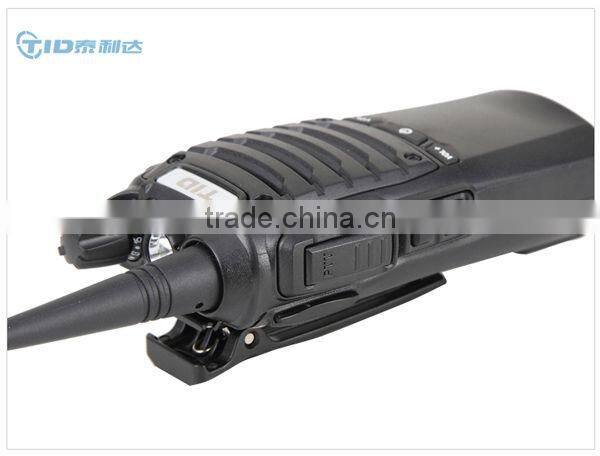

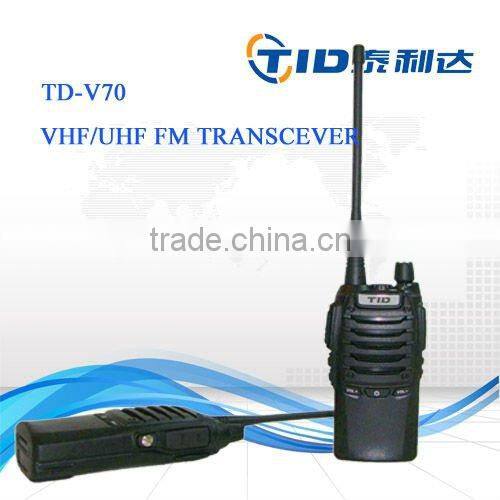

TD-V70 Long Distance Walkie Talkie With Squelch Tail Elimination Function

TD-V70 Long Distance Walkie Talkie With Squelch Tail Elimination Function thumbnail-1
TD-V70 Long Distance Walkie Talkie With Squelch Tail Elimination Function photo-1
US$ 20 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-70
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen guangzhou dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-70
Type Handheld
Dimensions 117*52*33mm
Frequency Range 136-174MHz / 400-470MHz
Storage Channel 48, 48
Talk Range 3-5KM

Specifications

TD-V70 long distance walkie talkie with Squelch Tail Elimination function
1. 1w /5w power output
2. PTT-ID BY DTMF
3. CTCSS

TD-V70 long distance walkie talkie with Squelch Tail Elimination function

Main Features:

  • Bright white LED Flashlight
  • Voice Channel/Group Annunciation
  • Voice Scrambler/Voicce Compandor
  • 51 CTCSS/214 DCS Encode&Decode
  • High/Low power switchable
  • PTT ID Encode By DTMF
  • Selective Call, Group Call
  • Remote Kill, Stun&Activate
  • Lone worker, safety check,
  • Whisper& VOX
Specifications
Frequency Range 136~174MHz  /  400~470MHz
Channel Capacity 48
Operating Voltage 7.4V LI-ION
Working temperature -20°C~+60°C
Frequency Stability ±2.5ppm
Dimension(Height×length×width) 117×52×33mm
Channel Spacing 12.5/25.0 KHz
weight 245g





Transmitter
Power output LO:1W  HI: <4W
Modulation type F3E
Spurious and Harmonics 60dB
FM Noise 40dB
Audio Distortion ≤5%
Modulation limiting ±2.5/5.0KHz
Audio response ±3 dB





Receiver
Sensitivity ≤0.30/0.20uV
Selectivity 65dB
Intermodulation 65dB
Spurious Response Rejection 65dB
S/N 45dB
Audio Power Output 700mW
Audio Distortion ≤5%

TD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination functionTD-V70 long distance walkie talkie with Squelch Tail Elimination function

TD-V70 long distance walkie talkie with Squelch Tail Elimination function
