Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > TD-M558 Tour Guide Base Station Radio Transceiver

TD-M558 Tour Guide Base Station Radio Transceiver

TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-1
TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-2
TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-3
TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-4
TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-5
TD-M558 Tour Guide Base Station Radio Transceiver thumbnail-6
TD-M558 Tour Guide Base Station Radio Transceiver photo-1
TD-M558 Tour Guide Base Station Radio Transceiver photo-2
TD-M558 Tour Guide Base Station Radio Transceiver photo-3
TD-M558 Tour Guide Base Station Radio Transceiver photo-4
TD-M558 Tour Guide Base Station Radio Transceiver photo-5
TD-M558 Tour Guide Base Station Radio Transceiver photo-6
US$ 100 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-M558
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen guangzhou dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-M558
Type Vehicle Mouted
Dimensions 160*43*143mm
Frequency Range 136-520MHz
Storage Channel 128
Talk Range More than 60 km
TD-M558 tour guide base station radio transceiver
Main features:
  • CTCSS/DCS Setting& Scanning
  • High/Mid/Low Power selectable
  • Voice compander
  • Repeater offset shift
  • DTMF/2 ton/5 tone
  • Talk around
  • Voice prompt
  • Auto Power off
  • Scrambler
Item description
Frequency range (TX) 136-174MHz
  245-260MHz
  350-370MHz
  400-490MHz
  470-520Mhz
Frequency range (RX) 136-174MHz
  245-260MHz
  350-370MHz
  400-490MHz
  470-520Mhz
Modulation mode F3E(FM)
Antenna impedance 50Ω
Rated voltage 13.8V DC ±15%
Current Transmitting    <12A
Receiving    <1.0A (Output 2W)
Frequency stability  ≤±2.5PPm
Transmitting
Output power VHF: 60W(H)   25W(Mid) 10W(Low)
  UHF: 40W(H)   25WMid) 10W(Low)
Reactance modulation   Reactance
Modulation limit 25KHz±5KH, 12.5KHz±2.5KHz
Audio distortion <5%
Adjacent channel power 25KHz≥65dB, 12.5KHz≥60dB
Stray radio frequency measure <-60dB
Modulation character 3dB~-3dB (Modulation frequency: 300Hz~3KHz)
Receiving
Circuitry Adopt quadratic frequency conversion superheterodyne mode
Mid-frequency (1st/2nd) 49MHz/450Khz
Sensitivity 25KHz<0.2μV, 12.5KHz<0.25μV
Selectivity minus 6dB  25KHz<12KHz, 12.5KHz<10KHz
minus 60dB 25KHz<30KHz, 12.5KHz<24KHz
Same channel restrain >-8dB
Adjacent channel selective 25KHz≥65dB, 12.5KHz≥60dB
Stray response anti-interference 25KHz≥65dB, 12.5KHz≥60dB
Intermodulation anti-interference 25KHz≥60dB, 12.5KHz≥55dB
Blocking ≥90dB
Audio response 1dB~-3dB (Modulation frequency: 300Hz~3KHz)
Audio distortion <5% (>2W)(Microphone internal resistance is 8Ω
Modulation limit

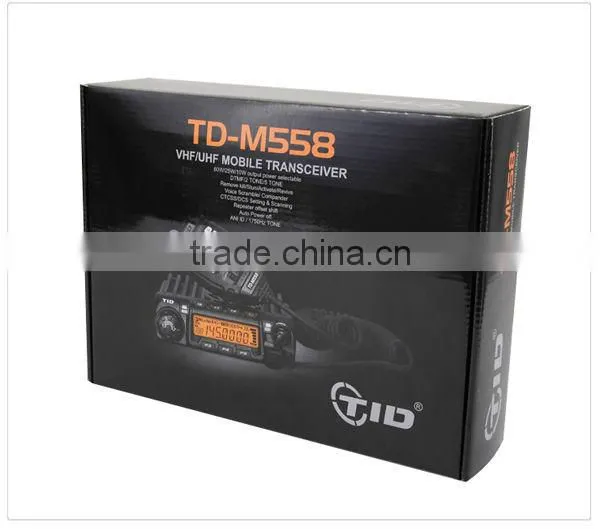

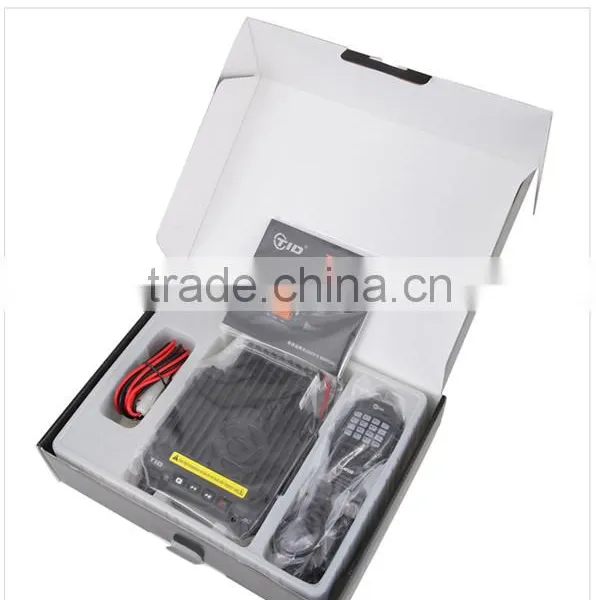

Item pictures
TD-M558 tour guide base station radio transceiverTD-M558 tour guide base station radio transceiverTD-M558 tour guide base station radio transceiverTD-M558 tour guide base station radio transceiverTD-M558 tour guide base station radio transceiverTD-M558 tour guide base station radio transceiver
TD-M558 tour guide base station radio transceiver

Payment Terms:

1. 100% T/T Advance

2. Western Union

3. Sample by paypal

Shipping Terms:

1.EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai

 Shipping Method:

The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…

 Lead time:

 Most of our products have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.

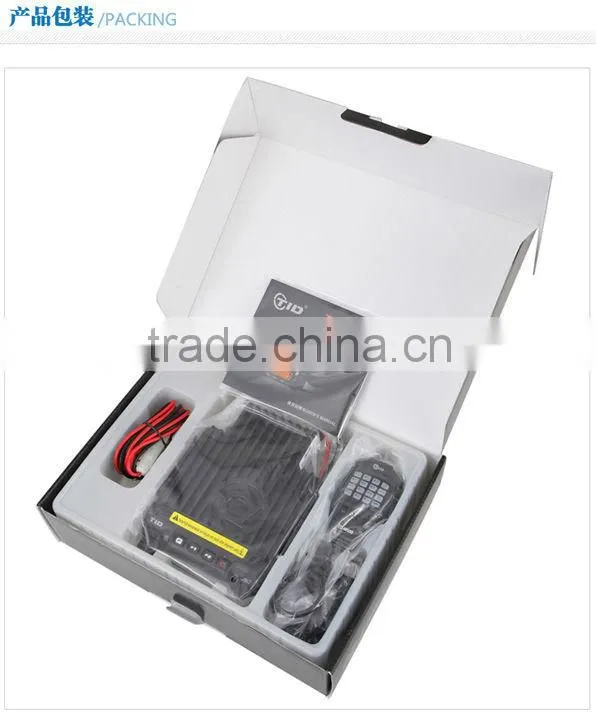

 Packaging :

 Unique packaging with durable, environmental , beauty design character (plastic bag color gift box) .
