IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie

IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-1
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-2
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-3
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-4
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-5
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie thumbnail-6
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-1
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-2
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-3
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-4
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-5
IP67 Standard 5watts Waterproof Two Way Radio Walkie Talkie photo-6
US$ 25 - 45 MOQ: 1 Parcel
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TID-V90
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou xiamen dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TID-V90
Type Handheld
Dimensions 99*48*29mm(without antenna)
Frequency Range VHF:136-174MHz ,UHF:400-470MHz ,450-520MHz
Storage Channel 48 channels by voice annunciation
Talk Range 3-5km under empty environment

IP67 standard 5watts waterproof two way radio walkie talkie

IP67 standard 5watts waterproof two way radio walkie talkie



TD-V90 walkie talkie 48channel professional handset radio transceivers

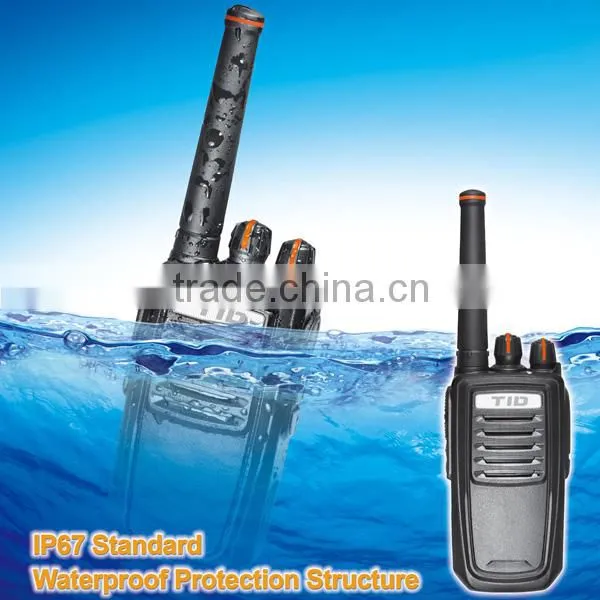

  • IP67 standard waterproof protection structure
  • Two way radio 48 channels ,3 Groups by voice annunciation
  • Two way radio 51 CTCSS /214 DCS Encode & Decode
  • Two way radio voice scrambler /voice compandor
  • Two way radio voice channel / Group annunciation
  • Two way radio Multi channel scan
  • Two way radio voice operated transmit VOX
  • Two way radio Emergency Alert



IP67 standard 5watts waterproof two way radio walkie talkie



 IP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkieIP67 standard 5watts waterproof two way radio walkie talkie

Main Features

  • 48 channels ,3 Groups by voice annunciation
  • 51 CTCSS /214 DCS Encode & Decode
  • voice scrambler / voice compandor
  • voice channel / Group Annunciation
  • voice battery gauge
  • IP67 standard waterproof protection structure
  • High / low power switchable
  • PTT ID Encode by DTMF
  • Multi channel scan
  • Programmable 25kHz /12.5kHz Channel spacing
  • squelch tail elimination
  • talk around
  • voice operated transmit VOX
  • whisper
  • emergency alert



1). Specification of Professional small walkie talkies ( TD-V90)

1). Frequency Range

VHF:136-174MHz ,UHF:400-470MHz ,450-520MHz

2). Channel Capacity 48
3). Channel Spacing 12.5 /25.0KHz

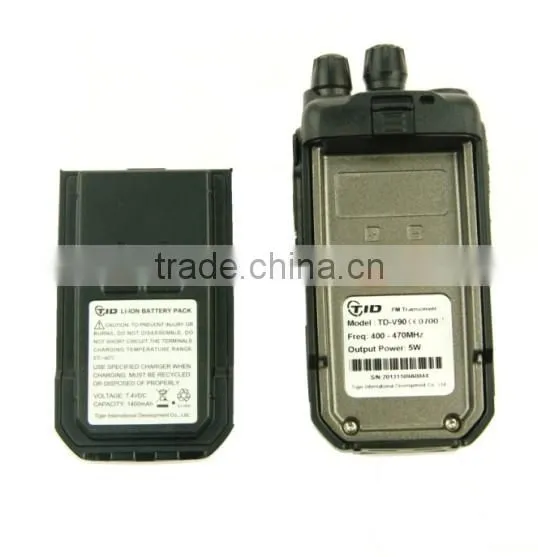

4). Operation Voltage 7.4V Li-ion
5). Battery Capacity 1400mAh(Li-Ion)
6). Battery Life(5-5-90 Duty Cycle) 11Hours
7). Frequency stability ±2.5ppm
8). Operating Temperature -20~+60 °c
9). Antenna Impedance 50 Ω
10). Dimension(H*W*D)(Without Antenna) 99*48*29mm
11). Weight(With Antenna & Battery) 220g



2).Accessories

1).Battery Pack 1 set
2.Antenna 1 set
3).Charger 1 set
4).AC Adapter 1 set
5).Belt Clip 1 set
6).Hand strap 1 set



IP67 standard 5watts waterproof two way radio walkie talkie

3).Transmitter

1). RF power output UHF:4.0W /1.0W ,VHF:5.0W /1.0W
2). Modulation type F3M
3). Spurious and harmonics -36dBm<1GHz ; -30dBm>1GHz
4). FM Noise 40 /45dB
5). Audio Distortion ≤5%
6).Audio Response +1 to -3dB
7).Modulation distortion ≤5%



4).Receiver

1). RF Sensitivity ≤ 0.30 /0.20μV
2). Adjacent channel selectivity 60 / 70dB
3). Intermodulation 65dB
4). Spurious response rejection 70dB
5. S/N 40 /45dB
6). Audio power output 500mW
7).Audio Distortion ≤5%



IP67 standard 5watts waterproof two way radio walkie talkie

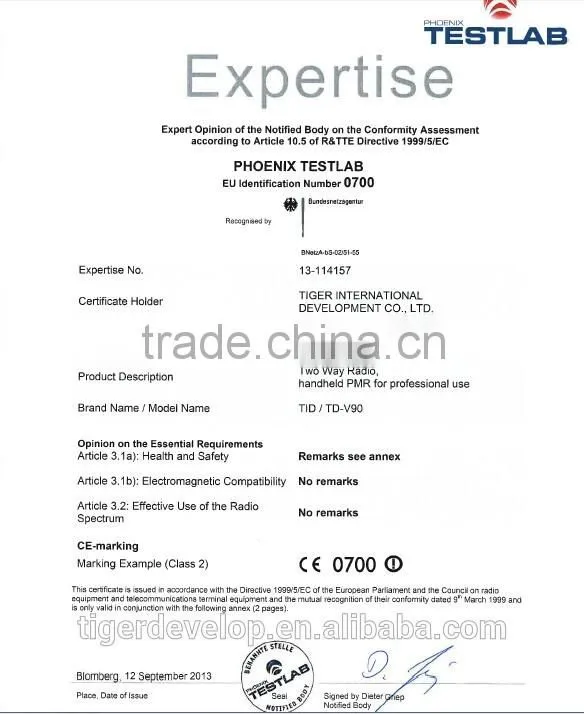

CE certificate

 IP67 standard 5watts waterproof two way radio walkie talkie



5). Payment Terms

1. 100% T/T Advance

2. Western Union

3. Sample by paypal



6).Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai



7).Shipping Method



The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…



8).Lead time:



Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.



9).Packaging :



Unique packaging with durable ,environmental , beauty design character (plastic bag +color gift box) .



If you have any question please feel free to send us message or call us directly , you are welcome to know more Information from us of radio .
