350MHz 5W 1200mAh Ham Transceiver TD-V36

350MHz 5W 1200mAh Ham Transceiver TD-V36 thumbnail-1
350MHz 5W 1200mAh Ham Transceiver TD-V36 photo-1
US$ 40 - 60 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V36
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Hongkong/Guangzhou/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V36
Type Other, Handheld, Property Two-way radio
Dimensions 101*54*34mm
Frequency Range 136-174MHz/400-430MHz/440-470MHz
Storage Channel 16
Talk Range 3-10km

Specifications

350MHz 5W 1200mAh Ham transceiver TD-V36
1.350-390MHz ham transceiver
2.H/L power switchable.
3.50CTSC/104CDCSS

350MHz 5W 1200mAh Ham transceiver TD-V36

350MHz 5W 1200mAh Ham transceiver TD-V36



Main functions:

  • 16 channels
  • Voice channels annunciation
  • High / Low power switchable
  • 50 CTCSS / 104 DCS encode & decode
  • Auto battery save
  • Low battery alert
  • Busy channel lockout
  • Time out timer
  • Emergency Alarm
  • Monitor

Specifications :

Frequency Range 136~174MHz  /  400~430MHz  / 440~474MHz
Channel Capacity 16
Operating Voltage 7.4V LI-ION
Working temperature -20°C~+60°C
Frequency Stability ±2.5ppm
Dimension(Height×length×width) 100×55.5×31mm
weight 200g

Transmitter
Power output LO:1W  HI:5W
Modulation type F3E
Spurious Radiation <-60dB
Adjacent Channel Power >65dB
Modulation Limitation ±5KHz
Modulation Distortion ≤5%
Signal Noise 40dB
Modulation Function ±3dB

Receiver
Sensitivity 0.20µV
Adjacent Channel Sensitivity 65dB
Spurious Response Rejection 65dB
Audio power 500mW
Audio Distortion ≤5%
Scrambler Inter-switchable ≥60dB

Packing
Size 26*19.5*6cm
Weight 0.55kg

Pictures:

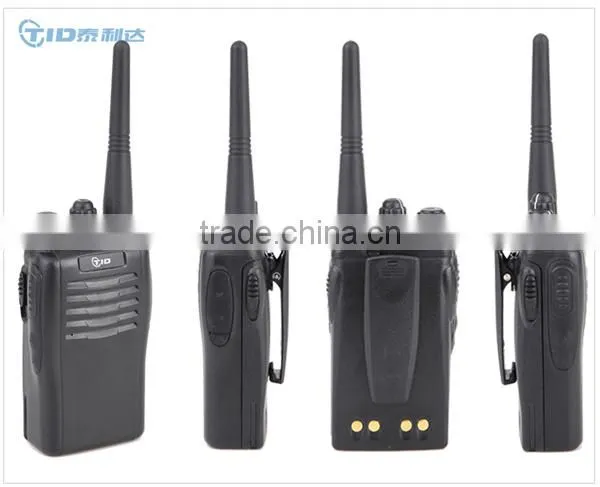

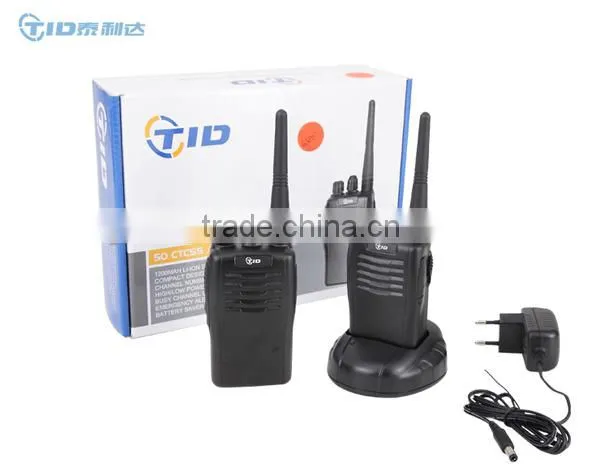

350MHz 5W 1200mAh Ham transceiver TD-V36

350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36350MHz 5W 1200mAh Ham transceiver TD-V36
