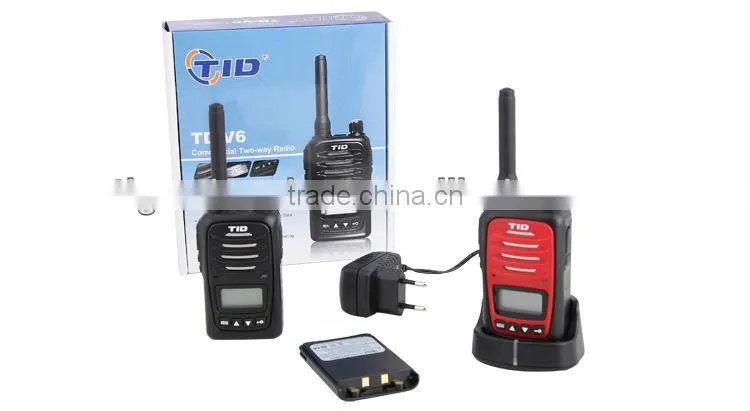

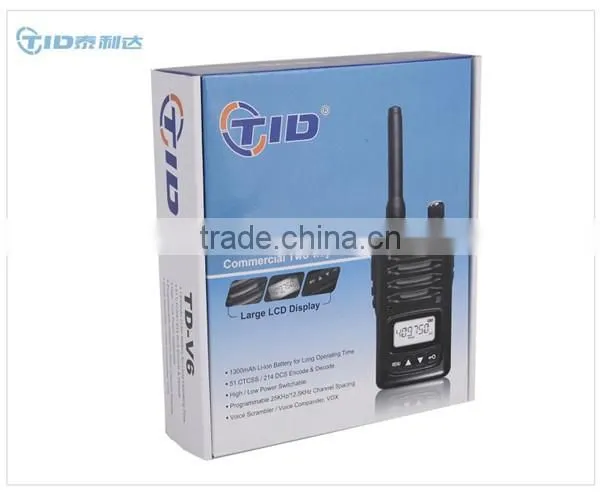

Pmr 446 Small Mini Two Way Radio Transceiver

Pmr 446 Small Mini Two Way Radio Transceiver thumbnail-1
Pmr 446 Small Mini Two Way Radio Transceiver photo-1
US$ 20 - 37 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
LPD-433
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen guangzhou dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number LPD-433
Type Handheld
Dimensions 90*52*29mm
Frequency Range 433-434MHZ
Storage Channel 100
Talk Range 5-10km

Specifications

pmr 446 small mini two way radio transceiver
1.Large LCD Display
2.High/Low Power Switchable
3.5 DTMF PTT ID Lis

pmr 446 small mini two way radio transceiver

pmr 446 small mini two way radio transceiver

Item description

Frequency Range

433-434MHz
Channel Capacity 100
Channel Spacing 12.5 /25.0KHz
Operation Voltage 3.7V Li-ion
Battery Capacity 1300m/1900Ah(Li-Ion)
Battery Life(5-5-90 Duty Cycle) 11/17Hours
Frequency stability ±2.5ppm
Operating Temperature -20~+60 °c
Antenna Impedance 50 Ω
Dimension(H*W*D)(Without Antenna) 99*52*29mm
Weight(With Antenna & Battery)

185g



1). RF power output 2.0/1.0/0.5/0.01w
2). Modulation type F3E
3). Spurious and harmonics -36dBm<1GHz ; -30dBm>1GHz
4). FM Noise 40 /45dB
5). Audio Distortion ≤5%
6).Audio Response +1 to -3dB



1). RF Sensitivity ≤ 0.30 /0.20μV
2). Adjacent channel selectivity 60 / 65dB
3). Intermodulation 65dB
4). Spurious response rejection 65dB
5. S/N 40 /45dB
6). Audio power output 700mW
7).Audio Distortion ≤5%



Accessories

Battery Pack 1 set
Antenna 1 set
Charger 1 set
AC Adapter 1 set
Belt Clip 1 set
Hand strap 1 set

 pmr 446 small mini two way radio transceiver



pmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiverpmr 446 small mini two way radio transceiver
