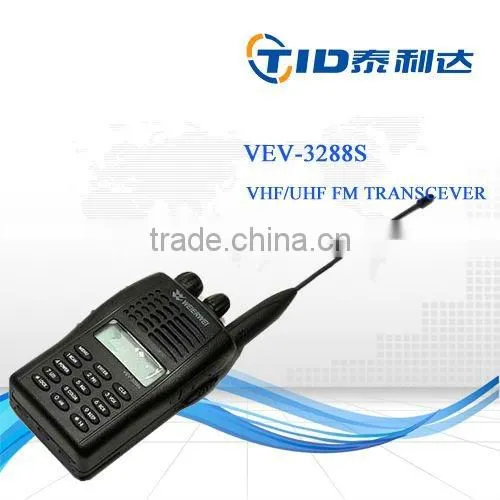

VEV 3288S High Performance Wireless Intercom Transceiver

VEV 3288S High Performance Wireless Intercom Transceiver thumbnail-1
VEV 3288S High Performance Wireless Intercom Transceiver photo-1
US$ 30 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
VEV
Model Number:
TD-V77
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Hongkong/Guangzhou/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name VEV
Model Number TD-V77
Type Other, Handheld, Property Two-way radio
Dimensions 117*52*33mm
Frequency Range 136-174MHz / 400-470MHz
Storage Channel 128
Talk Range 3-10km

Specifications

VEV 3288S high performance wireless intercom transceiver
1.128 group channe
2.50 CTCSS/104 DCS
3.Three color LCD backling

VEV 3288S high performance wireless intercom transceiver

VEV 3288S high performance wireless intercom transceiver

Description:

  • 128 Groups of memory channels
  • Built-in 50 Groups of CTCSS and 104 Groups of DCS
  • Wide(25kHz) and Narrow(12.5kHz) available
  • Come with 1200mAh Li-ion battery
  • Input Freq. By using keypad?? Display? Tag funtion
  • VOX built-in
  • Scan function
  • Three color LCD backlight display
  • Emergency Alarm
  • Programmable by PC (interface cable is not include)
  • Bell ring when receiving signal
  • Priority Scan Function
  • Adjust RF output power Hi/Lo
  • Switching between Channel/Freq.
  • Adjust squelch level(0-9)
  • Busy channel lockout
  • Keypad lock ,TAG funtion

Specifications:

Frequency Range

VEV-3288s(U)400-470MHz
Channels
128
Channel Steps
5k,10k,6.25k,12.5k,25k
Power Supply
7.2V 1200mah LI-ion
Operating Temperature
-20 ~ +60
Communication Range
3 ~6km
Dimension (H x W x D)
100 x 55.5 x 31mm
Weight
225g
Receiver? RX
Sensitivity
<0.20
Selectivity
65dB
Intermodulation Rejection
60dB
AF Output
500mW
Standby Current
35mA
Transmitter TX
Power Output
5W
Modulation Type
F3E
Spurious Emission
< -65dB
Transmit Current
1300mA/750mA
Max. Deviation
±5kHz
Modulation Distortion
< 5%
Frequency Stability
±2.5ppm



Package:

  • Antenna
  • Battery
  • Ac Charger
  • Manual
  • Belt Clip

VEV 3288S high performance wireless intercom transceiver
