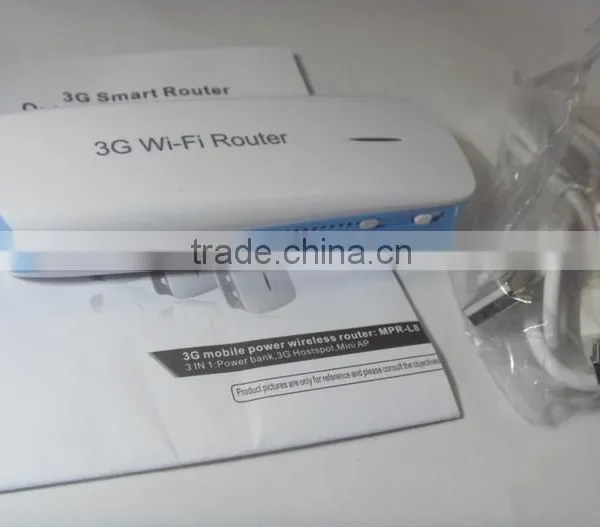

Smallest protable wireless 3G wifi router 3g portable wireless wifi router

Smallest protable wireless 3G wifi router  3g portable wireless wifi router

Specifications

1*3G Router

1*Micro USB cable

1*Quick Installation Guide

2.1 Wi-Fi Management:

a)Setting wi-fi SSID

Click the wireless>wi-fi settings,enter desire wi-fi SSID at network Name(SSID)then click Apply.

b)Forget Wi-Fi password or SSID

Load Factory Default settings by clicking Admin>settings>Load Default Button.Alternatively, user may press the reset button from the button of the device for more than 5seconds,a reboot will be happening.It will no need password for WiFi access.

C) Setting Security Method

Wi-Fi default security method is Disable.Please make sure that the router’s encryption method is same as the device or PC Encryption method if want to configure the security method, click Wireless >Security>Security mode.

Select security,same as the PC or WiFi Device.Please make the number of the passwords in 8-64bits.

2.2 Manual APN

Firstly setting”3G” mode: Internet>WAN Network>WAN Connection Type>3G,then select “Manual APN”>fill in APN information accordingly and press”Apply”

3.Computer Setting

Establish Network Connection

Step1:Open computer’s wireless network connection,set the computer to “automatically obtain IP address” and “automatically obtain DNS server address.”

Step2:Make sure you PC have WI-FI status in “ON” condition.When WI-FI connected,click“Refresh network list”,select the router’s wireless network name in the “Wireless Net work Connection” page

Note1:if your computer or device doesn’t have Wi-Fi Funcation, Please use RJ45 cable to Connect your Wi-Fi device or PC with 3G Router through LAN port.

Note2:if can’t sure the successfully,then need to go step3.

Step3:Open the web browser and input address 192.168.169.1.Press enter

Hardware installation steps

Step 1 insert the 3G SIM Card into USB Modem

Step 2 insert the 3G USB Modem to the M1 usb port

Step 3 Supply power to M1

Step 4 Make the computer connect the WI-FI SSID of M1 (see 4 computer setting)

Step 5 then you could surf

If you could not surf, Pls do following operations

Step 1 Open a browser and enter http://192.168.169.1 at address bar

Step 2 Enter login credential with password as “admin”

Step 3 Click internet>WAN Network Make sure that the 3G mode is being selected in WAN Connection Type>Select Auto Apn> Apply#3

Installation Steps

Step1 Connet LAN port of ADSL Modem and WAN/LANport of M1 Router by R145 cable

Step2 Turn on the power of ADSL Modem and supply power to M1

Step3 Make the computer connect the WI-Fi SSID of AIS (see 4. Computer setting

Step 4 Open a browser,login with password “admin”,then input relevant ADSL login credential (ID and password ) in the pop up menu

Step 5.then you could surf

Specifications
1.Portable mobile charger, 3G Hotspot & Mini AP(3in1)
2.Can connect via Cable/DHCP/ADSL Modem
3.Can connect via 3G USB Modem

 Specification

3G wireless router of mobile power: MPR-L8
3in1: As a Portable mobile charger, 3G Hotspot & Mini AP
Can connect via 3G USB Modem
Can connect via iPhone
Can connect via Cable/DHCP/ADSL Modem
Can connect via WIFI Hotspot

Features
Battery  Built-in 1800mAh rechargeable Li-polymer battery, last up to 4 hours of normal usage.
Power Bank Supplier power to mobile phone via USB.
Automatically recognize ADSL/DHCP and WAN/LAN without any preset profile.
Complies with IEEE802.11b/g/h Standards and data speed rate up to 150Mbps
Compatiable with HSDPA/HSUPA/HSPA+, CDMA EVDO Rev A/B USB Modem.
Auto Access Point Name(APN), Dial-up 3G/4G automatically.
iPhone tethering connects iPhone and shares internet connectivity, support wifi access.
Plug and play, no need install any software
Wifi support up to Max User amount is 20 users
Dimensions  95x 35x 14 mm
Weight  100g
