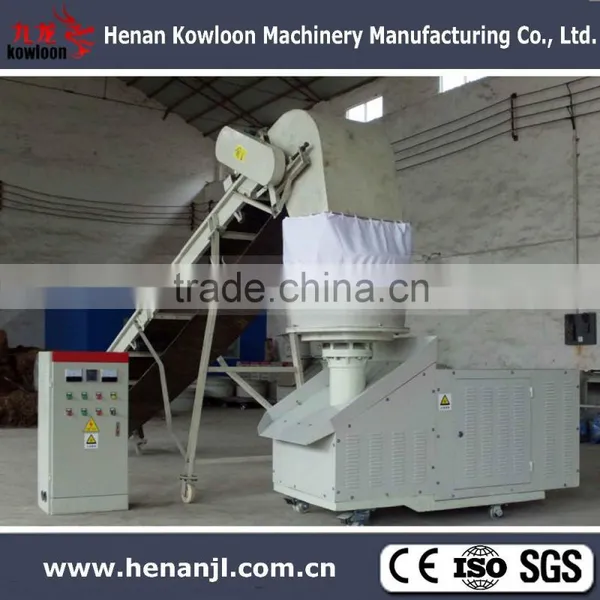

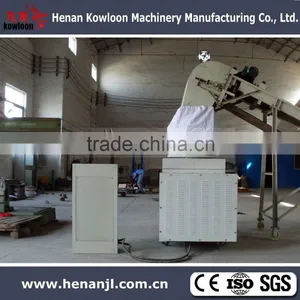

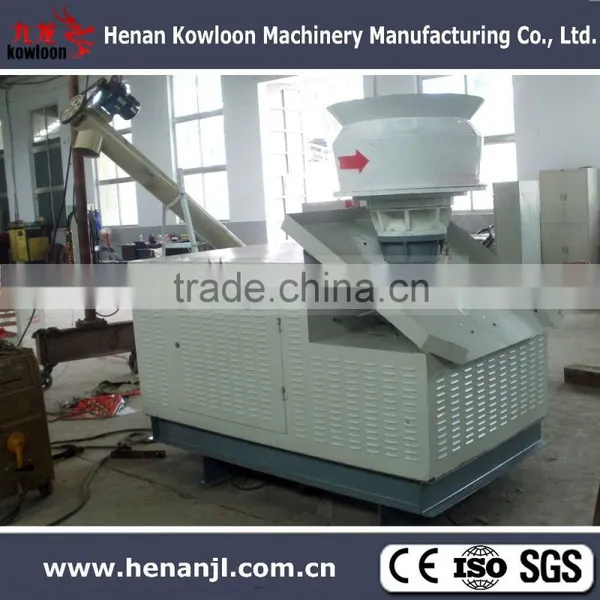

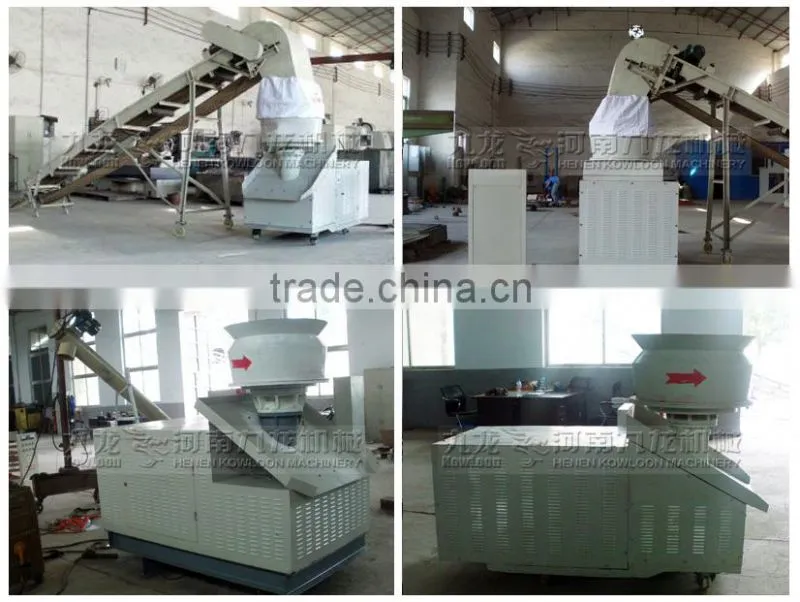

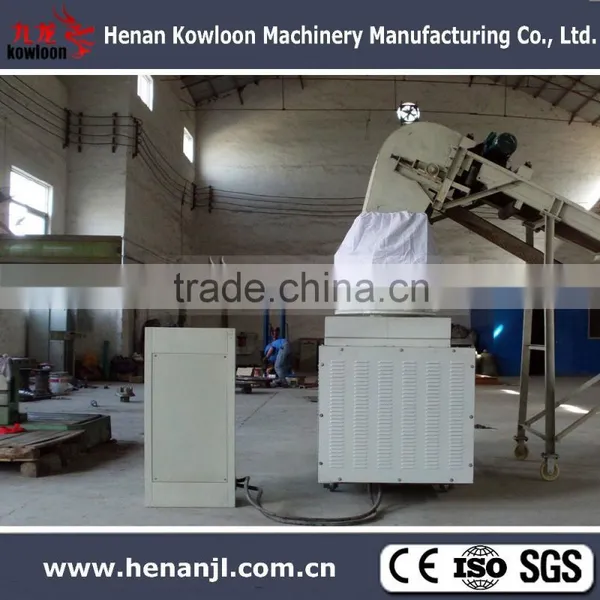

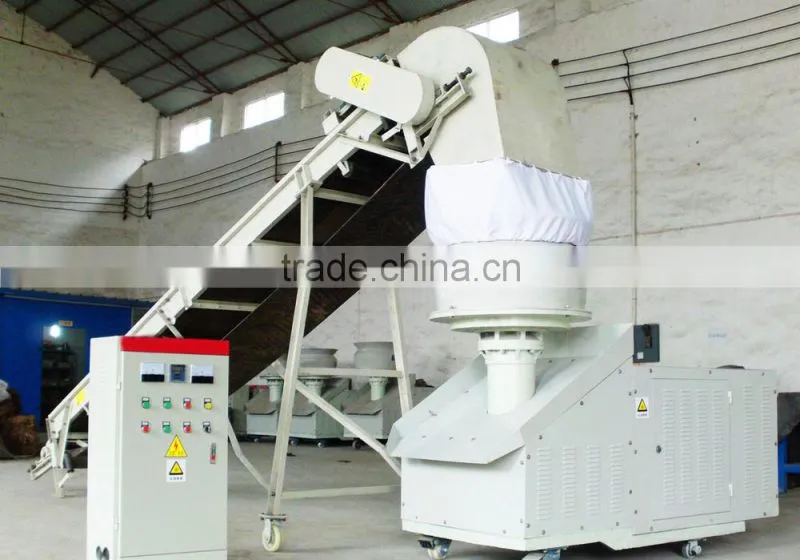

china flat die type pellet machine
Introduction:
1. Function: convert biomass raw material andsolid waste into energy fuel with high density. It is a special equipment of compressing such materials into big pellet or blocks.
2.This equipment is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.
3. Widely used in household stove, heating furnace, hot water boilers , industrial boilers, etc.
4. The machine has advantage of simple structure, easy operation, high automation, and less labor.
5. Well adaptable: it could put all kinds of raw material into molding machine (If larger, crusher should be used).
6. High Automation: 3 workers are enough to operate all the process.

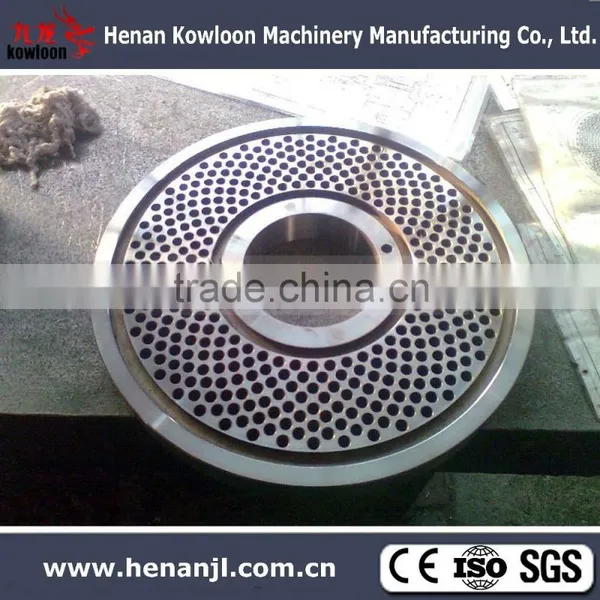

7. Through changing flat mold to get cylinder shape or cube block.

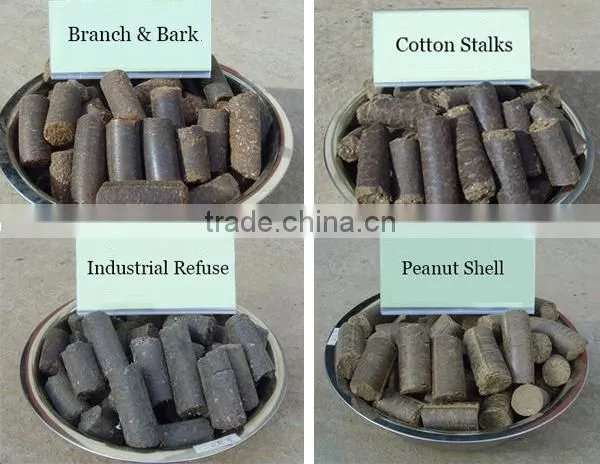

Raw material range:
the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc
Raw material range:
the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc
JLMX Flat-die pellet machine (pellet diameter 30-33mm) | |||||
Model |
JLMX-4 |
JLMX -5 |
JLMX-6 |
JLMX-7 |
|
Power |
22kw |
30kw |
37kw |
45kw |
|
Output |
300-500 |
300-600 |
500-1000 |
600-1500 |
|
Dimension |
2000*900*1800 |
2000*900*1800 |
2500*1000*1900 |
2500*1000*1900 |
|
Weight |
1300kg |
1500kg |
1800kg |
2000kg |
|
Raw material & Finish product |

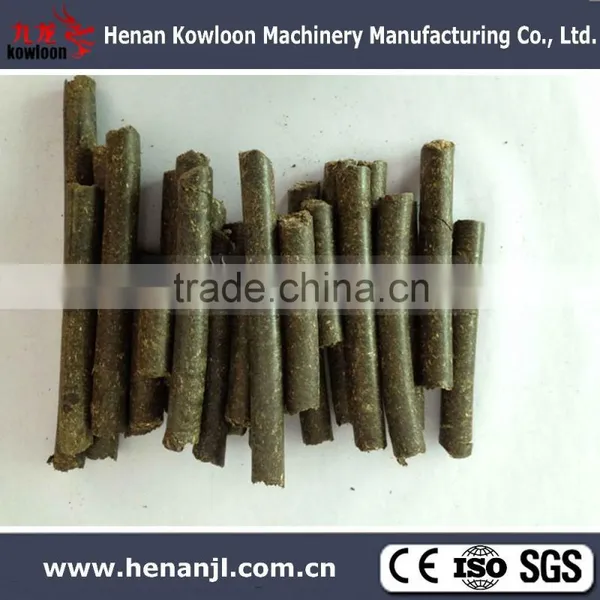

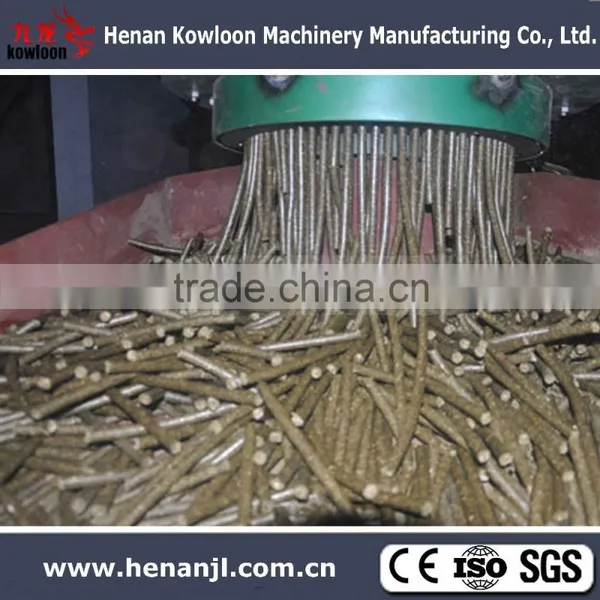

Raw material: length 3-50mm, water content: 15-30% Finished pellet: ¢30-33mm (cylinder shape), density 0.9-1.4g/cm3, thermal energy of pellet: 3500-5500kcal |
||||
Company Introduction:
Kowloon was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 29years experience on manufacturing wood processing machinery and construction machinery.
By 2015, Kowloon machines were approved by CE, BV, SGS and ISO certificates, exported to more than 30 countries and share market in worldwide, owns two oversea distributors and after-sale service center and now still growing continiouly.
Kowloon machines adopts advanced technologied parts, design and craft, united technology from USA,Germany, Japan and Australia, not only suits chinese market and woods, as well as different materials and countries. Kowloon support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line in China or abroad, under the support of internal business department, Kowloon is able to take “Turn-Key” projects in China or abroad.
Kowloon never stop on improving and researching, in past 29years, 80% traditoinal products get improved and various of new products were developed based on traditional technology, such mobile type, diesel wood chippers, heavy-duty shredders, wood pallet crusher…etc, more and more machines become popular in chinese and abroad market, won a good reputation and coorporate image, for better meets the worldwide market, Kowloon accpet requests to customize machines according to users’ demond, welcome to inquiry us with detailed requirements, all Kowloon people would offer best and all possibility!
