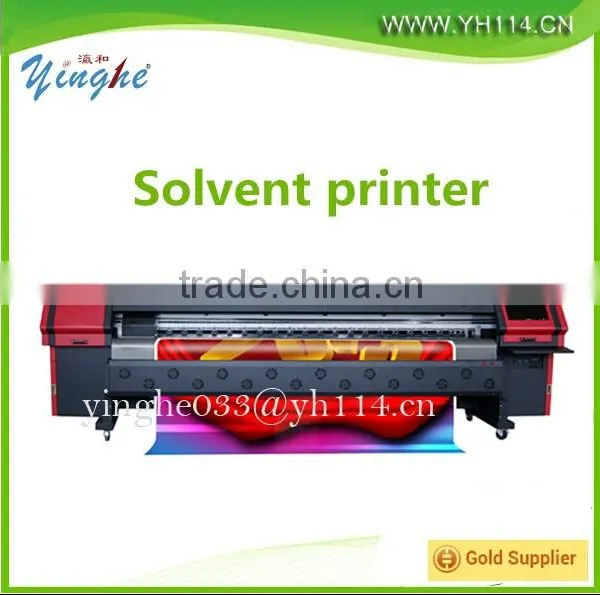

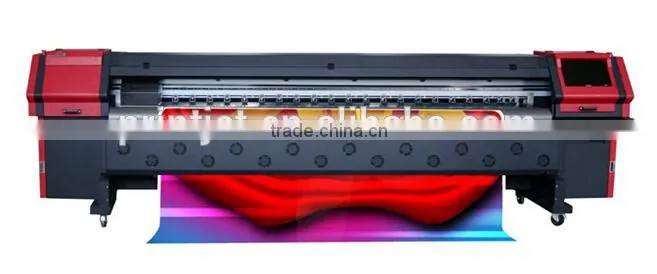

Hot Sale Wide Solvent Printer

Name: Hot Sale Wide Solvent Printer
Brand: Yinghe
SKU: 122768897

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Other, roll printer

Place of Origin:

Guangdong, China

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, roll printer

Place of Origin Guangdong, China

Brand Name Yinghe

Model Number YH-TS1000

Usage Other, roll printer

Automatic Grade Automatic

Voltage 220v

Dimensions(L*W*H) 4840mm(L)x1000(W)x1340mm(H)

Weight 740KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Description

S series, the highest cost-effective machine, equiped with SPT510/1020 series high yield printhead,

112 square meters each hour production, combined with fiexible printhead, 4 head, 8 head, switched arbitrary.

Technical Parameter

Model		S Printer YH-TS1000
Printhead type		SPT-510/35PL	SPT-510/50PL	SPT-1020/35PL
Quantity of Printhead		8	8	4	8
Printhead combination		2*4	2*4	1*4	2*4
Print width		3200mm
Print speed	High	112sqm/h	130sqm/h	78sqm/h	175sqm/h
	Medium	82sqm/h	102sqm/h	68sqm/h	144sqm/h
	Standard	74sqm/h	94sqm/h	51sqm/h	96sqm/h
Ink	Type	Solvent Ink
	Color	C M Y K

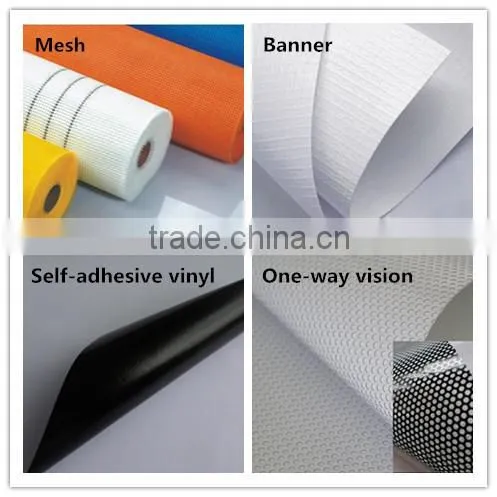

Media Type		Viny, flex, polyester, backlit, window film, etc
Ink Supply		Automatic ink supply based on alarming of low ink lever in sub-tank
Maintenance of Printhead		One button cleaning printhead by solvent, 4 color positive pressure ink injecting
Rip Soft		Ultraprint, Photoprint 10
Data Interface		USB 2.0
Assistant Option	Auto Feeding and Take up system	Infraed-detecting, feed and take up system
	Heating system	Three stage heating system include back, front heating
	Carriage height	2-5mm distance to the printing platform, adjustable
	Other functions	Light for carriage position and platform
Operation Voltage		AC220V 50/60HZ
Power		Print system: 500w Heating system: Front heating 500w/Rear heating 500w/Back heating 1000w
Workng environment		Temperature: 22-28°C Humidity:40%-70%
Printer size		4840mm(L)1000(W)1340mm(H) 520kg±15kg
Shipping size		5320mm(L)1040(W)1480mm(H) 740kg±15kg
Note:The above print speed may have error because of different comuters and different medias.Please be subjected to the practical speed.
