PS2 HEAVY DUTY
VOLVO, SCANIA, MAN, IVECO
MERCEDES BENZ,ISUZU,MACK
COMMINS,HINO,FUSO, DAF
Renault, ERF,SINOTRUCK,NISSAN UD

S2 HEAVY DUTY SCANNER

PS2 HAEVY DUTY can diagnose VOLVO, SCANIA, MAN, IVECO,MERCEDES BENZ,ISUZU,MACK, COMMINS,HINO,FUSO, DAF, Renault , ERF,SINOTRUCK,NISSAN UD



1. diagram of PS2 mainframe appereance

A. Front-View Figure



B. Back- view Figure



C. the upward-side connection of the mainframe:





1. Power switch: Uses for starting and closing of main engine
2. USB connection: Uses this connection to carry on the data synchronization with PC.
3.VGA connection: Uses this connection to link the external monitor (800×600 pixels)
4. Main test connection: Uses the testing line to carry on the vehicles diagnosis.
5. power connection: Uses for the exterior power supply
6. touching pen: Uses in clicking on the touching-screen.

D. the lower-side connection of the mainframe :







1. serial port: Uses in the main body debugging.
2.2SD card slot: uses for SD card
3. paper outlet: use for mini printer



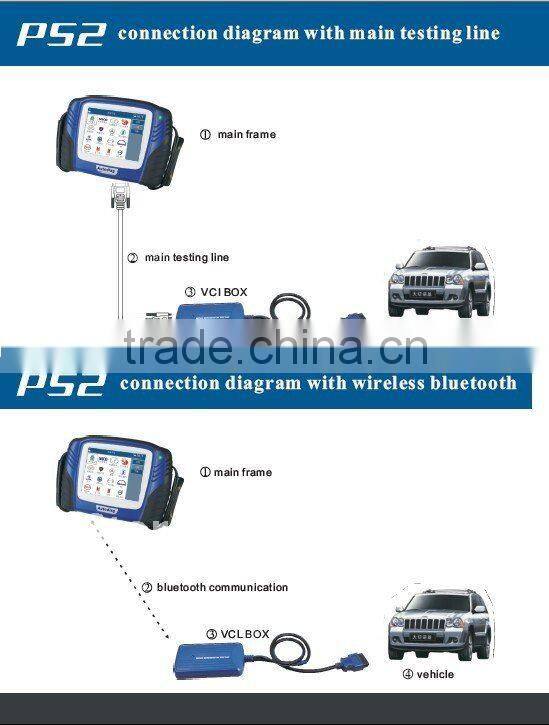

E. Schematic diagram of VCI diagnostic box:



2. PS2 technical parameters:
1. operating system: WINCE 5.0 operating platforms
2. CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
gramming memory: FLASH 64M ,supports SD card slot-in and slot-out
4.mainframe battery: rechargeable battery 3500m/Ah
5.mainframe power supply: DC12V/24V
6.mainframe power: 25W
7.printer: Mini high-speed thermal sensitive printer
8.screen: 8 inches real-color touch-screens, 800×600 with LED back-light
9.relative humidity: <90%, temperature: -20-50°C
10.wireless communication: blue-teeth

3. Package parameters:

1.machine composition: mainframe with SD card, touching pen, testing adapters, group of lines, SD card adaptor, operation manual and outside suitcase
2.overall size: 305.2×215.2×85mm
3.weight: 8KG



4. PS2 software V5.0 of testing function list file and PS2 heavy duty  packing list file
