Specifications
ps2 heavy duty can diagnoseVolvo,scania,man,iveco,mack,
mercedes bens,isuzu,commins,hino ect
PS2 Heavy duty trucks scanner.
Easy handle operate system can save your time to diagnostic trucks, and show more details of DCTs (trouble code) as well.

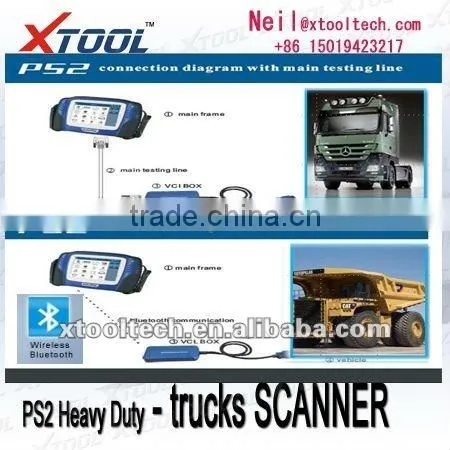

Bluetooltooth Connection between PS2 HD mainframe and VCI box can offer you a enough place to diagnostic trucks, as 100 meter bluetooth.
8 inch touch LCD prides you a good view of diagnostic information and easy to handle by most Truck repair technician.....
PS2 Heavy Duty trucks scanner software

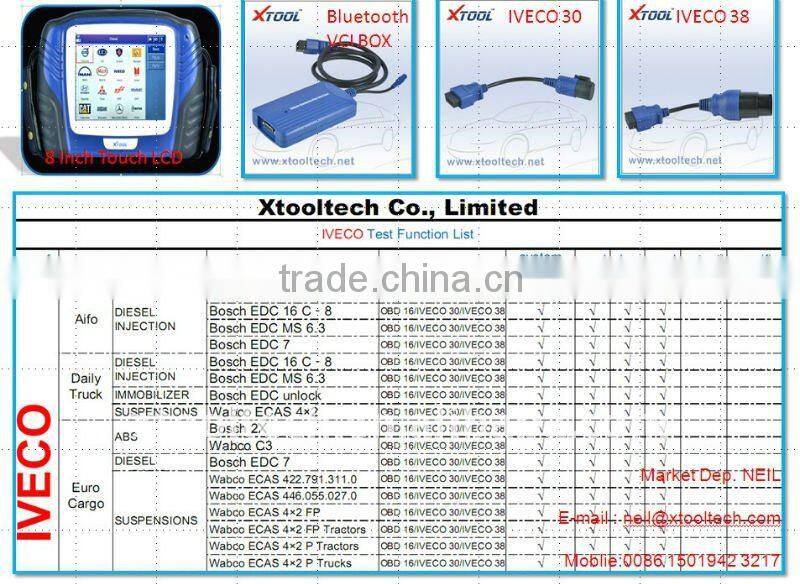

30 Kinds of trucks software : PS2 Heavy Duty Universal Diesel Truck diagnostic tool (English Vision) the newest software for 2012.04
Chinese truck : Dongfeng, JAC, Foton, KengLong, YUTONG, FAW, ShanQi, BEIBEN, Sino truck, and CUMMINS Engine
Asia truck: Hino,Fuso, Hyundai, UD,Isuzu
Europe truck: Mack, Volvo, Man, SCANIA, Mercedes-Benz,IVECO, DAF,Brenach,stra,
America truck: CAT, Detroit Engine
and OBD I and OBD II truck
Main Funtion: Read/Clear DTCs and Read Data and ECU systerm, and wirte QR for injecter

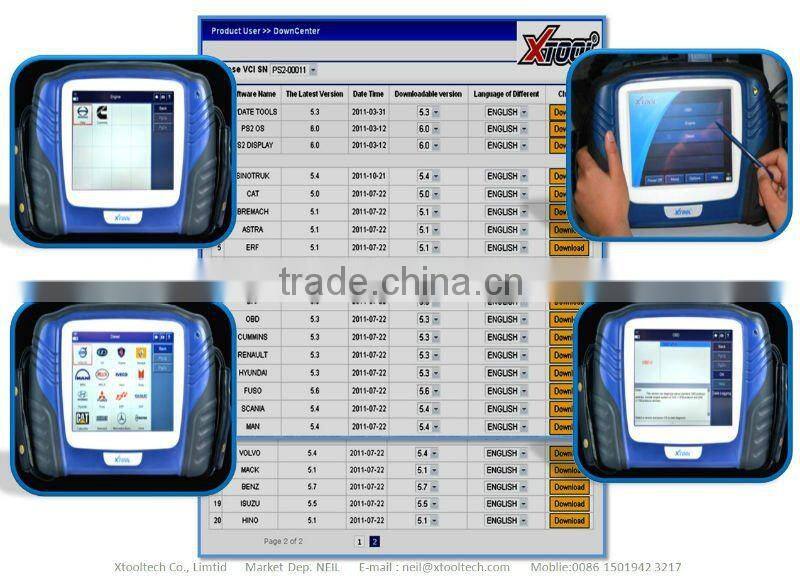

2 years online update for free, 1 years of warranty
1. diagram of PS2 mainframe appereance

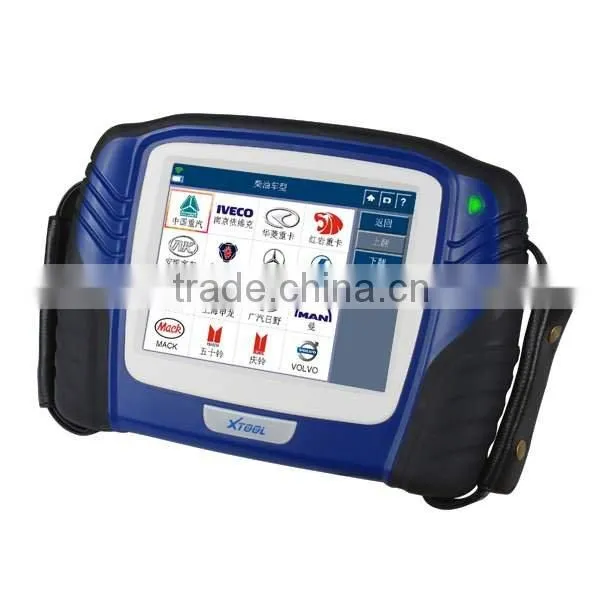

A. Front-View Figure

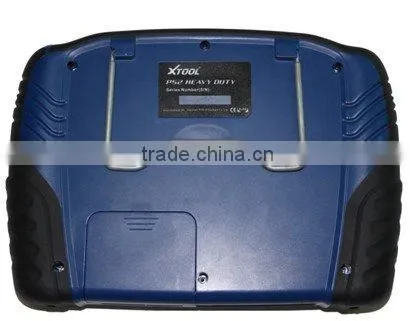

B. Back- view Figure

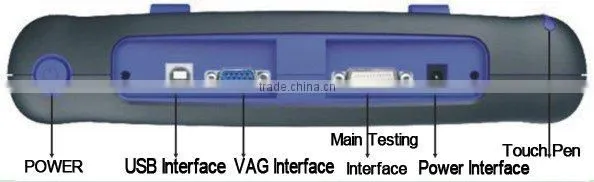

C. the upward-side connection of the mainframe:
1. Power switch: Uses for starting and closing of main engine
2. USB connection: Uses this connection to carry on the data synchronization with PC.
3.VGA connection: Uses this connection to link the external monitor (800×600 pixels)
4. Main test connection: Uses the testing line to carry on the vehicles diagnosis.
5. power connection: Uses for the exterior power supply
6. touching pen: Uses in clicking on the touching-screen.
D. the lower-side connection of the mainframe :
1. serial port: Uses in the main body debugging.
2.2SD card slot: uses for SD card
3. paper outlet: use for mini printer
E. Schematic diagram of VCI diagnostic box:
2. PS2 technical parameters:
1. operating system: WINCE 5.0 operating platforms
2. CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
gramming memory: FLASH 64M ,supports SD card slot-in and slot-out
4.mainframe battery: rechargeable battery 3500m/Ah
5.mainframe power supply: DC12V/24V
6.mainframe power: 25W
7.printer: Mini high-speed thermal sensitive printer
8.screen: 8 inches real-color touch-screens, 800×600 with LED back-light
9.relative humidity: <90%, temperature: -20-50°C
10.wireless communication: blue-teeth
3. Package parameters:
1.machine composition: mainframe with SD card, touching pen, testing adapters, group of lines, SD card adaptor, operation manual and outside suitcase
2.overall size: 305.2×215.2×85mm
3.weight: 8KG
4. PS2 software V5.0 of testing function list file and PS2 heavy duty packing list file
as these two files are both too large to exist here clearly, please download from our webside!
