Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Coating Machinery > Resin Lens ar Coating Machine With High Quality in China

Resin Lens ar Coating Machine With High Quality in China

Name: Resin Lens ar Coating Machine With High Quality in China
Brand: Vakia
SKU: 122756167
Availability: InStock

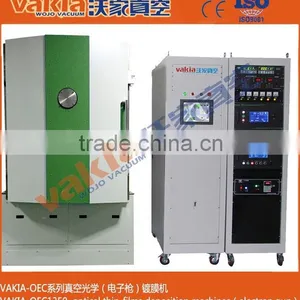

Resin Lens ar Coating Machine With High Quality in China thumbnail-1

Resin Lens ar Coating Machine With High Quality in China photo-1

US$ 80,000 - 120,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Coating Production Line

Substrate:

Glass

Contact Supplier Request Quote Chat Now

Shanghai Vakia Coating Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Coating Production Line

Substrate Glass

Coating Vacuum Coating

Place of Origin Shanghai, China

Brand Name Vakia

Model Number OEC-800

Voltage 380v

Power(W) 35KW

Dimension(L*W*H) 4x4x2m

Weight 4t

Certification ISO 9001:2008

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

resin lens ar coating machine with high quality in China

resin lens ar coating machine

Features:

Equipped with E-beam gun,thermal evaporator source,ion source,heater,IPC controllers

Kinds of dielectric film;antirecdtion film,filter film,beam-splingtting film,color film

Depostioned protectibve film:rigid hydropbic membrane,DLC.

Application:

Optical lens, resin lens, Glasses,Reflective glass,Cold light cups,Accessories.

Technology Parameters:

Model Function	VAKIA-OEC-900	VAKIA-OEC-1200	VAKIA-OEC-1350
Vacuum Chamber Inner Size	φ900*H1050mm	φ1200*H1250mm	φ1350*H1450mm
frock clamp	Arch single workpiece tray,satisfy customers’ demand of uniformity to a greater extent,rotate 5 to 30 r/min, Continuously Variable Transmission	1 Arch single workpiece tray,satisfy customers’ demand of uniformity to a greater extent,rotate 5 to 30 r/min, Continuously Variable Transmission. 2 Arch three workpiece tray,planetary, revolution-autorotation, satisfy customers’ demand of productivity,rotate 5 to 30 r/min, Continuously Variable Transmission
Vacuum system	Diffusion pump KT-600(VAKIA), Roots Pump ZJ-300, Mechanical pump2X-70, Holding pump2X-8, Pipeline is made of 304 Stainless Steel	Diffusion pump KT-800(VAKIA), Roots Pump ZJ-600, Mechanical pump2X-70, Holding pump2X-8, Pipeline is made of 304 Stainless Steel	Diffusion pump KT-800(VAKIA), Roots Pump ZJ-300, Mechanical pump2X-70, Holding pump2X-15, Pipeline is made of 304 Stainless Steel
	Ultimate Vacuum:superior to 6.0×10^-4Pa
	Be equipped with anti-turbulence device,safety interlock, Automatic and Manual operation mode optional
Heating System	Heating on the thermotube,PID control,highest 350 °C±1.5°C
Inflation of process gas	Gas mass control meter or gas filled valve Which can be manually fine tuning
Vacuum Ion bombardment	Direct Current3KV,0.6KW clavate cathode(used for cleaning Workpiece by itself before coating) and gas ion source select
Evaporation source(selected)	1 Electron gun:6KW,high pressure4 KV to 10 KV adjustable. Positioning scanning,triangular scanning,circular scanning,spiral scanning,orthogonal scanning,sine wave, focusing capability of beam spot is good,positioning accuracy is high, good reproducibility
	2 crucible:six pointsφ3820 crucible or four pointsφ3820 plus anotherpoint arc crucible which center arc length is 87(used for high consumption and low melting point of evaporation material) or crucibleφ48*18
Ion source(selected)	1.5KV hall ion source:used for cleaning before electroplating or assisted deposition,which helped acquiring the higher refractivity,firmness,good compactness and strong adhesion
Coating control system(selected)	Quartz crystal film thickness control meter:can store up 1 to 99 layer automation coating process,99 kinds of data,is of high precision
	Optical film thickness control meter:adopted multi-wave full spectrum destination analysis technology,judge film layer through the curve analysis of 370 to 870mm transmissivity (or reflectivity) of monitoring chips,can achieve high control precision
