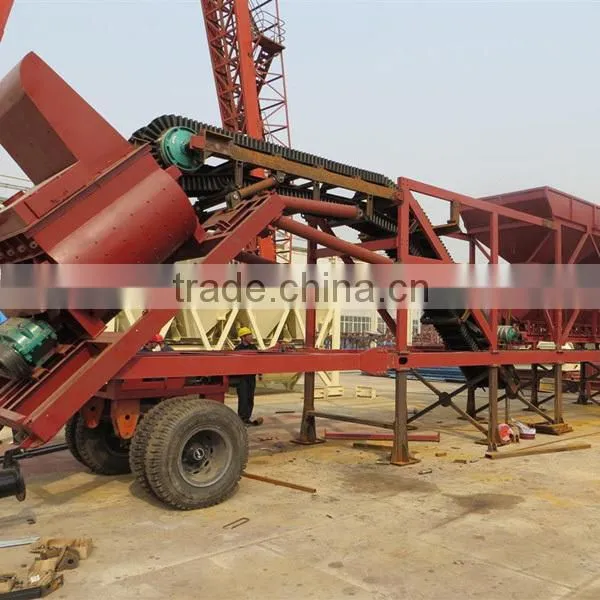

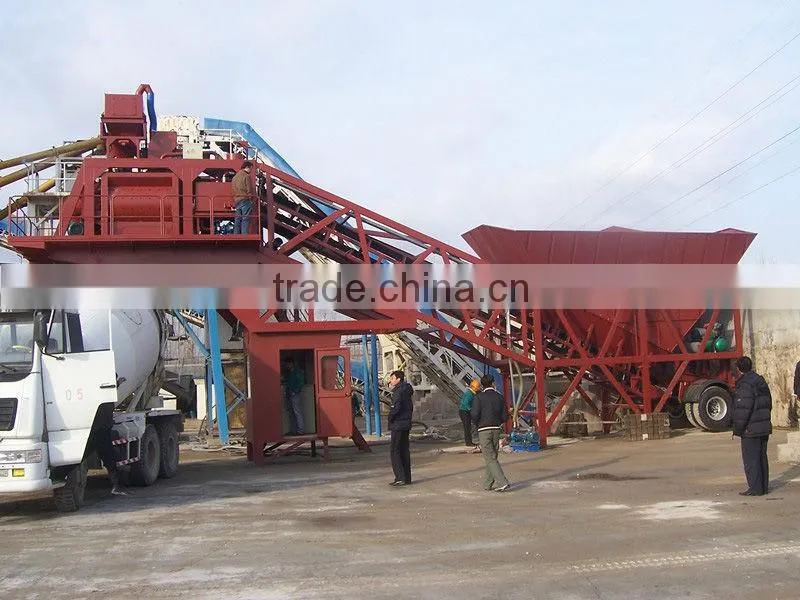

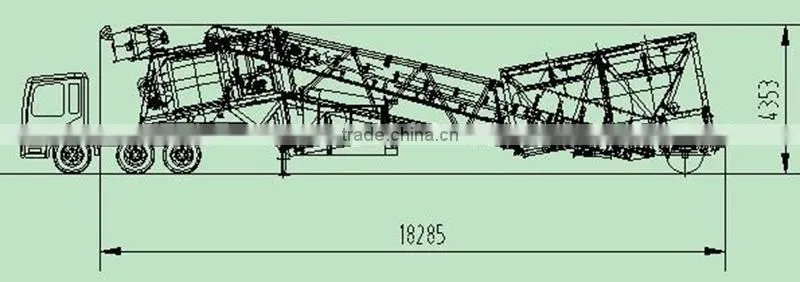

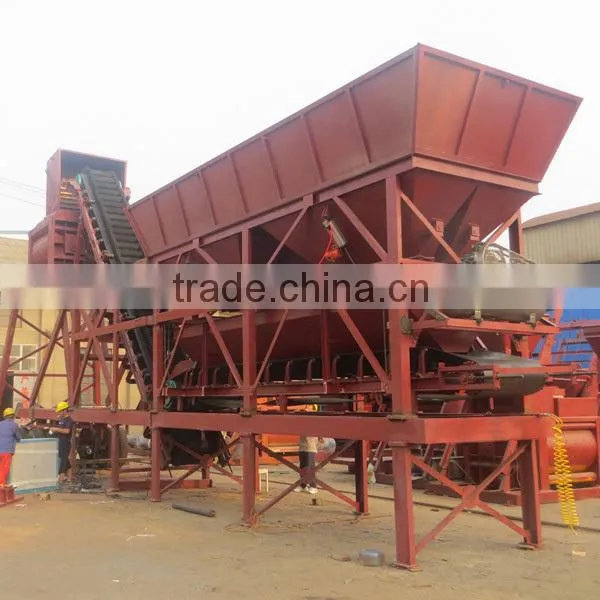

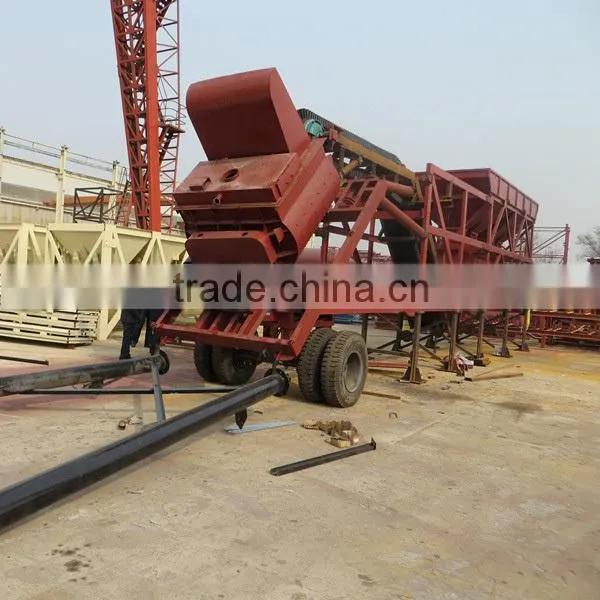

Mini 25m3/h Mobile Ready Concrete Mixed Batching/Mixing for Sale

Model

YHZS25

Rated Productivity

25m3/h

Main Mixer

JS500

Max. Aggregate Diameter

60mm

Capacity of Aggregate Bin

2*2m3

Aggregate Measuring and Conveying Mode

Lift hopperr

Measuring Scope & Accuracy of Aggregate

1200Kg ±2%

Measuring Scope & Accuracy of Cement

300Kg ±1%

Measuring Scope & Accuracy of Water

150Kg ±1%

Measuring Scope & Accuracy of Additives

20Kg ±1%

General Power

45Kw

Power Supply

380V/50HZ

Total Weight

7700kg

Transport Mode

Pulled by a truck chassis

Discharge Height

3.8 m

Powder Material Silos (for customers’ choice)

Chosen according to customer’s demands.

Screw Conveyors (for customers’ choice)

Chosen according to customer’s demands.

Item

Parameter

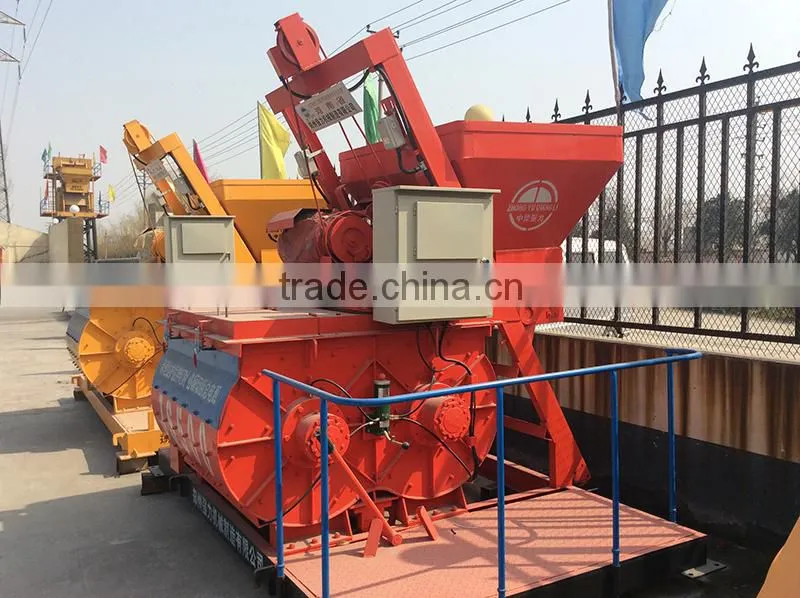

Model of mixer

JS500

Discharge capacity

500L

Feeding capacity

800L

Productivity

20-25m³/h

Working cycling time

60s

Mixing motor power

18.5KW

Max. Size of aggregate

60/80mm

Mixing blade speed

30 r/min

Mixing blade quantity

2*8 pcs

Water pump power

3KW

Working state dimension

2960mm*2600mm*4400mm

Overall weight

3970kg

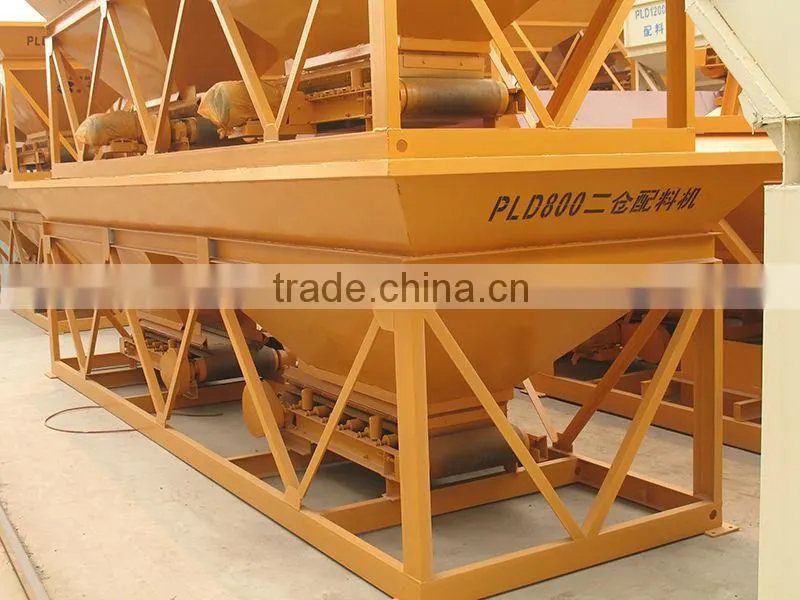

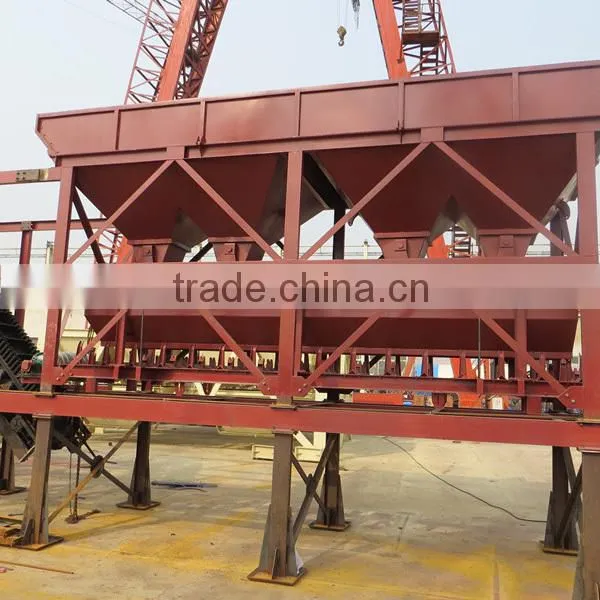

item

PLD800

Bin(s)

2

Capacity of weighing hopper

0.8m³

Capacity of storage hopper

2m³×2

Productivity

48m³/h

Accuracy of batching

±2%

Kinds of aggregate

2

Max. weighing capacity

1500kg

Feeding height

3000mm

Power

3kw×3

Overall dimension

6000×1800×3050mm

Overall weight

2300kg

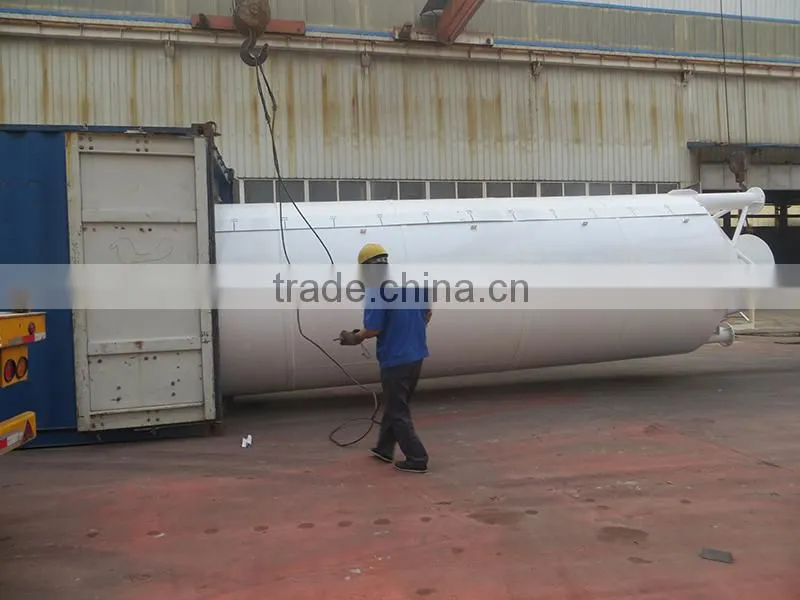

Model

50T

Silo Diameter (A)

2,150mm

Silo Body Height (H1)

10,350mm

Silo Cone Height (H2)

1,169mm

Silo Height (H3)

18,829mm

Total Height (H4) (including handrails)

19,829mm

Discharging Height (H5)

7,410mm

Total Weight

4T

Material

Q235

Accessories

Dust Collector, Handrails, Inside& Outside Ladders,

Inlet Tube, Butterfly Valve, Support Legs, Broken arch.

Painting

Step 1: Anti-Rust Painting Step 2: Surface Painting

Remark

We can supply custom service.

model

Delivery angel

 to the ground

Delivery distance (m)

Max. Delivery capacity(T/H)

Pipe diameter(mm)

Motor power(kw)

LSY219

0-45°

4-15m

30T/H

273mm

7.5-18.5kw

Strong Current Cabin

1

set(s)

Weak Current Cabin

1

set(s)

Operation Desk

YHZS25

1

set(s)

Control Room

3240*2320*2500mm

1

set(s)

Control Computer

EVOC

1

set(s)

LCD

19"

1

set(s)

Contactor

Schneider

1

set(s)

Autoswitch

Schneider

1

set(s)

Mini-relay

1

set(s)

Thermo-relay

1

set(s)

PLC

OMRON

1

set(s)

Weighing Transmitter

1

set(s)

UPS

1

set(s)

Air Conditioner

1  pieces

1

set(s)

Electrical Control Accessories

Schneider

1

set(s)

Monitor

2

set(s)

Camera

14"

2

set(s)

Printer

Needle type

1

set(s)

Electric Cables and Accessories

1

set(s)
