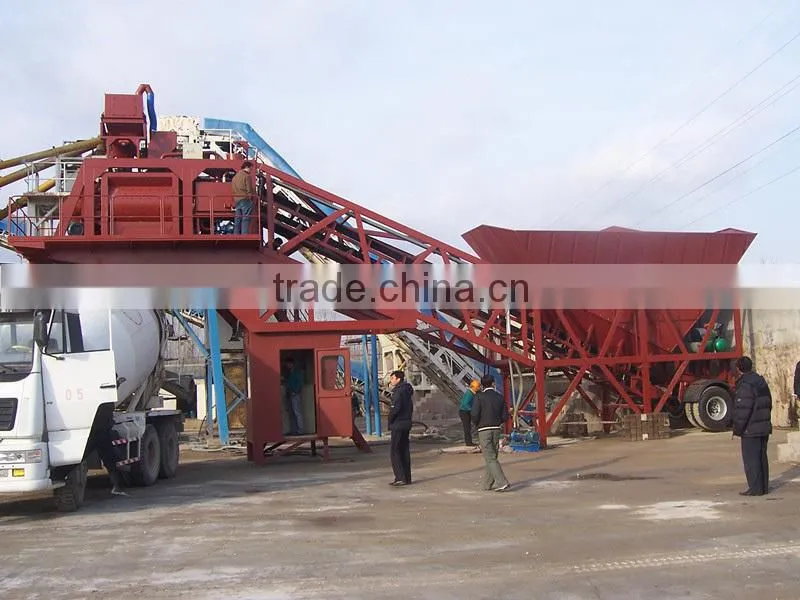

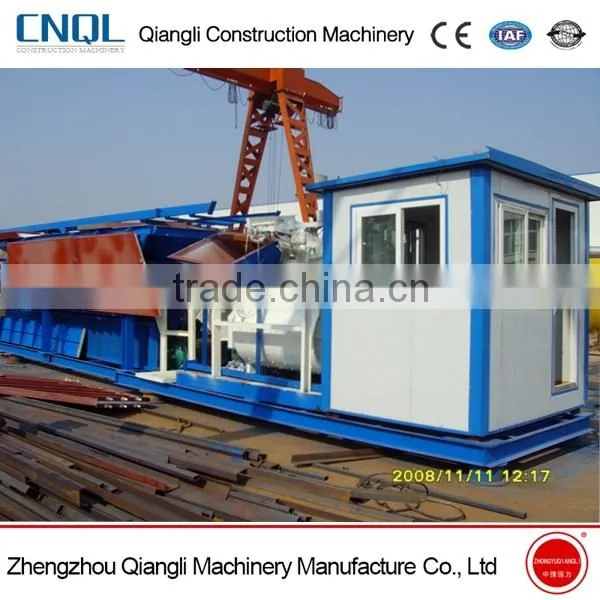

Fully Automatic Portable YHZS5 Concrete Batching Plant/Mixing Station Price for Sale
Sketch

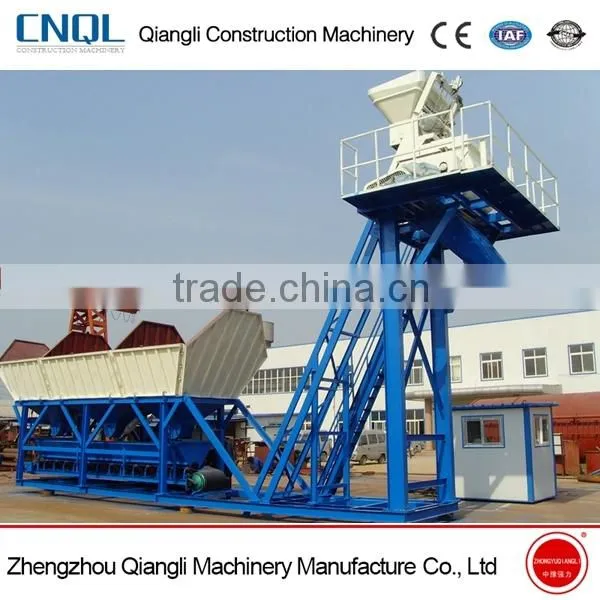

Main technical parameter
Model |
YHZS35 |
Rated Productivity |
35m3/h |
Main Mixer |
JS750 |
Max. Aggregate Diameter |
80mm |
Capacity of Aggregate Bin |
2*2.2m3 |
Aggregate Measuring and Conveying Mode |
Flat Belt |
Measuring Scope & Accuracy of Aggregate |
1800Kg ±2% |
Measuring Scope & Accuracy of Cement |
450Kg ±1% |
Measuring Scope & Accuracy of Water |
200Kg ±1% |
Measuring Scope & Accuracy of Additives |
30Kg ±1% |
General Power |
60Kw |
Power Supply |
380V/50HZ |
Total Weight |
15000kg |

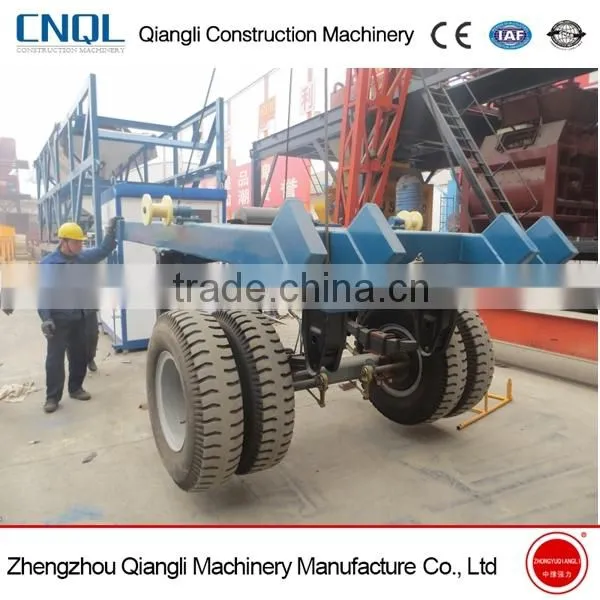

Transport Mode |
Pulled by a truck chassis |
Discharge Height |
3.8 m |
Powder Material Silos (for customers’ choice) |
Chosen according to customer’s demands. |
Screw Conveyors (for customers’ choice) |
Chosen according to customer’s demands. |
Item |
Parameter |

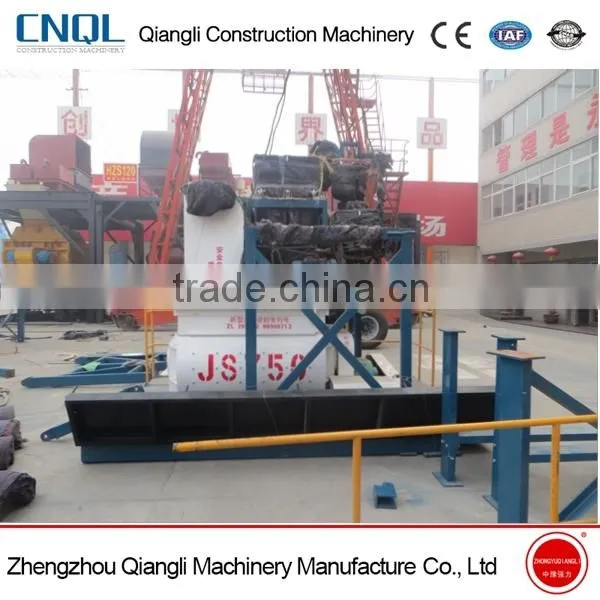

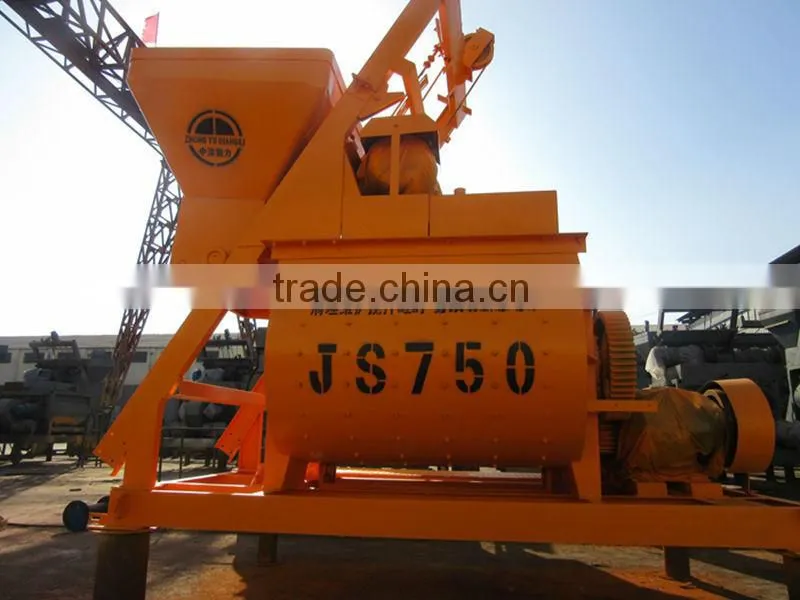

Model of mixer |
JS750 |
Discharge capacity |
750L |
Feeding capacity |
1200L |
Productivity |
30-35m³/h |
Mixing motor power |
30KW |
Max. Size of aggregate |
60mm |
Mixing blade speed |
31 r/min |
Hoisting motor power |
7.5KW |
Overall dimension |
3400mm*2600mm*2500mm |
Overall weight |
5000kg |

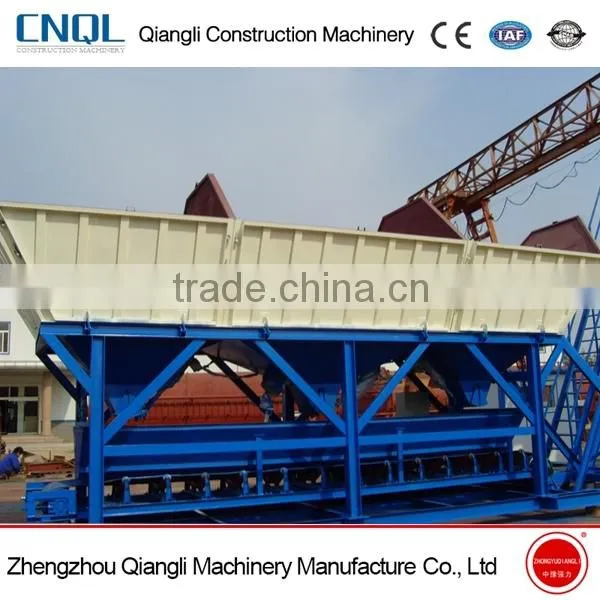

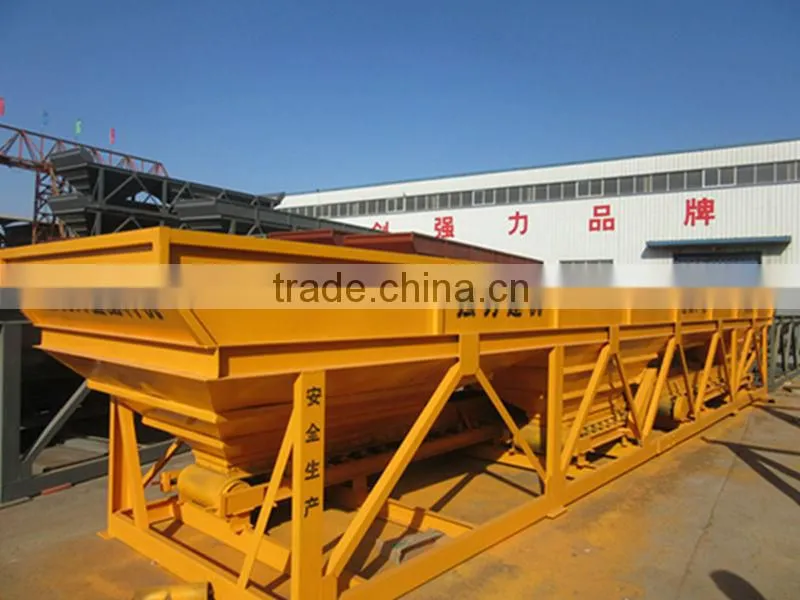

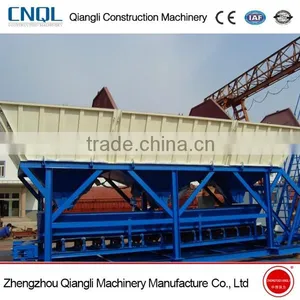

Concrete batching machine
item |
PLD1200 |
Bin(s) |
3 |
Capacity of weighing hopper |
1.2m³ |
Capacity of storage hopper |
2.2m³×3 |
Productivity |
60m³/h |
Accuracy of batching |
±2% |
Max. weighing capacity |
2000kg |
Kinds of aggregate |
3 |
Feeding height |
3000mm |
Power |
3kw×3+4kw×1 |
Overall dimension |
9000×2000× 3100mm |
Overall weight |
3900kg |

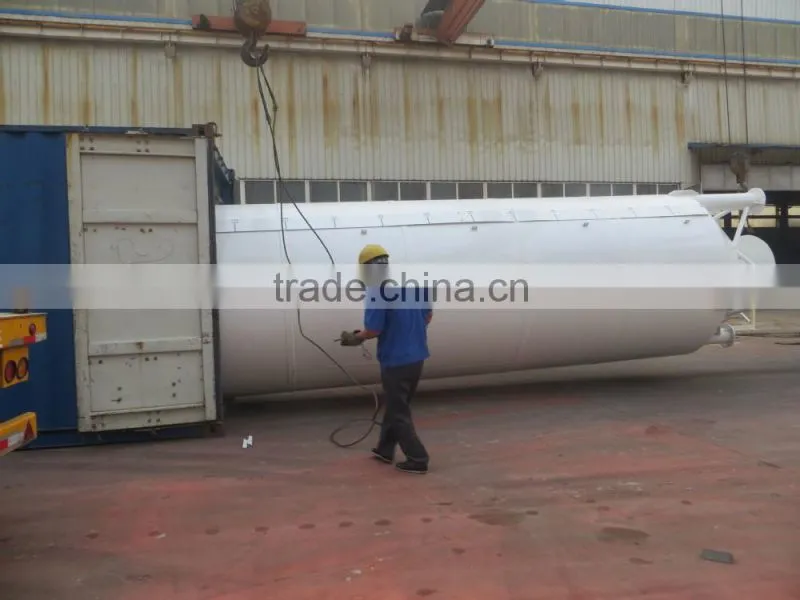

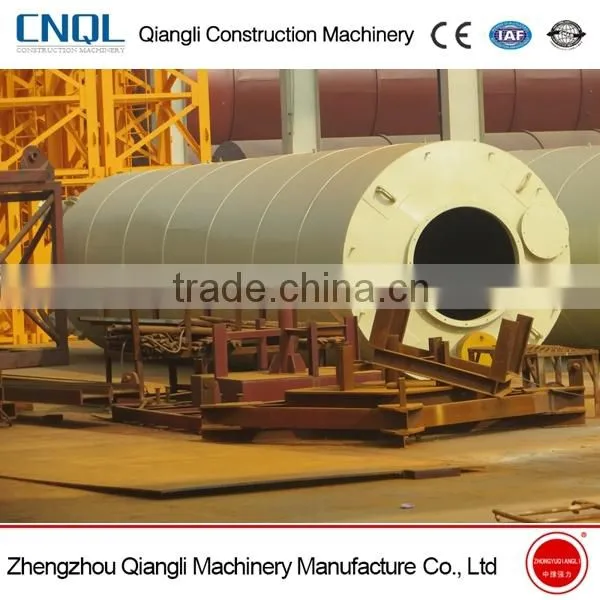

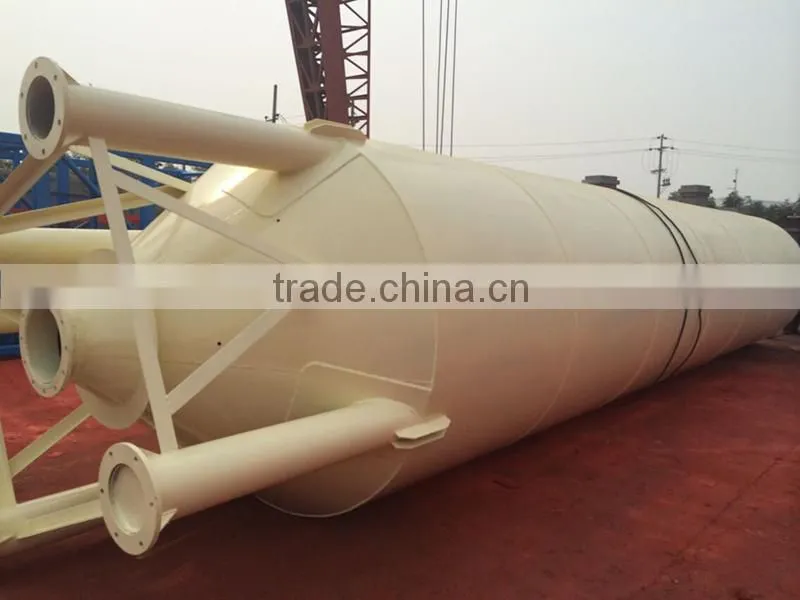

Cement silo
Model |
50T |
Silo Diameter (A) |
2,150mm |
Silo Body Height (H1) |
10,350mm |
Silo Cone Height (H2) |
1,169mm |
Silo Height (H3) |
18,829mm |
Total Height (H4) (including handrails) |
19,829mm |
Discharging Height (H5) |
7,410mm |
Total Weight |
4T |
Material |
Q235 |
Accessories |
Dust Collector, Handrails, Inside& Outside Ladders, |
Inlet Tube, Butterfly Valve, Support Legs, Broken arch. | |
Painting |
Step 1: Anti-Rust Painting Step 2: Surface Painting |
Remark |
We can supply custom service. |
Screw conveyor
model |
Delivery angel to the ground |
Delivery distance (m) |
Max. Delivery capacity(T/H) |
Pipe diameter(mm) |
Motor power(kw) |
LSY219 |
0-45° |
4-15m |
30T/H |
273mm |
7.5-18.5kw |
Strong Current Cabin |
|
1 |
set(s) |
Weak Current Cabin |
|
1 |
set(s) |
Operation Desk |
YHZS35 |
1 |
set(s) |
Control Room |
3240*2320*2500mm |
1 |
set(s) |
Control Computer |
EVOC |
1 |
set(s) |
LCD |
19" |
1 |
set(s) |
Contactor |
Schneider |
1 |
set(s) |
Autoswitch |
Schneider |
1 |
set(s) |
Mini-relay |
|
1 |
set(s) |
Thermo-relay |
|
1 |
set(s) |
PLC |
OMRON |
1 |
set(s) |
Weighing Transmitter |
|
1 |
set(s) |
UPS |
|
1 |
set(s) |
Air Conditioner |
1 pieces |
1 |
set(s) |
Electrical Control Accessories |
Schneider |
1 |
set(s) |
Monitor |
|
2 |
set(s) |
Camera |
14" |
2 |
set(s) |
Printer |
Needle type |
1 |
set(s) |
Electric Cables and Accessories |
|
1 |
set(s) |
1)we have CE,ISO,SGS and BV certificate;
2)we have 20-year experience;
3)we have over 400 workers to ensure quick delivery;
4)we have 20 engineers to design special concrete plants for our customers;
5)we have after sales service like: installation, debugging, operator training and spare parts supply.
Welcome to visit our factory!
