Specifications
1.truck diag tool2.ps2 heavy duty, ps2 scanner
3.universal diagnostic tool
4.1 year warranty
5.free update for 2 years
truck diag tool, popular truc diag tool ps2, ps2 heavy duty, ps2 scanner
PS2 HEAVY DUTY SCANNER
PS2 Heavy duty scanner is a major product researched and developed by Xtooltech Co. Ltd. The main technicians play a technical leading role in this business and most other engineers have rich experiences for designing platform and software. Therefore, our customers could feel the outstanding and powerful performance of the product.
As for the design of PS2, our technicians perfectly mix appearances with practicality with large size, true-color, touching screen and streamline appearance. Customers will operate PS2 more intuitively and easily. The capability of the built-in highly processing chip could reach 400MHZ, much more superior compared with the common used ARM7 chip, which can guarantee the accuracy and real-time function, thereby it enhances the convenience of users.
In the compatible aspect of data agreement, PS2 comprehensively supports all protocols and all modes for the OBD II. The built-in CAN BUS chip supports all CAN BUS agreements. The forward-looking design meets automobile main-line examination not only for the present but also for the future, just need updating the drivers of diagnostic module via internet. It has been reduced the equipped adapters as to the formidable compatibility, which makes users more convenient and easier to use.
The servicemen can sit in the office to carry on the functional test via wireless communication. The VAG connector could meet the various requests from customers. All test procedures places on a high-capacity SD card which facilitates the updating procedure. The multi-language edition will satisfy the customers’ demands from different area around the world.
PS2 HAEVY DUTY can diagnose VOLVO, SCANIA, MAN,MERCEDES BENZ,ISUZU,MACK, COMMINS,HINO,DAF,Hyundai, at present, and will add Iveco,FUSO, NISSAN UD, Renault , ERF,Astra, Bremach,SINOTRUCK,etc in the near future! more detail files, please contact with salers or download via webside!
1. diagram of PS2 mainframe appereance
A. Front-View Figure
B. Back- view Figure
C. the upward-side connection of the mainframe:
1) Power switch: Uses for starting and closing of main engine
2) USB connection: Uses this connection to carry on the data synchronization with PC.
3) VGA connection: Uses this connection to link the external monitor (800×600 pixels)
4) Main test connection: Uses the testing line to carry on the vehicles diagnosis.
5) power connection: Uses for the exterior power supply
6) touching pen: Uses in clicking on the touching-screen.
D. the lower-side connection of the mainframe :
1) serial port: Uses in the main body debugging.
2) SD card slot: uses for SD card
3) paper outlet: use for mini printer
E. Function of VCI diagnostic box:
The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The main testing line connects PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor could directly link with PS2 mainframe)
PS2 mainframe with no main testing line also can do diagnosis as the bluetooth communication module has been installed into the VCI diagnosis box. Please change the setting from “on-line diagnosis” to the “wireless diagnosis” on the menu if you are wondering to use it with wireless!
F. Using the multi-jumper box
Tip: If you use the OBD testing connectors for direct connection, can only detect the standard diagnostic connector pin out on the connected system (pin 7 for ISO diagnosis, pins 2 and 10 for SAE diagnosis, 6 and 14 pins for the CAN diagnosis). This is usually the engine control system, some cases may find other systems. All diagnostic criteria did not take out the plug pins on the OBD system must use the test connection with the 'million a jumper box' to the jumper connection test. In the use of 'million a jumper box' to the jumper connection test, click on that connection as follows:
1 ) the multi-jumper box with cables
(1) Ground
(2) power lines
(3) signal lines
2)note of the side hole on multi-jumper box , it is visible on the label place of the box back
2. PS2 technical parameters:
1) operating system: WINCE 5.0 operating platforms
2) CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
3) programming memory: FLASH 64M ,supports SD card slot-in and slot-out
4) mainframe battery: rechargeable battery 3500m/Ah
5) mainframe power supply: DC12V/24V
6) mainframe power: 25W
7) printer: Mini high-speed thermal sensitive printer
8) screen: 8 inches real-color touch-screens, 800×600 with LED back-light
9) relative humidity: <90%, temperature: -20-50°C
10) wireless communication: blue-teeth
3. Package parameters:

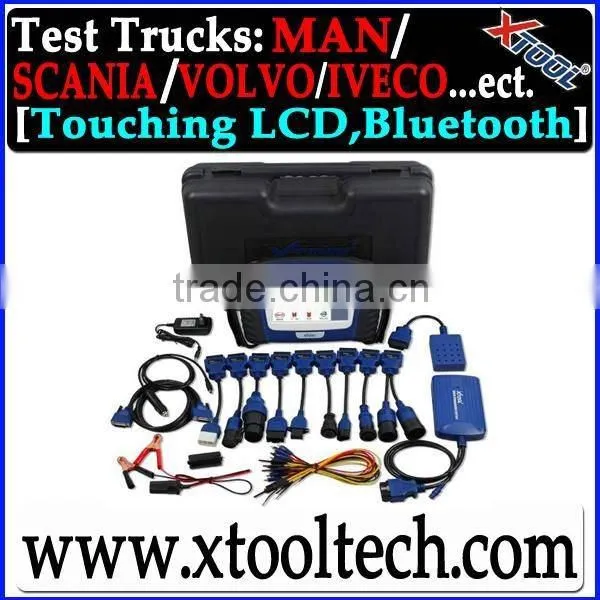

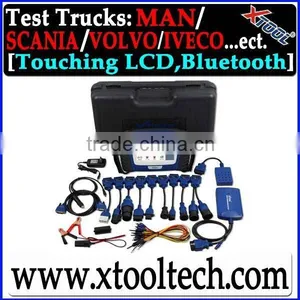

1) machine composition: mainframe with SD card, touching pen, testing adapters, group of lines, SD card adaptor, operation manual and outside suitcase
2) overall size: 305.2×215.2×85mm
3) weight: 9K
