Specifications
Vehicle ScannerDiag MAN.VOLVO,SCANIA .IVECOECT
Touching LCD
Bluetooth
Update free
Vehicle Repair Tool

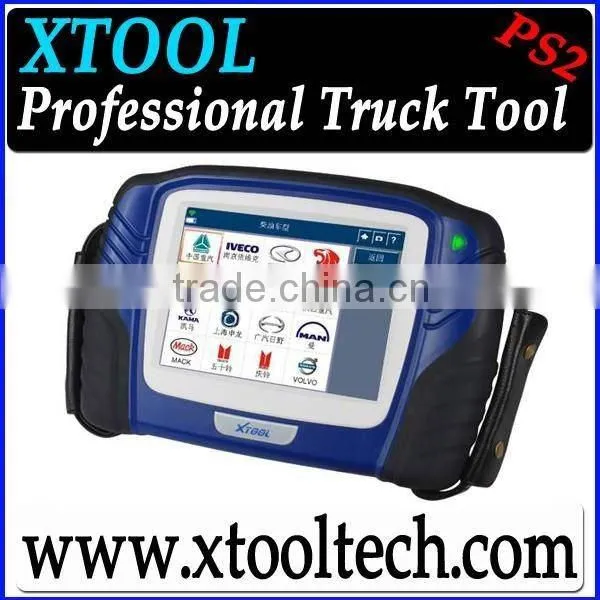

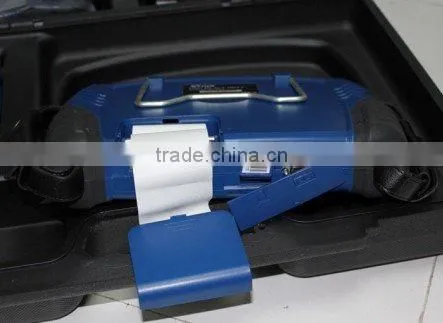

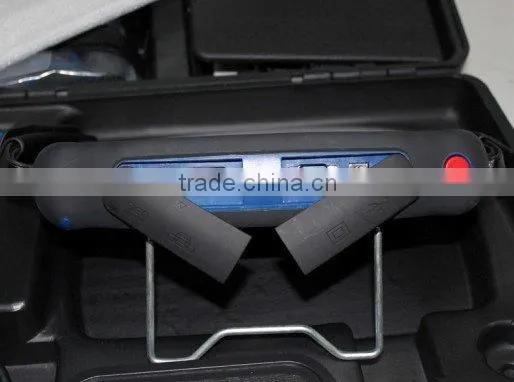

1. PS2 heavy duty Album:

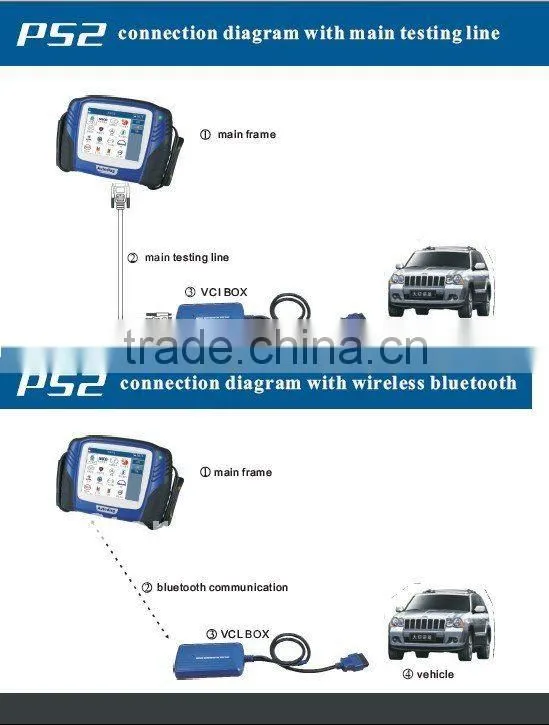

2. Diagram of connection by testing line & by bluetooth wireless
3. Information about PS2 heavy duty
- SUPPORTS BOTH BLUETOOTH AND DIRECT PLUGIN DIAGNOSIS;
- SUPPORTS OVER 10 KINDS OF DIESEL TRUCK MODELS, INCLUDE VOLVO, SCANIA, MAN, MERCEDES BENZ, ISUZU, MACK, CUMMINS, HINO, DAF, HYUNDAI, IVECO, FUSO,ERF,ASTRA, BREMACH ETC;
- FUTURE UPDATES: NISSAN UD, RENAULT,SINOTRUCK. ALL COMING SOON !
- A DETAILED FUNCTION LIST CAN BE DOWNLOADED HERE (/en/download.asp)
- ALTERNATIVELY, YOU MAY ASK ONE OF OUR SALES TEAM MEMBERS (/en/service.asp)

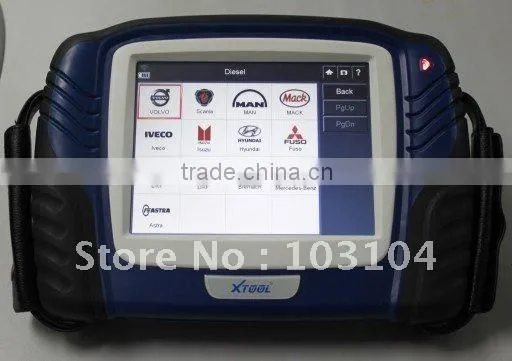

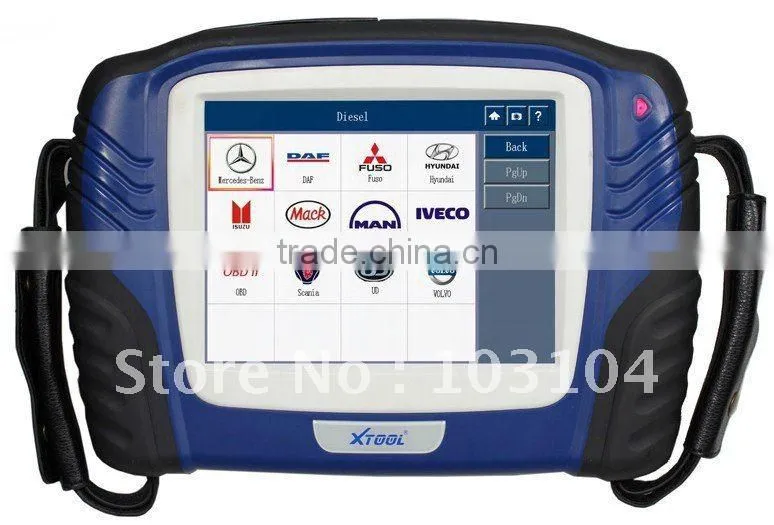

4. Illustration of PS2 main unit
A. Front-View and B. Back- view
C. Illustration of the various connect points on top of the main
D. Illustration of the various connect points on bottom of the main unit:

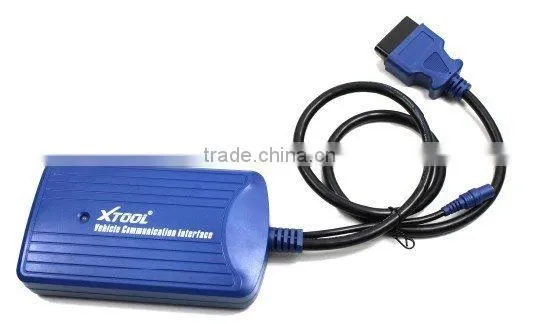

Function of VCI diagnostic box:
The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The main testing line connects PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor could directly link with PS2 mainframe)
PS2 mainframe with no main testing line also can do diagnosis as the bluetooth communication module has been installed into the VCI diagnosis box. Please change the setting from “on-line diagnosis” to the “wireless diagnosis” on the menu if you are wondering to use it with wireless!

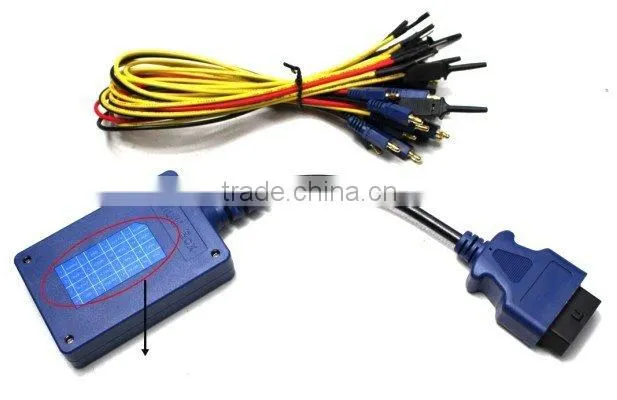

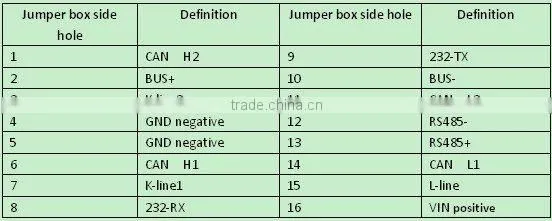

F. Using the multi-jumper box
Tip: If you use the OBD testing connectors for direct connection, can only detect the standard diagnostic connector pin out on the connected system (pin 7 for ISO diagnosis, pins 2 and 10 for SAE diagnosis, 6 and 14 pins for the CAN diagnosis). This is usually the engine control system, some cases may find other systems. All diagnostic criteria did not take out the plug pins on the OBD system must use the test connection with the 'million a jumper box' to the jumper connection test. In the use of 'million a jumper box' to the jumper connection test, click on that connection as follows:
1 the multi-jumper box with cables
5. PS2 technical parameters:
1 operating system: WINCE 5.0 operating platforms
2 CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
3programming memory: FLASH 64M ,supports SD card slot-in and slot-out
4mainframe battery: rechargeable battery 3500m/Ah
5mainframe power supply: DC12V/24V
6mainframe power: 25W
7printer: Mini high-speed thermal sensitive printer
8screen: 8 inches real-color touch-screens, 800×600 with LED back-light
9relative humidity: <90%, temperature: -20-50°C
10wireless communication: blue-teeth
6. Package parameters:
1machine composition: mainframe with SD card, touching pen, testing adapters, group of lines, SD card adaptor, operation manual and outside suitcase
2overall size: 305.2×215.2×85mm
3weight: 9.5KG
