Professional food processing machine for pet food
Contact Details
Contact Person: Cathy
Skype: Taizy2031
Mobile: 0086-13673685830
Introduction of fish food processing machine
Feed Pellet Machine can produce many kinds of fodder for different kinds of animals.
It can make poultry fodder, pet-fodder, as well as aquaculture-fodder and firshery feed, which is also called floating feed. It is applied to the pretreatment of the fodder, so as to reduce loss of nutrition, advance the protein ratio, so the fodder will be digested easier by animals.
The poultry-fodder can feed chicken, rabbit, sheep, pig, horse cattles and so on The pet- fodder can feed dogs, cats, differe t fish,goldfish etc.The Fishery- feed can feed the fish, shrimps, scrab, eel, catfish, batrachia and so on.
2.Working principle of fish food processing machine:
There is no need to heat outside the machine, through the screw extruding of the raw material, produces heat during the rotary working process, and gathers heat in the airtight environment to reach ripening, during the high temperature ripening process, the starch and fiber of the raw material become swell, on the pressure-tight condition, spray up from the mold outlet through the high pressure produced by the regular rotating of the screw, after cutting by the forepart cutter which rotates regularly and high-speedily, the finished product will be shrunk and become small average ball.

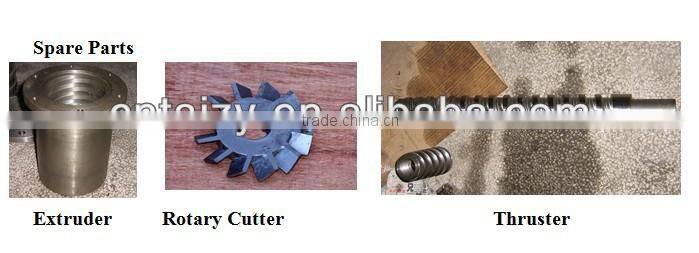

3. Structure of the machine
1).Composed of feeding system, extruding system, cutting system, controlling system.
2).Autotemperature control system, make the temperature controlling more direct viewing and the parameter more precise.
3.)Combined main shaft can adapt a variety of material
4).Screw barrel are designed optimized to get longer service life lower production cost.
5).Cutting system adopts advanced frequency conversion and speed-adjusting system of sophisticated structure, and viscolizeing granules, the size is adjustable
6). Works well in long time and continuous using, running steadily and reliability, easy to operate.
4.Parameters of fish food processing machine
Type |
Screw dia |
Power |
Capacity |
Machine size(m) |
Final size |
TZ-52 |
52mm |
7.5+0.55kw |
80-100kg/h |
1.2x0.5x0.9 |
1.5-6mm |
TZ -65 |
65mm |
11+0.75kw |
100-180kg/h |
1.35x1.2x0.8 |
1.5-8mm |
TZ-75 |
75mm |
15+0.75kw |
160-250kg/h |
1.5x1.2x0.9 |
1.5-8mm |
TZ-95 |
95mm |
22+0.75kw |
240-320kg/h |
1.9x1.25x0.95 |
1.2-10mm |
TZ-120 |
120mm |
37+1.1kw |
500-600kg/h |
2.4x1.3x1.2 |
1.2-12mm |

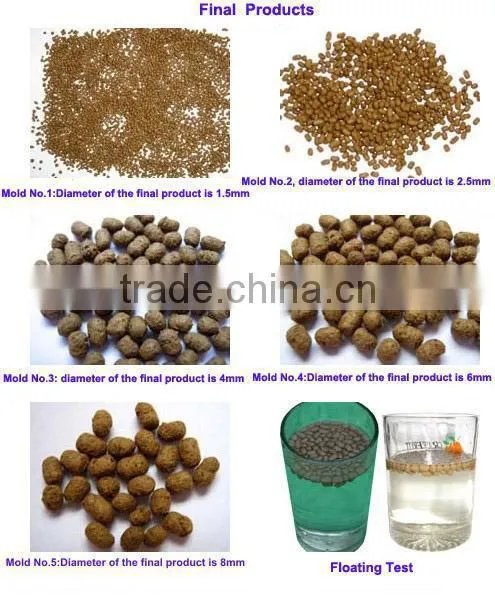

5.Finished products

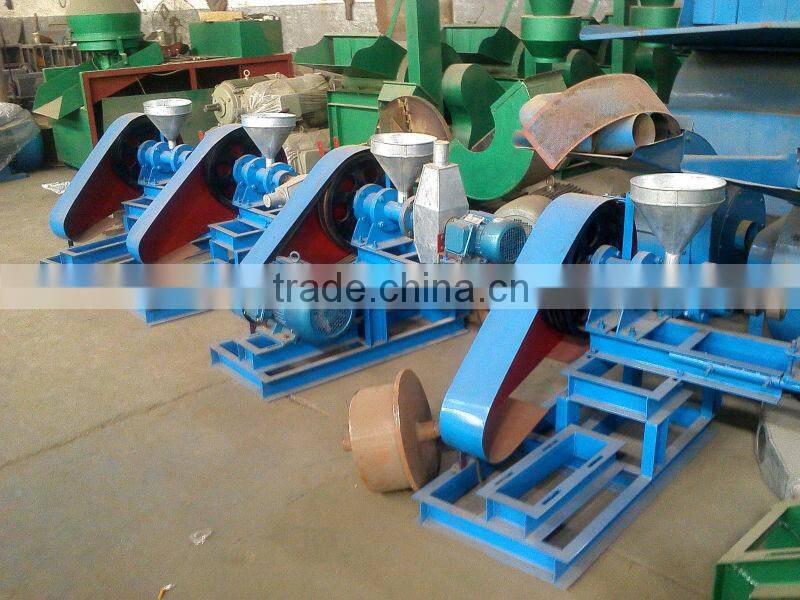

6.More pictures for yor review
purchase process
Any questions,please feel free to contact with me!
