automatic nail making machine/wire nail making machine with low price0086-15037190623
Features of nail making machine
The new generation automatic nail machine adopts the piston structure,which promises the good characteristics,such as high speed,low noise,less impact,especially it can make appropriative nails with excellent quality used for high-speed nail welding machine and nail guns.Used automatic nail making machine features
(1). The machine has attractive appearance, rational structure and high efficiency. It has long service life,and is easy to maintain with adequate durability.
(2). All the main components are made of quality steel, such as shaft, cams, gear and so on.
(3). Adopt control handle at the inlet place in order to control the incoming line at any time when operating.
(4). A friction gear is installed between crankshaft and flywheel,which plays a protective role when the machine breaks down or is overloaded.
(5). Automatic production systerm can lessen the manual labour.
Technical parameters of nail making machine:
Model |
Unit |
TZ-5.5C |
TZ-4C |
TZ-3C |
TZ-2C |
TZ-1C |
max dia. of nail |
mm |
5.5 |
4.5 |
3.1 |
2.8 |
1.6 |
min dia. of nail |
mm |
3.8 |
2.8 |
1.8 |
1.2 |
0.9 |
max length of nail |
mm |
150 |
100 |
75 |
50 |
25 |
mini length of nail |
mm |
80 |
50 |
30 |
16 |
9 |
designed output |
pcs/min |
200 |
260 |
280 |
350 |
450 |
motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
weight(approx) |
kg |
2300 |
2000 |
1800 |
1450 |
1200 |
overall dimension |
m |
2.5*1.6*1.5 |
2.2*1.6*1.65 |
2*1.4*1.4 |
1.7*1.3*1.4 |
1.5*1.3*1.2 |

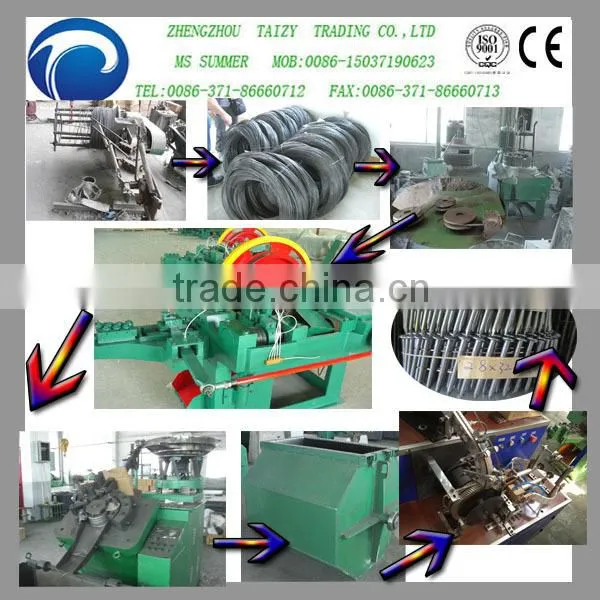

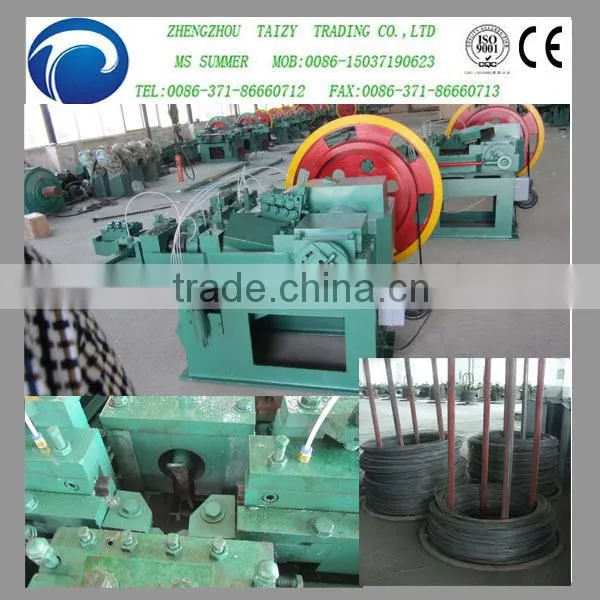

We can offer you the nail production line:

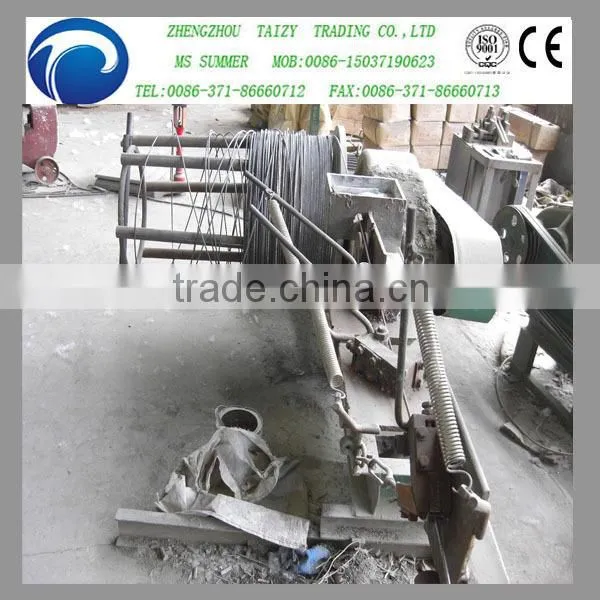

Wire sheller

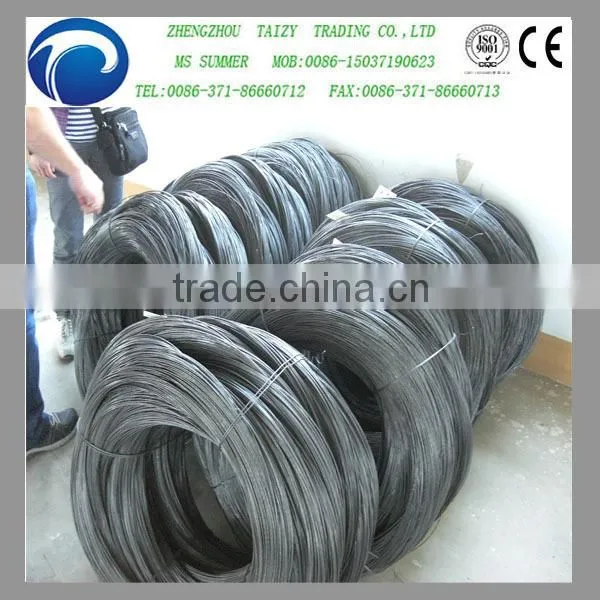

Fished steel wire

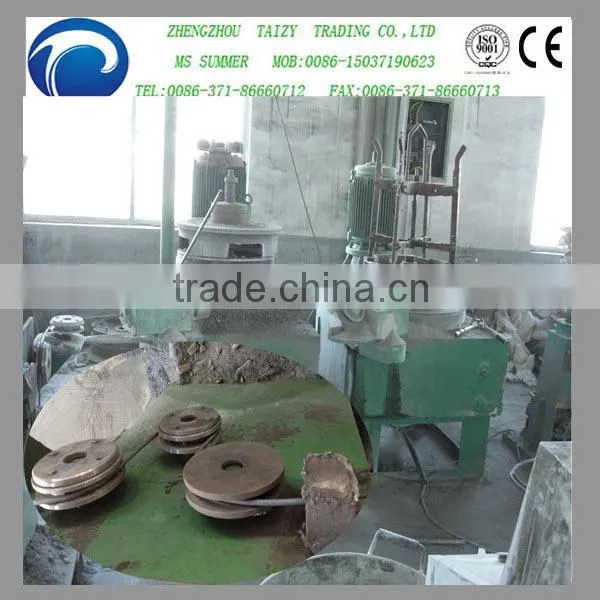

Wire drawing machine
Nail making machine

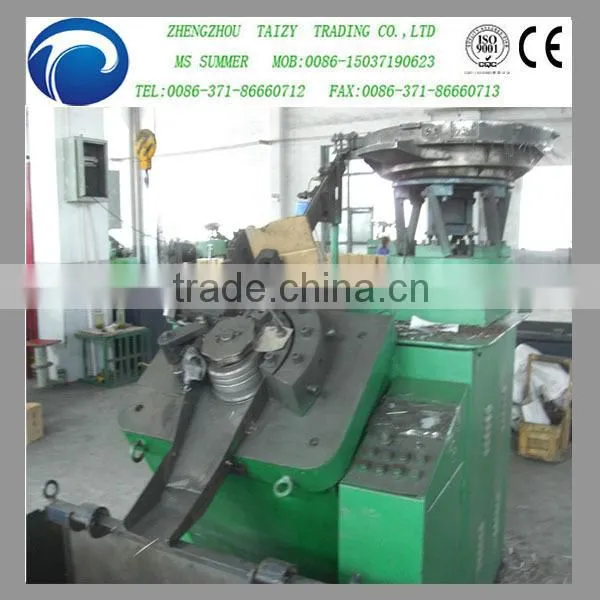

Nail screw rolling machine

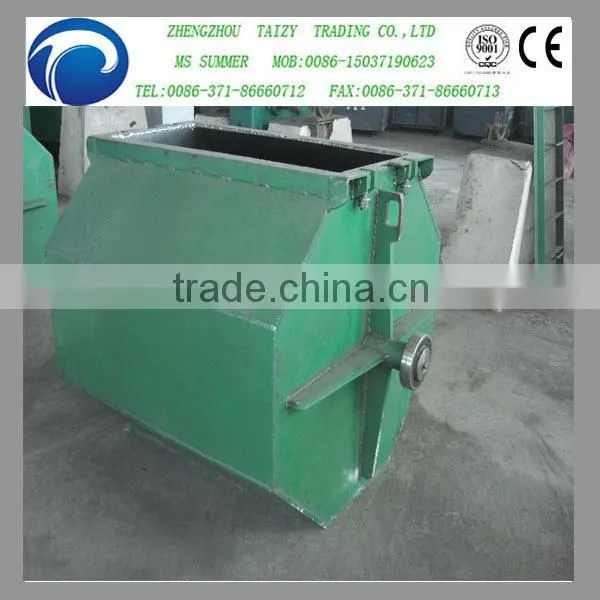

Nail polishing machine

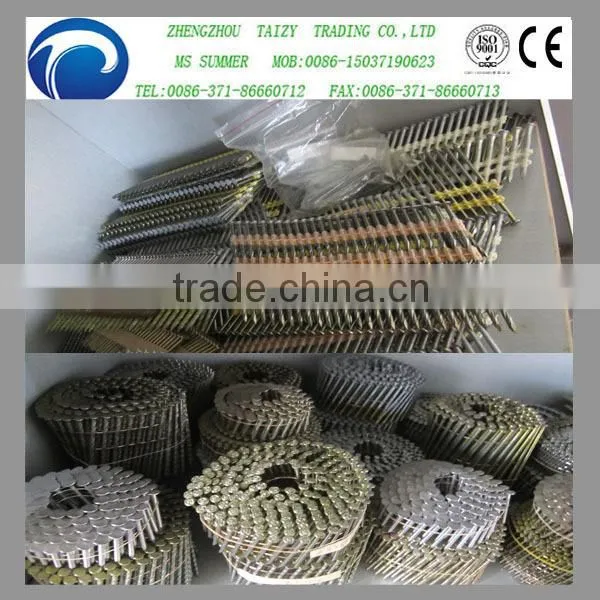

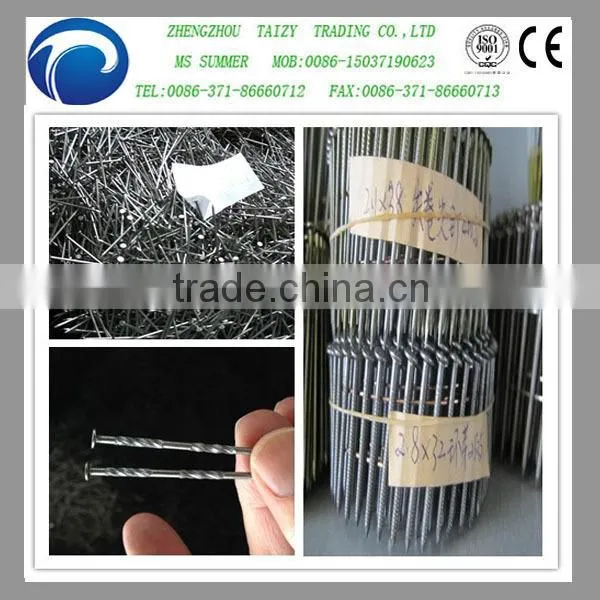

Various Sizes of Nails such as follows

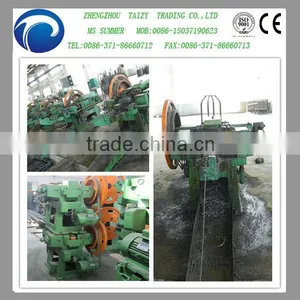

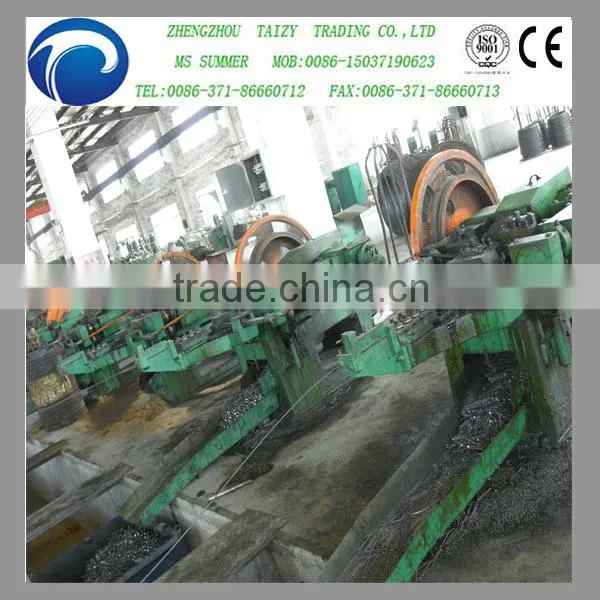

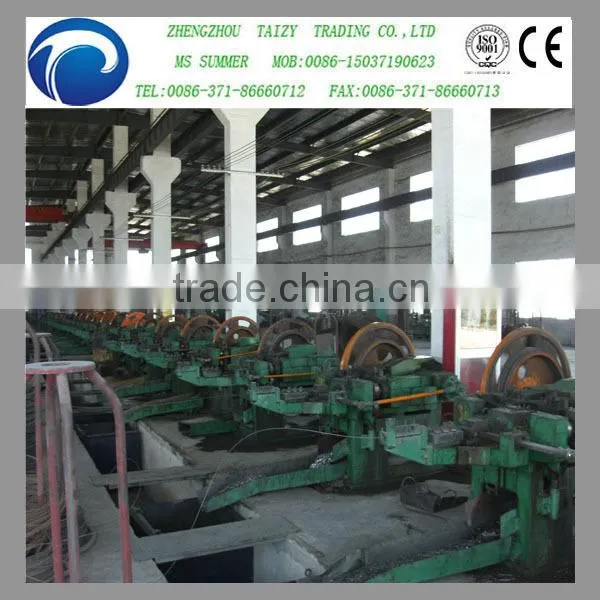

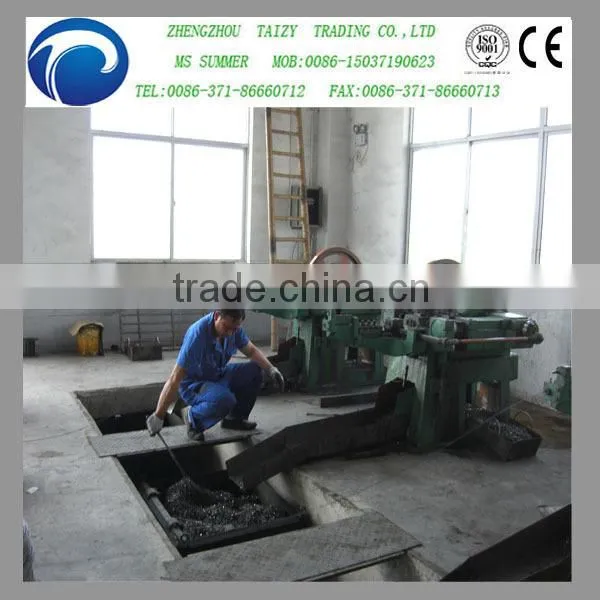

Our factory
Contact me
