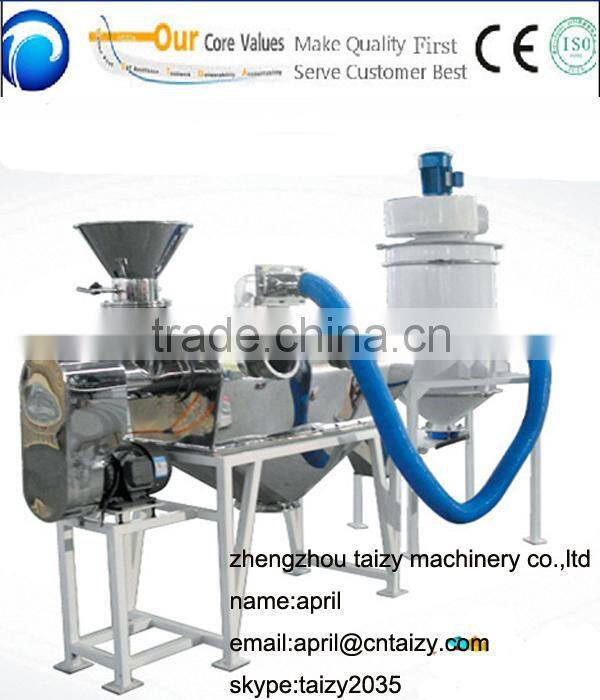

Help CenterPowder Sieving Machine|Mesh Chemials and Food
Related Products
-
High Efficiency Wall Plastering Equipment|plaster MachineUS$ 2,000 - 3,000MOQ: 1 Set -
2014 Professional Floating Fish Food Feed Machine for Sale 0086-15037190623NegotiableMOQ: 1 Set
-
Corn Straw Baler/steel Scrap BalerUS$ 1 - 1,000MOQ: 1 Set
-
Professional Square Bamboo Incense Sticks Production Line 008613673685830NegotiableMOQ: 1 Set
-
2014 Best Selling Machine for Making ChopsticksNegotiableMOQ: 1 Set
Specifications
1.Used in sifter 325 or 500 mesh cosmetic powder
2.Passed ISO 9001:2008
3.Energy saving, High efficiency, easy replace screen.

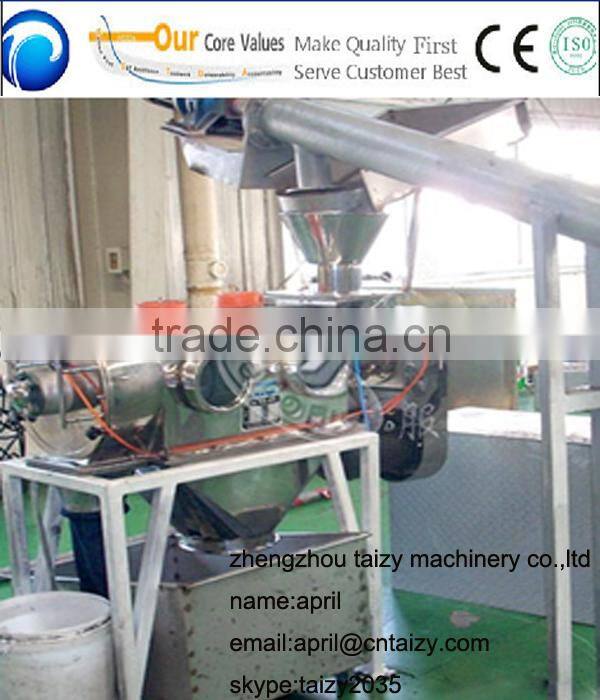

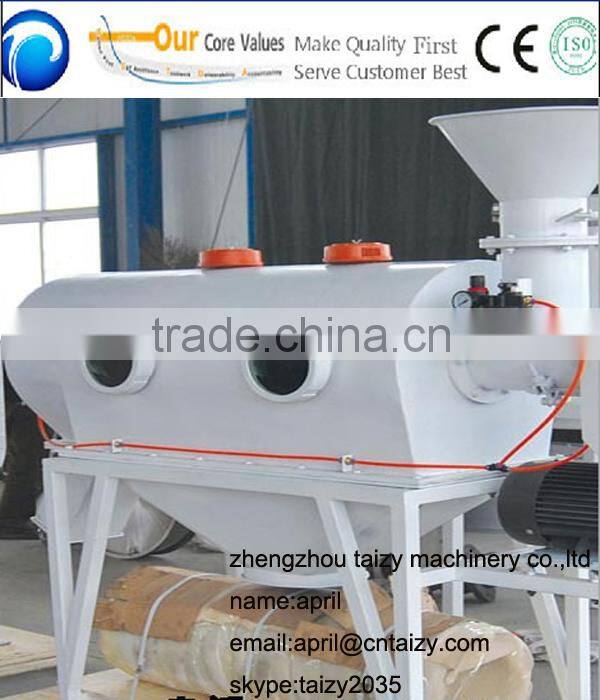

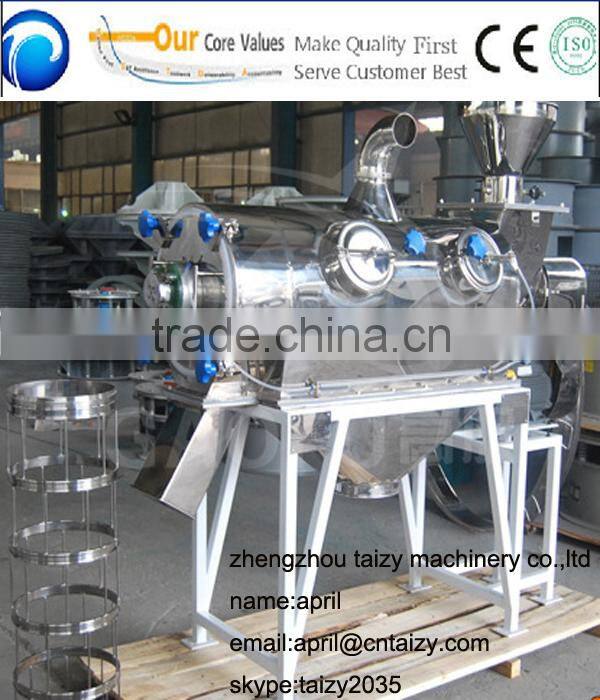

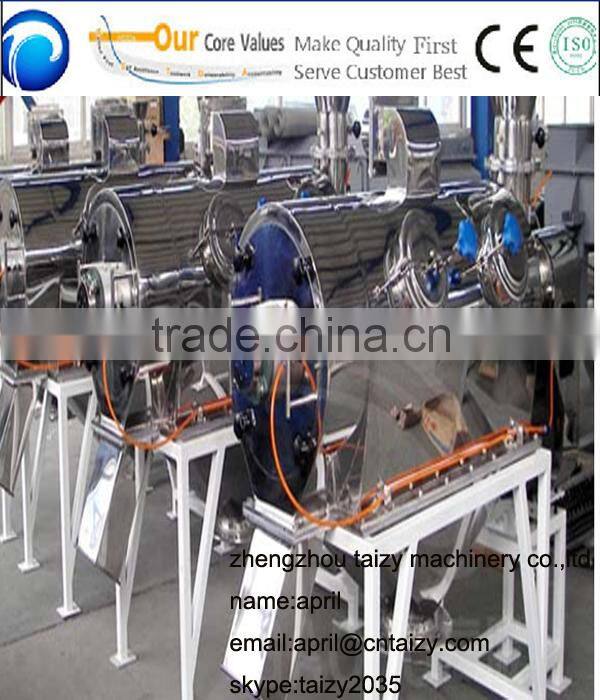

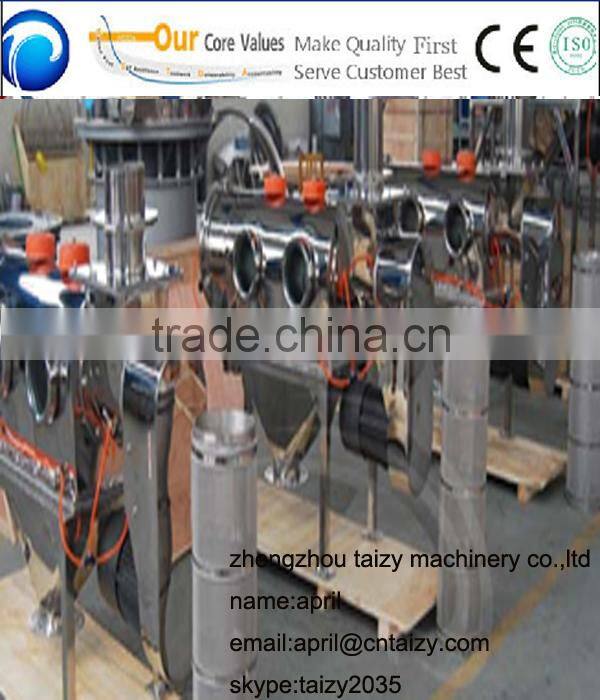

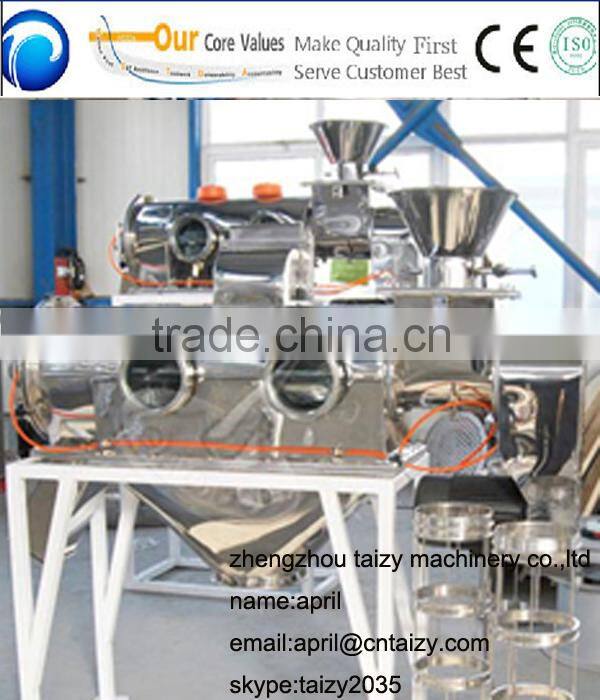

airflow sieving machine principle is feed the materials into a screw conveyor and a rotor rotating at high speed. the fine materials will pass through screen . and the oversize materials will be discarded at the end of the screw shaft.
It is especially suitable for screening resin powder (PVC, epoxy), glass beads, quartz sand, light calcium carbonate, aluminium hydroxide and the like powder materials.
Features:
- No oversize end bearings or seals
- Hinged oversize end door
- Easy to remove sifting screen and screen retainer
- Hygienic design sifting screen
- Easy to inspect and/or clean
- No tools required for screen, paddle and screw removal
- Fully rotatable screen for in-situ inspection
- Range of different screen options including; nylon, woven wire and wedge wire
Benefits:
- High efficiency
- Easy to clean
- Dust tight
- No vibration
- Quiet operation
- Operator friendly - The sifter can be stripped down for cleaning without the need for specialist maintenance assistance
Parameter:
Model |
Material |
Screen cage size(mm) (diameter*length) |
Screen material |
TZ 18-65 |
Q235A Carbon steel |
180mm*650mm |
Stainless steel or Nylon screen |
SUS Stainless steel |
180mm*650mm |
||
TZ 30-100 |
Q235A Carbon steel |
300mm*1000mm |
|
SUS Stainless steel |
300mm*1000mm |
||
TZ 50-130 |
Q235A Carbon steel |
500mm*1300mm |
|
SUS Stainless steel |
500mm*1300mm |
