Factory Direct Sale food dryer machine
Introduction of food dryer machine
It is widely used in sea cucumber,fish products,Chinese herb,dehydrated vegetable , fruit dried . Also can be sued into plastic resins, electrical originals, such as baking finish.
1. Hot air is circled inside the oven. The hot efficiency is high ,the energy source can be saved.
2. It is use forced ventilation effect, in which there are adjustable points wind board. Drying, heat source materials uniform may be steam, electricity,infrared, choose widely.
3. Low noise, the running balance, automatic temperature, install maintain convenient.
Advantage of food dryer machine
1. Energy saving:Most of the air is circulating inside the drying chamber which can considerably save the energy.
2. Sanitary working condition: The inside surface is lined with stainless steel and full welded. The sealed working condition can make sure sanitary working condition.
3. Uniform drying temperature:air distributor is fixed at each side of the drying chamber to make sure uniform air flow. So the temperature difference between the top and bottom is less than 2 °C.
So the raw material can evenly dried.
4. Easy temperature control: The drying temperature can be easily controlled by PLC control system.
5. Low noise working condition:Heat resisting and low noise circulation fan is combined.
Main technical parameter of food dryer machine
Model |
Number of Trolley |
Number of Plate |
Motor |
Area of the plates |
Productivity |
Dimension (m) |
TZ-1 |
1 |
24 |
9kw |
5.76m² |
50kg/8h |
1.55*0.8*2.2 |
TZ-2 |
2 |
48 |
12kw |
11.52m² |
100kg/8h |
2.1*1.1*2.3 |
TZ-4 |
4 |
96 |
18kw |
23.04m² |
200kg/8h |
2.1*2*2.3 |
TZ-6 |
6 |
144 |
22kw |
34.56m² |
300kg/8h |
2.6*2.1*2.3 |
TZ-8 |
8 |
192 |
30kw |
46.08m² |
400kg/8h |
4*2*2.3 |

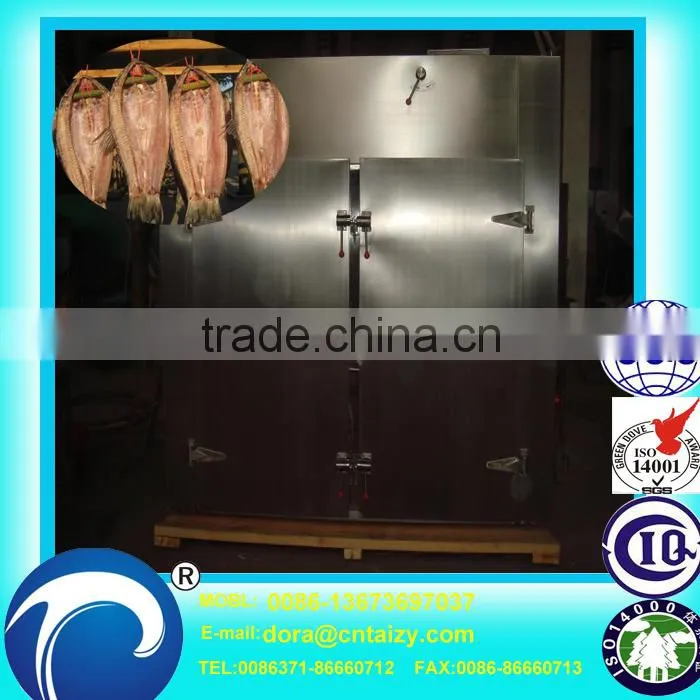

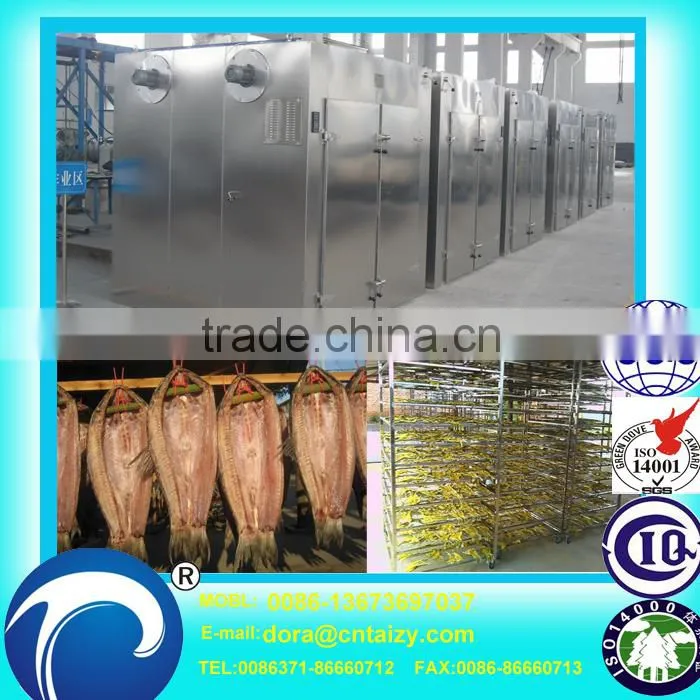

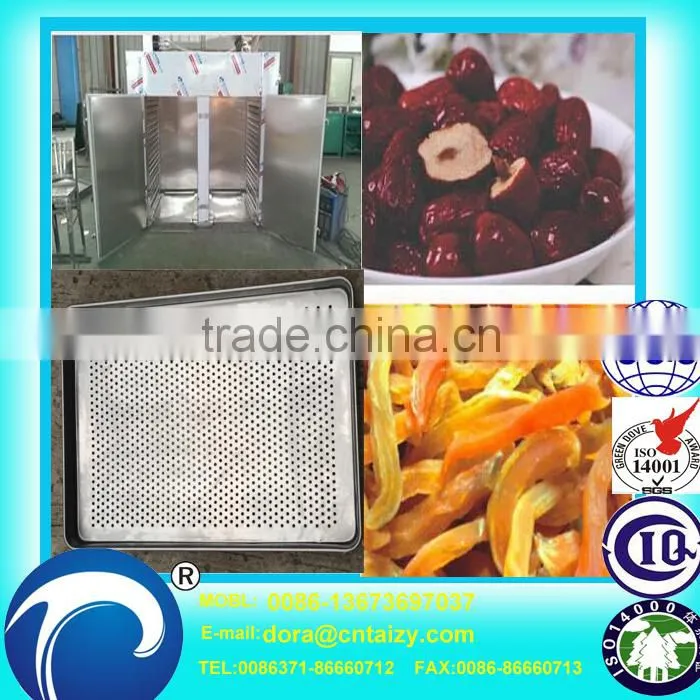

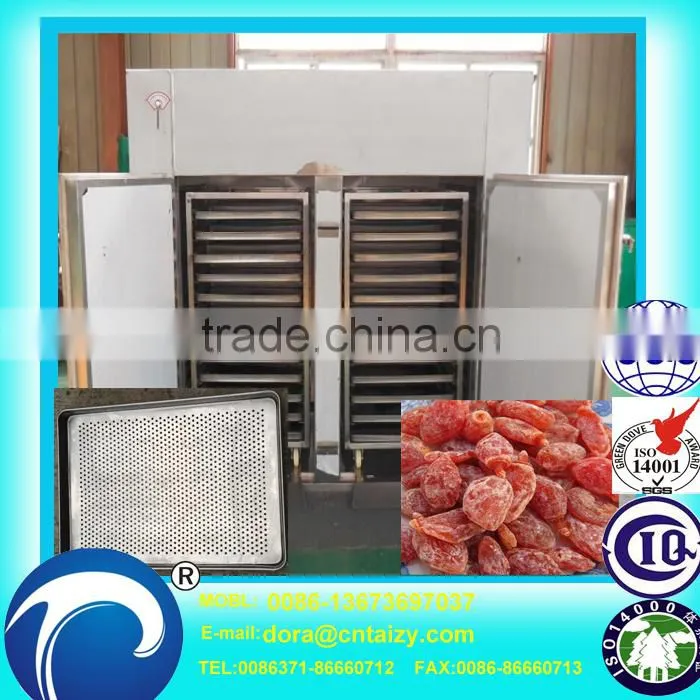

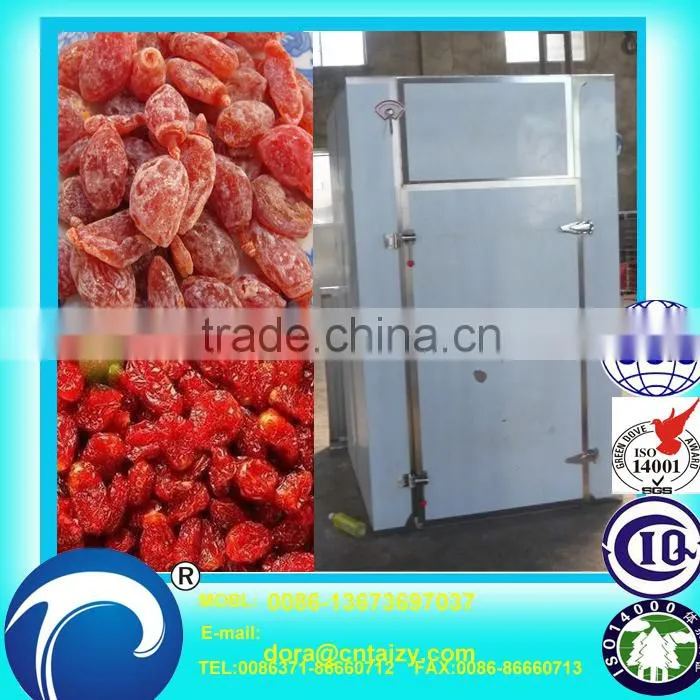

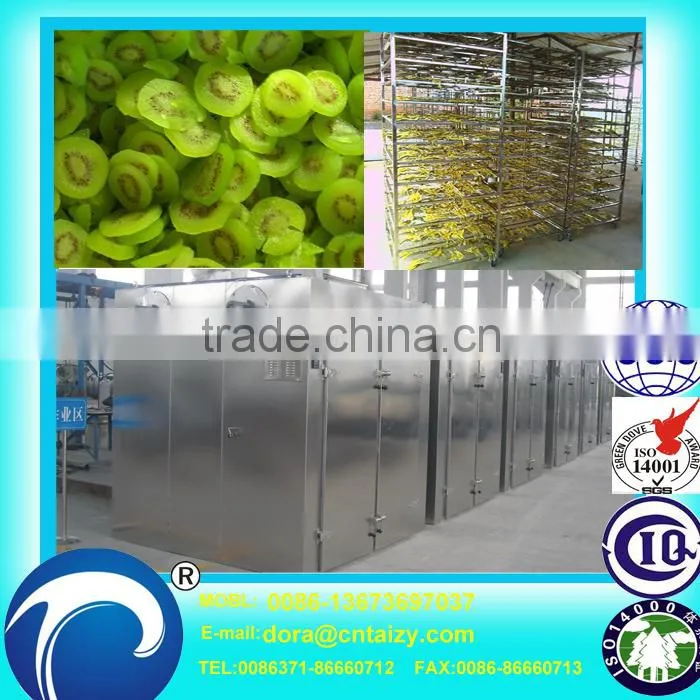

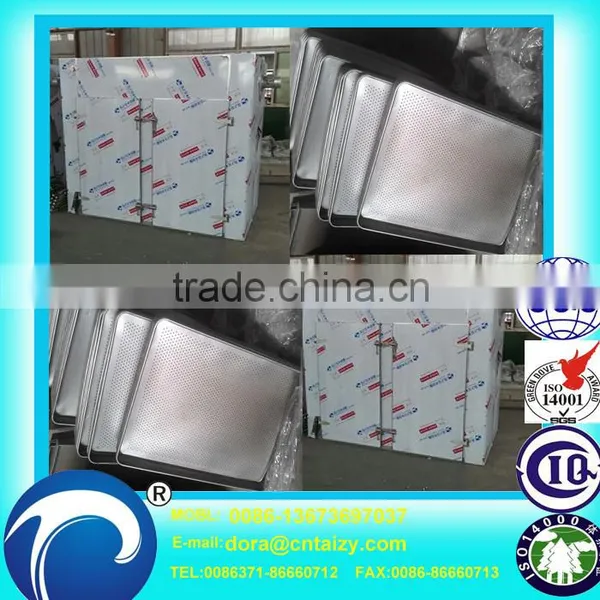

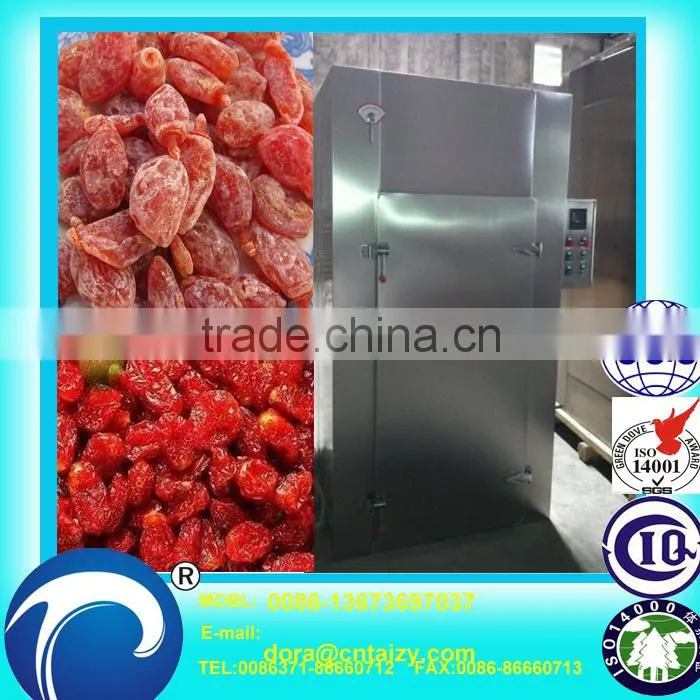

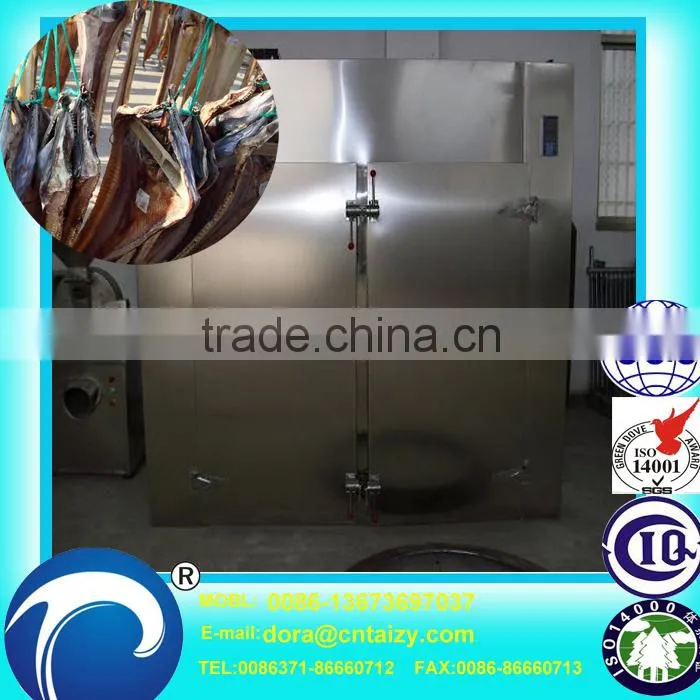

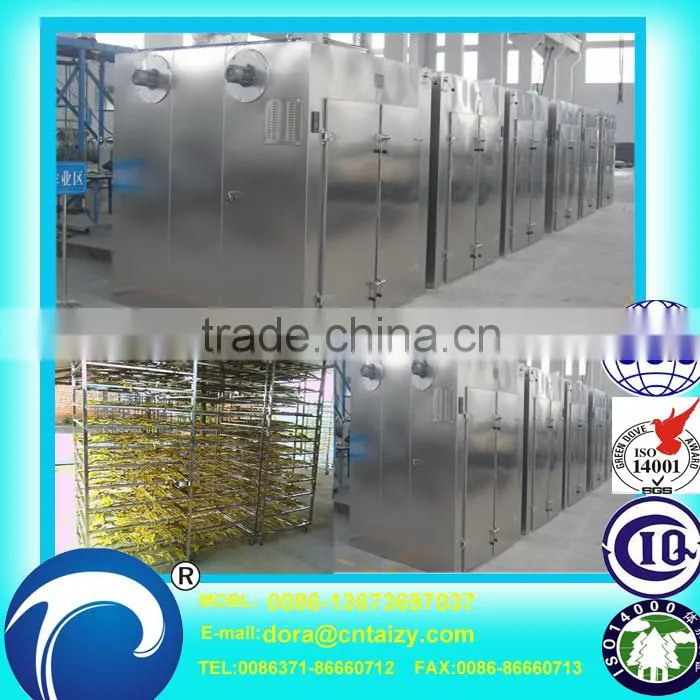

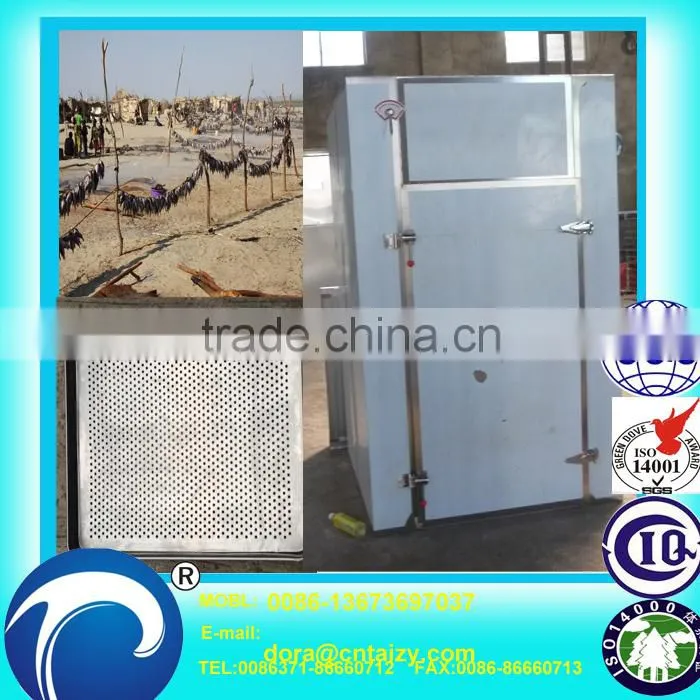

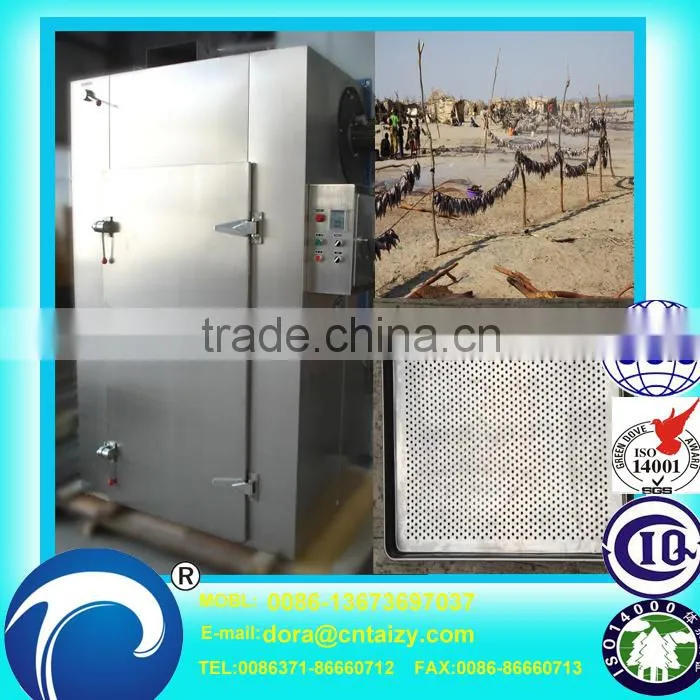

Pictures of food dryer machine
If you have any question,please contact me freely!
