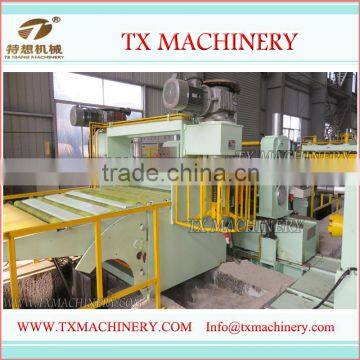

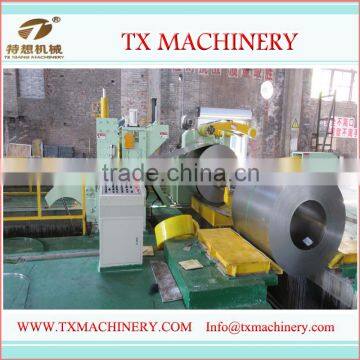

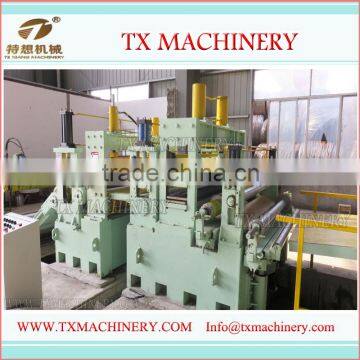

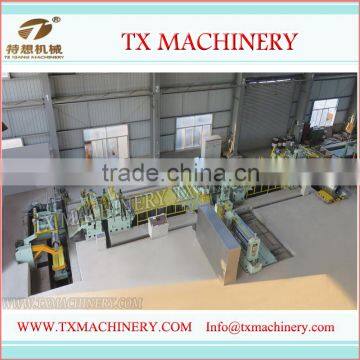

- Name: TX1400 CNC Hydraulic steel sheet slitting machine,steel coil slitting line,slitting
..............................................................................................................................
lHigh quality machines and tooling to achieve high precision slitting quality.
l No marks no scratches on the material.
l High speed: max up to 250m/min.
Features:
...............................................................................................................................
l Low operating costs
l High automation level to reduce non-productive times
l Flexibility from customer-specific arrangement and design
l Fully automatic strip threading systems
l Fully automatic coil peeler for over-payoff and under-payoff uncoilers
l Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing
l Fully automatic adjustment of edge scrap guiding, automatic scraps discharge
l Automatic clamping and unclamping of the cutting tools on the knife arbor
l Automatic strip strand transfer systems
l Special braking units for strips with high surface finish(optional)
Parameters Of This slitting Line
...............................................................................................................................
Description |
Technical Parameters |
|||
|
Raw Material Parameters |
Raw material |
Color Coated Steel |
||
Thickness |
0.3~3.0mm |
|||
Width |
400~1600mm |
|||
Coil OD |
≤Φ1900mm |
|||
Coil ID |
Φ480mm~Φ520mm |
|||
Coil Weight(Max) |
20Tons |
|||
| ||||
|
Finished Product Parameters |
Coil ID |
Φ508mm |
||
Coil OD |
≤1900mm |
|||
Coil Weight(Max) |
Max:20T |
|||
No. of Slit Strip |
Thickness: 3.0mm≤10 strips |
|||
Accuracy of Slit width |
±0.05mm |
|||
Tolerance of Burr |
≤0.05mm |
|||
Minimum Slit Width |
25mm |
|||
Scraps width range |
2~5mm |
|||
|
|
|
|
|
Parameters Of Other Configurations
..........................................................................................................................................
Model |
TX 0.14-1.5 |
TX 0.3-2.5 |
TX 0.3-3.0 |
TX 0.5-4.0 |
TX 1.0-6.0 |
Thickness(mm) |
0.14-1.5 |
0.3-2.5 |
0.3-3.0 |
0.5-4.0 |
1.0-6.0 |
Width(mm) |
500-1850 |
500-1850 |
500-1850 |
500-2000 |
500-2000 |
Line Speed(m/min) |
250 |
230 |
200 |
180 |
150 |
Coil Weight(ton) |
10,15,20 |
10,15,20 |
10,15,20 |
20,35 |
20,35 |
No. of Slit Strip |
35 |
30 |
20 |
15 |
10 |
Slitting Accuracy(mm/m) |
<±0.10 |
<±0.10 |
<±0.10 |
<±0.2 |
<±0.2 |
Tolerance of Burr |
<5% |
<5% |
<5% |
<5% |
<5% |
Recoiling Misalignment(mm) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
Recoiling Looseness(mm) |
≤2 |
≤2 |
≤2 |
≤2 |
≤2 |
Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
