Air flow wood sawdust dryer/Air flow dryer
Product Introduction:
1. It is suitable for drying materials of moisture 20-70%.
2. It is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks
and so on.

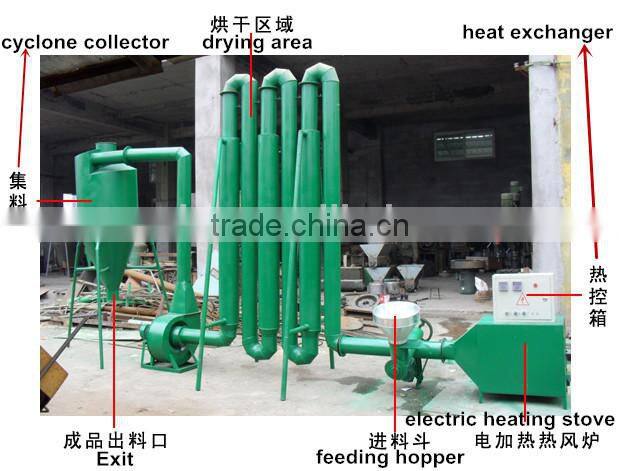

3. It is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and
cyclone. Wet materials are input into the hopper.
4. The fuel boiler generates hot air which mixes with wet materials and then is sucked into
the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though
the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry,
and the dried materials are discharged from the outlet with air lock.
5. It reduces the moisture to 8-12%.
6. Clients can change the angle of dryer base on the production field.
7. It is only to control the moisture of raw material at a reasonable range that can make good
result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
Raw Material:
For raw materials with heavy humidity which is above 12%, you need to install a dryer
before further processing. This Air Current Type dryer can reduce the humidity of wood materials below 12% per time. The Cost of this Air Current dryer is much lower than R-
otary dryer. It is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintenance,
etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.
Technical parameters:
Model |
M600 |
M1000 |
M1500 |
Capacity(kg/h) |
400-600 |
800-1000 |
1200-1500 |
Particle size |
3mm |
3mm |
3mm |
Power(kw) |
5.5 |
7.5 |
7.5 |
Hot Air Temp(°C) |
180-250 |
180-300 |
180-300 |

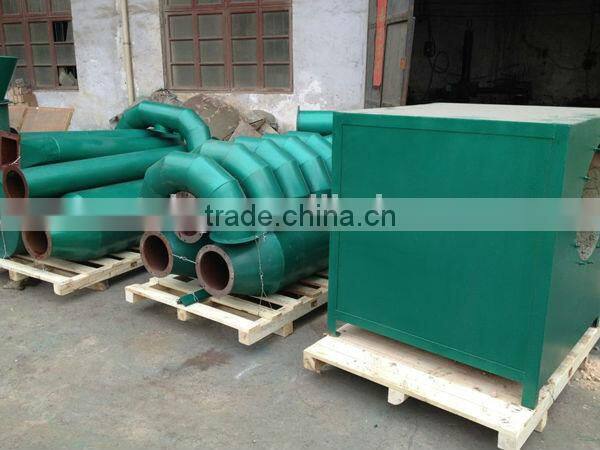

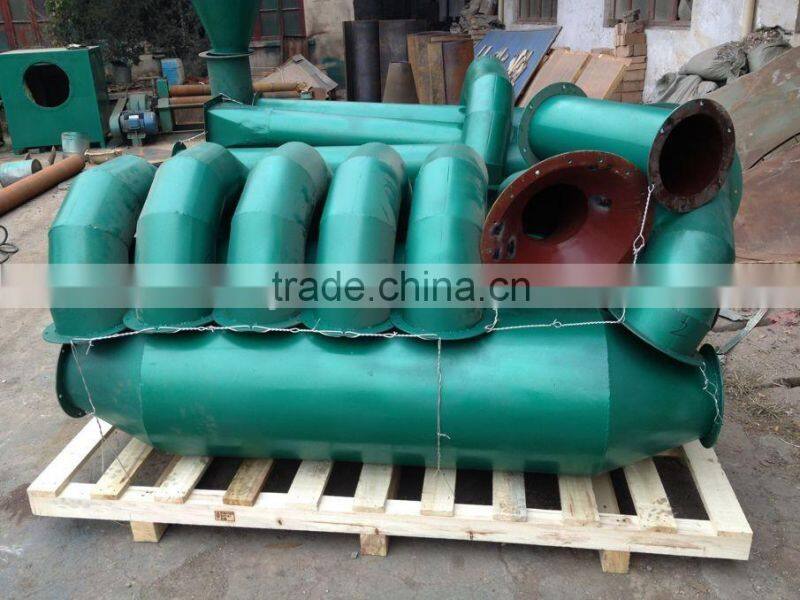

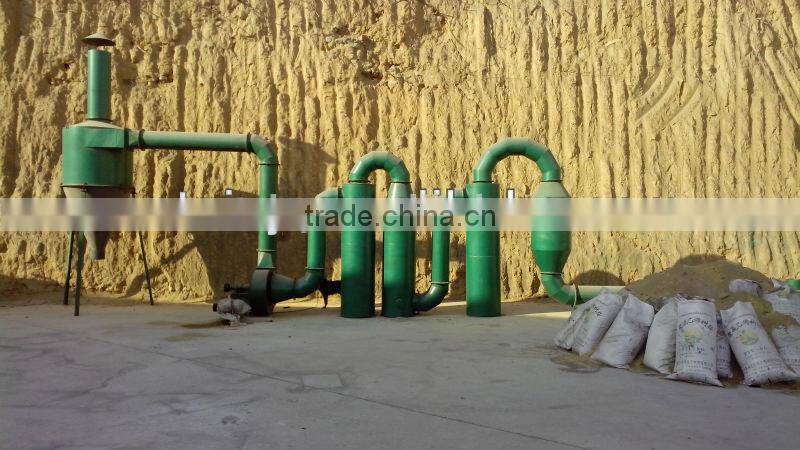

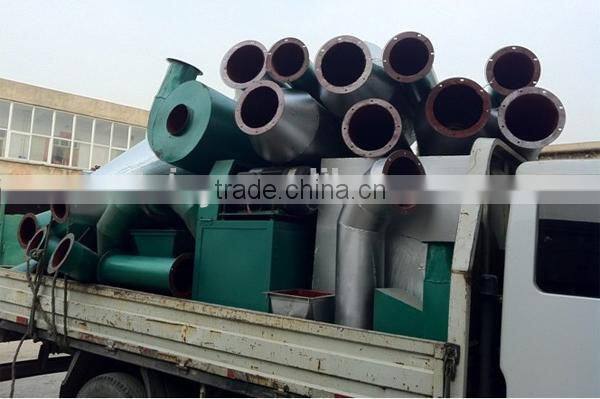

More Pictures:
Please feel free to contact me any time!
