2015 popular selling big capacity pill press machine,pill making machine,pill machine for sale
Contact information
Mobile: 0086-13673685830
Phone No: 0086-371-86660712
Fax No: 0086-371-86660713
Skype: Taizy2031

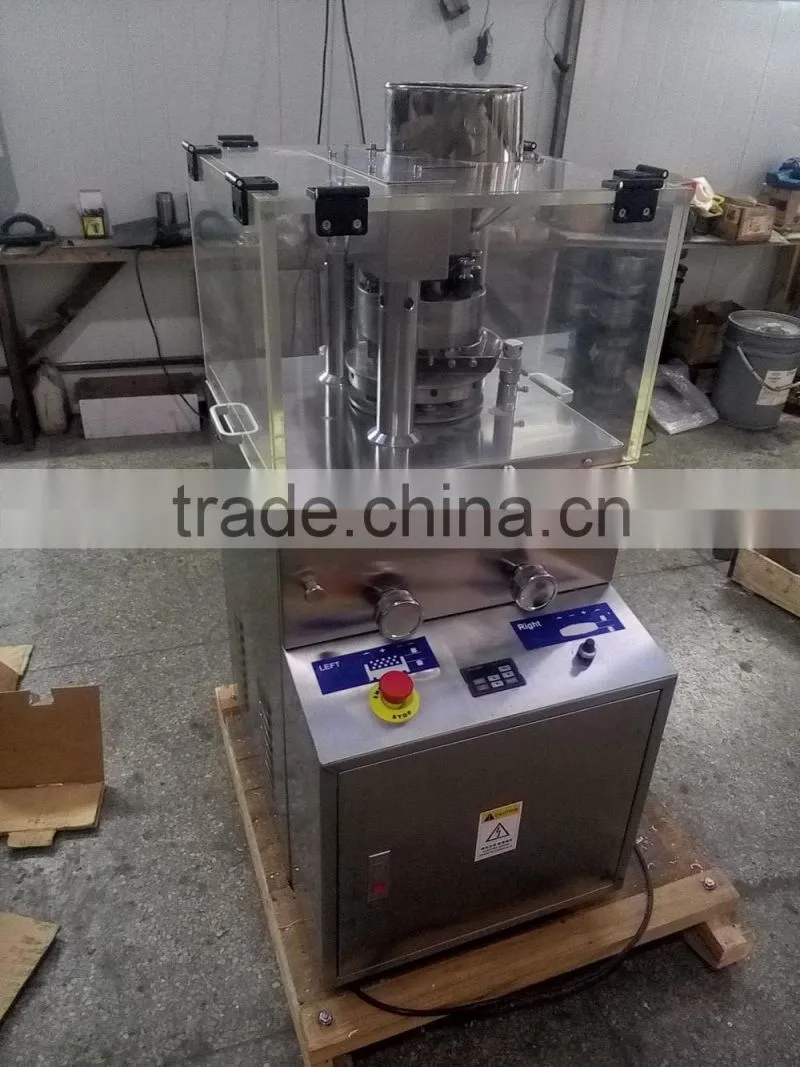

1.Introducton of pill press machine
TZ rotary tablet machine is an automatic rotation, continuous tablets machine miniaturized machines, equipped with overload protection device, when the pressure overload, can automatically shut down. Such a tablets machine to improve the uniformity of the density of the tablet, reducing lobes, loose film phenomenon. The local machine vibration, low noise, low energy consumption, high efficiency and accurate weight of the tablet, is currently the most popular kind of tablet press.
2.Features of pill press machine

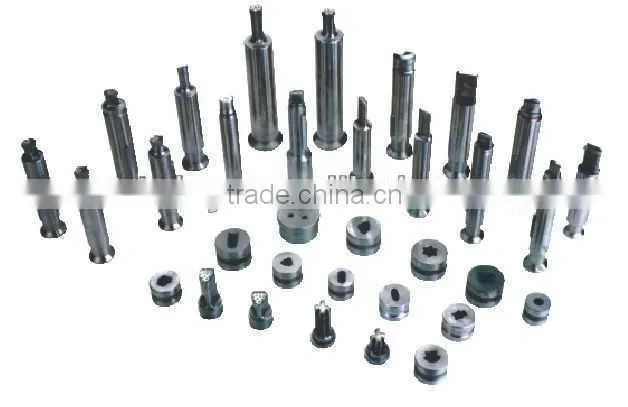

1) A production of various discs and shaped pieces.
2)fitted with transparent glass doors and windows, can be clearly observed for tablets to prevent contamination. Side panels can be opened, easy to clean and maintain. Parts in contact with the drugs are precision machined stainless steel is made to keep surface luster and prevent cross-contamination, in line with GMP requirements. The support frame made of aluminum alloy, the upper and lower independently open, easy to transport.
3) All controllers and the operate parts is reasonable.
4)frequency control devices for electrical control, easy to operate, smooth rotation, safe and accurate.
5) implement mechatronics.
3.Parameters of pill press machine
Model |
TZ12 |
TZ5A |
TZ7A |
TZ9A |
TZ17 |
Punch dies quantity |
12sets |
5set |
7set |
9set |
17sets |
Max. pressing force |
40KN |
40KN |
40KN |
40KN |
60KN |
Max. diameter of tablet |
13mm |
13mm |
13mm |
13mm |
22mm |
Max. depth of fill |
15mm |
15mm |
15mm |
15mm |
15mm |
Max. thickness of tablet |
6mm |
6mm |
6mm |
6mm |
6mm |
Turret speed |
32 r/min |
32r/min |
32r/min |
32r/min |
37r/min |
Production capacity |
9600-18440pcs/h |
9600 pcs/hour |
13440pcs/hour |
17280pcs/hour |
45000pcs/hour |
Motor |
0.75KW |
1.1KW |
1.1KW |
1.1KW |
2.2KW/940r/min |
Dimension |
600*900*1150mm |
650*480*1150 |
650*480*1150 |
650*480*1150 |
615*890*1415 |
Net weight |
300KG |
260KG |
260KG |
260KG |
1000KG |

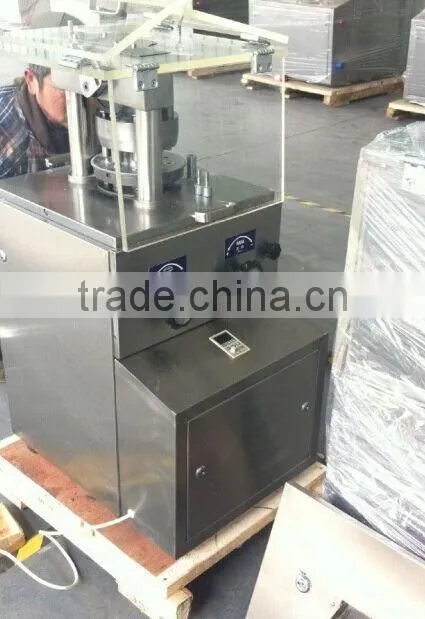

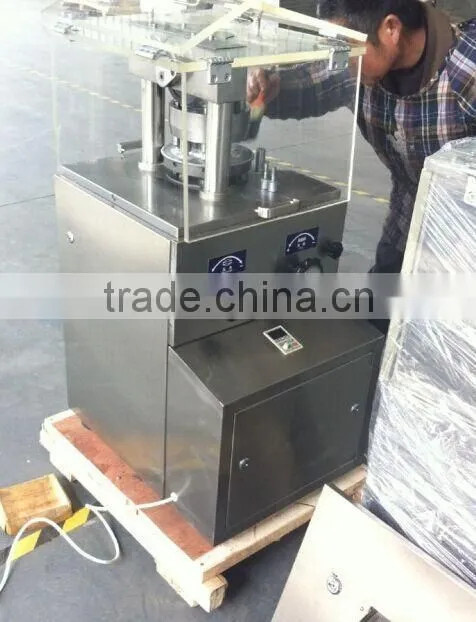

More pictures for you review
