Introduction of screw making machine prices
This machinea doptsp lunger type structures o as to ensuret he features such as high speed, lownoise and less impact. Especially, it can make the high quality of oil rivel nail and other shaped nails usedf or highs peedw eldingn ailer and nail gun.
Features of screw making machine prices
1 .Both of the scrap iron wire and the new steel rod can be used to make nails.
2 .This nails machine can feed the materials automatically.
3 .This nails machine has the features of high speed, low noise, less impact.
4. All the main components are made of quality steel, such as shaft, cams and gear.
5. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the nails cap will be round, every nail will be perfect.
Parameters of screw making machine prices
Technical parameters |
unit |
Z94-5c |
Z94-4C |
Z94-3C |
Z94-2C |
Z94-1C |
Max. diameter |
mm |
6 |
4.5 |
3.1 |
2.8 |
1.6 |
Min. diameter |
mm |
2.5 |
2.8 |
1.8 |
1.2 |
0.9 |
Max. length |
mm |
150 |
100 |
75 |
50 |
25 |
Min. length |
mm |
50 |
50 |
30 |
16 |
9 |
Projected output |
pcs/min |
180 |
280 |
300 |
320 |
460 |
Motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
weight |
kg |
2500 |
2000 |
1800 |
1450 |
1200 |
Overall dimension |
mm |
2600*1650*1750 |
2200*1600*1650 |
2000*1400*1400 |
1700*1300*1400 |
1500*1300*1200 |
Process of screw making machine prices

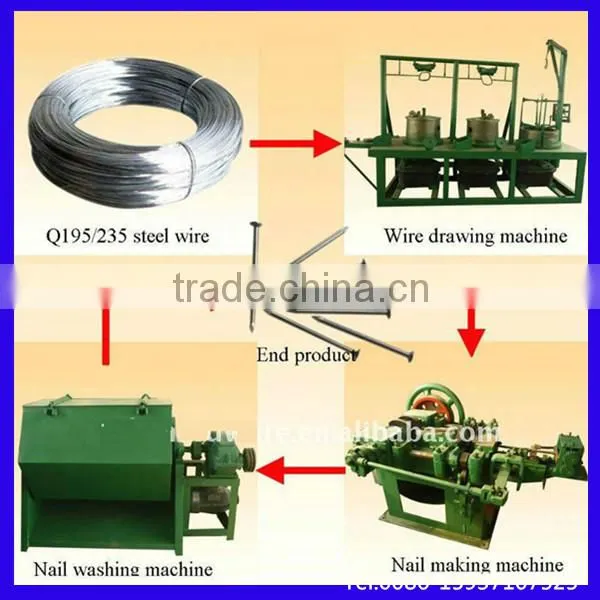

Steel wire--- wire drawing--- nail making --- nail polishing – finished nails

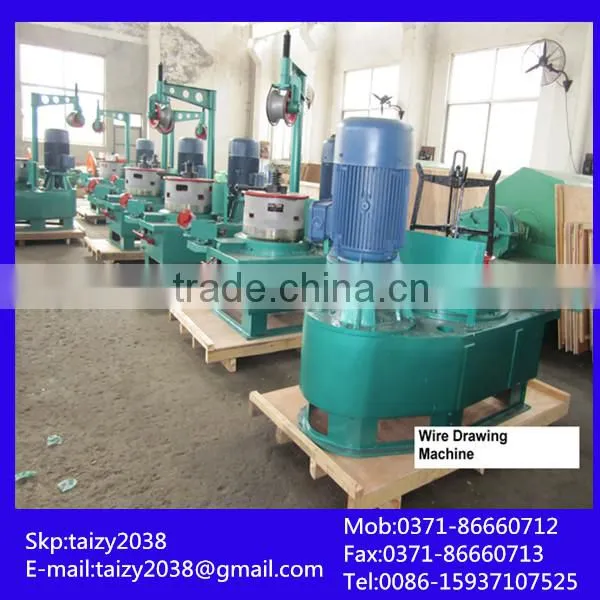

This is the wire drawing machine, it can process the wire thinner, then you can get the diameter that you need.

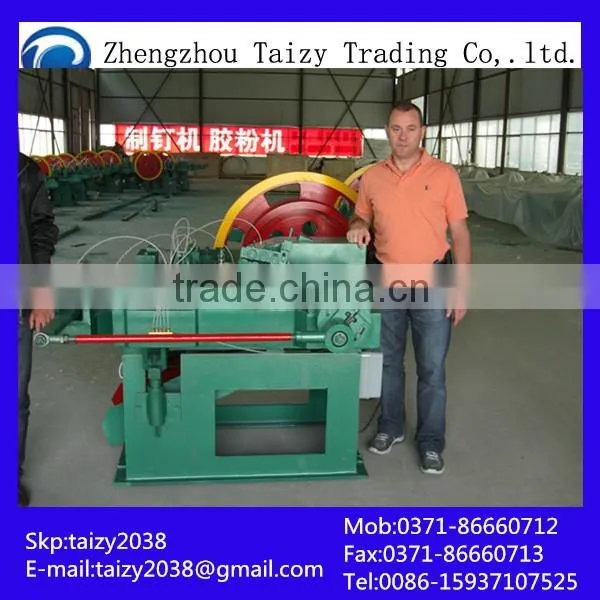

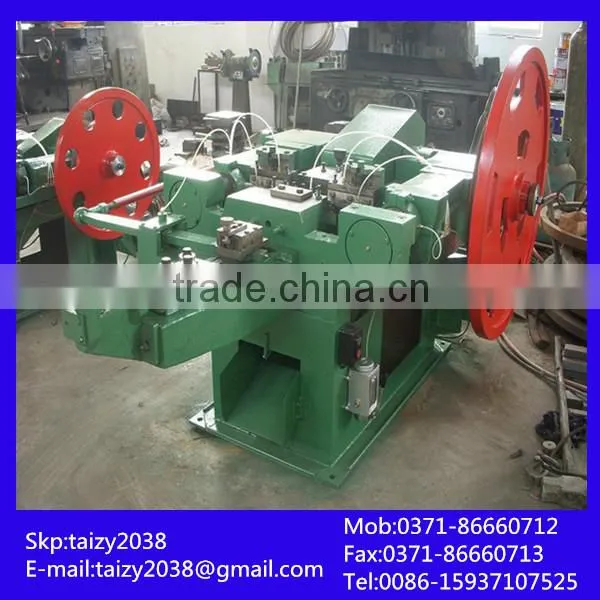

This is the nail making machine, to produce the nails.
This is the polishing machine, to make the nails looks new.
More pictures for you about the nail machine
