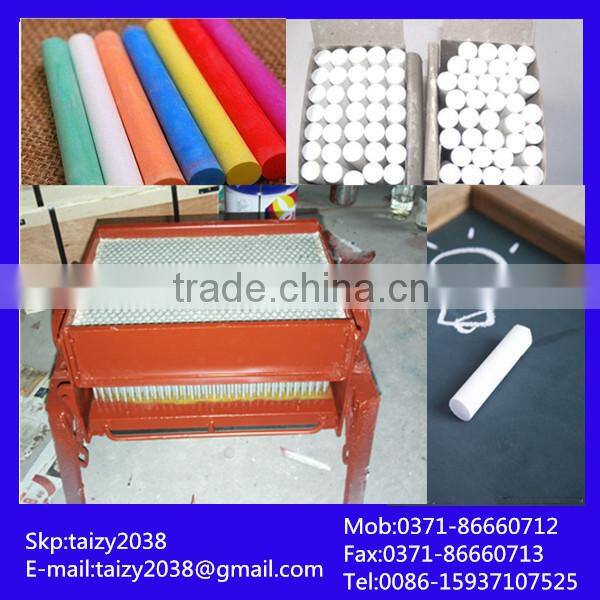

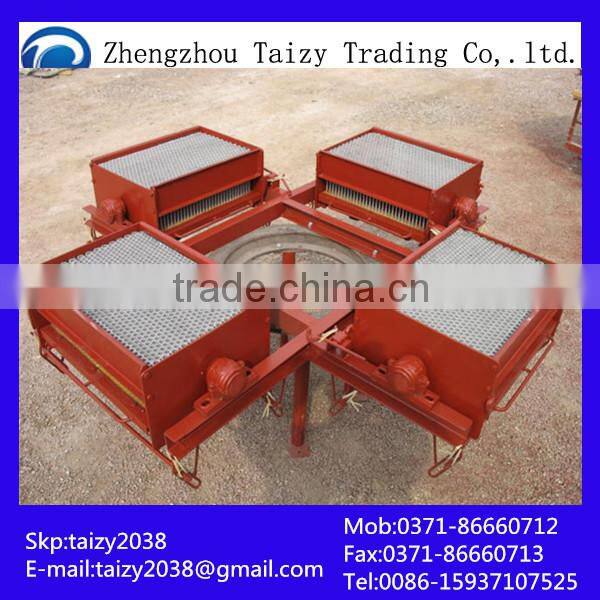

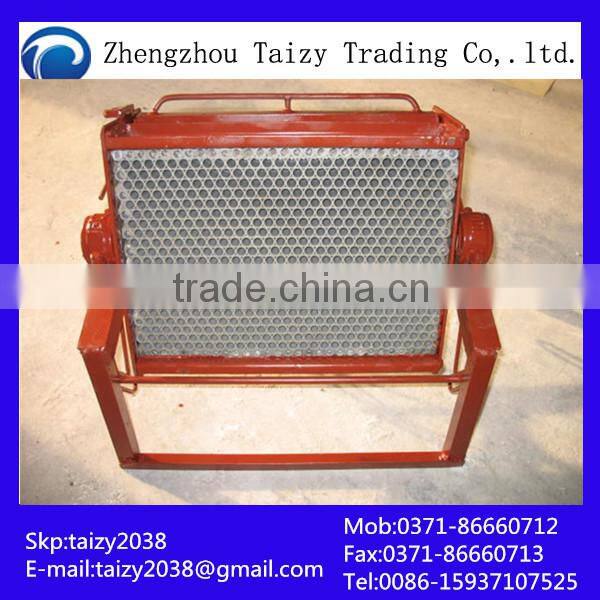

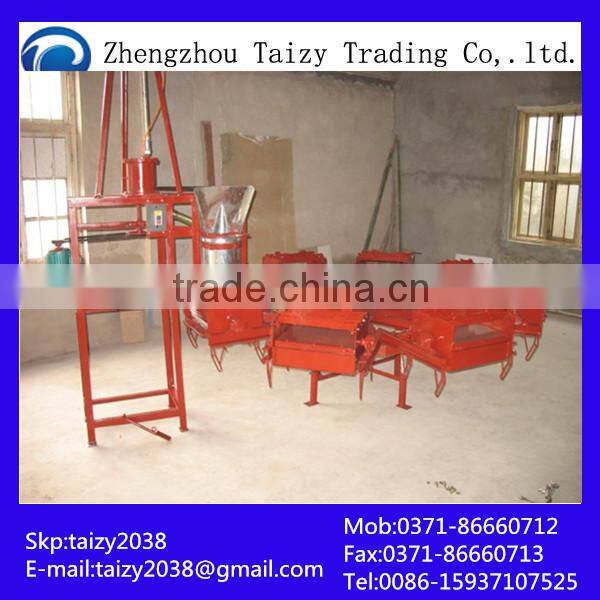

Introduction of blackboard chalk making machine
1.This machine is a new type of practical chalk-producing appliance. It improved the old
disadvantages. Such as inefficiency, high labor intensity. material-wasting, single shape.
2.This machine is in assembly line method. Such as: supplying water automatically, electric beating, grouting and coming out. It has changed the manual operations into electric clutch with water cycling. Greatly decreased workers' labor intensity.
3.Chalk shapes: round square, hexagon and so on. And it's standards ,such as length ,thickness, can be ordered according to the needs of customers.
Features of blackboard chalk making machine
Automatic machine
Operated easily and high output
Advanced design

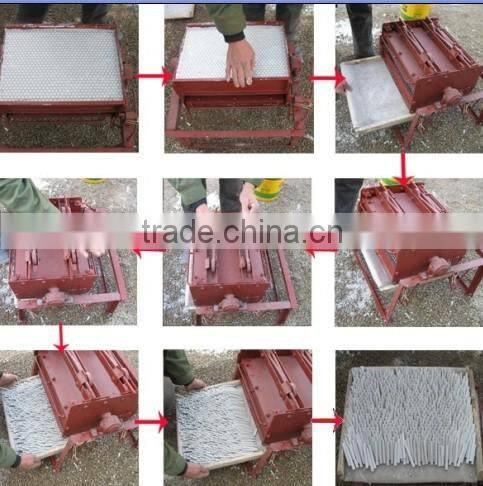

Process of blackboard chalk making machine
1.Lubricating the moulds with oil uniformly.
2.Water: turn on the supplying switch, then the water in the pail can be put into the agitation vat.
3.Pouring gypsum powders: Put the quantitative gypsum powders into the agitation vat and close the cover.
4.Mixing the material: Switch on the power switch and mix materials about 10-20 seconds.
5.Filling the moulds: Open the switch in the bottom of the agitation vat and then pour the materials into the mould.
6.Pushing out the chalks: Turn the mould in reverse and put the tray into the mould, then rotate the ejection structure to push-out the chalks.
Parameter of blackboard chalk making machine
Model |
Capacity |
Weight |
Volume |
TZ800-1 |
6,000-8,000 pcs/h |
70 kg |
0.8 m3 |
TZ800-2 |
8,000-12,000 pcs/h |
300 kg |
1.65 m3 |
TZ800-4 |
12,000-24,000 pcs/h |
400 kg |
2.5 m3 |
TZ800-6 |
24,000-32,000 pcs/h |
650 kg |
3 m3 |
TZ800-8 |
35,000-48,000pcs/h |
820 kg |
3.5 m3 |
|
Remarks: the size of the chalk: the diameter of two heads are 10mm and 8mm. The length is 75mm.Or we can produce mold as your requirement. | |||
