hot sale stainless steel grinder machine
Mobile: 0086-13673685830
Phone No: 0086-371-86660712
Fax No: 0086-371-86660713
Skype: Taizy2031
1.introduction of stainless steel grinder machine
It can processing pepper,wheat,corn(maize),soybean,sorghum and other crops, Also can be used for processing spices, rubber, chemicals and other items.final products is flour or grits. Features: one-side milling, easy to operate.
2.Structure and working principle of stainless steel grinder machine
1), the structure: It includes main cabinet, door, turbo, spindle, screen, pulleys and motors and other component parts.
2), Working principle:
When it works, the motor drive shaft and the turbine speed rotation. Ring on the turbo and the screen broken grinding blocks, grinding vice, when the material from the hopper into the machine chamber, the material in the rotation of the turbine air flow closely friction and impact strongly on the inside of the turbine blades and vanes the gap between the blocks and grinding grinding again. In the crushed material while inhaling a lot of air turbine, which has played a cooling airflow machines, grinding materials and fine material transfer effect. Depends on the fineness of grinding material properties of the material and the mesh size, and the throughput of the material and the air.
3), Bearing parts equipment with a special labyrinth seal, can effectively prevent dust from entering the bearing cavity, thus extending the service life of the bearing. Machine equipped with a silicone rubber door seals, no dust leak and contaminate the operating environment.
3.Features of stainless steel grinder machine
1), Strong crushing ability, low energy consumption, product fineness relatively small.
2), large crushing chamber, turbo pressure generated during operation of high-strength, not only to increase production capacity and reduce the over-crush phenomenon, and can effectively avoid the material produced in the grinding process on the screen deposition and clogging. You can also maximize strength and pressure to take away the heat generated by crushing cavity.
3), due to enhanced shear, and therefore for the fibrous material and the grinding capacity equipment than the average high.
4), screen installation convenient, reliable positioning, are used plug-in. Will ring sieves with respect to the form of life a lot higher.
5), Built-in motor, lower the machine's center of gravity, effectively reducing device noise.
4.Product parameter of stainless steel grinder machine
MODEL |
TZSF-20B |
TZSF-30B |
TZSF-40B |
TZSF-60B |
Output(kg/H) |
60-150 |
100-300 |
160-800 |
200-1200 |
|
Rotated Speed (r/min) |
4500 |
3800 |
3400 |
2600 |
Mesh size |
12-120 |
|||
Size of raw material |
<6 |
<10 |
<12 |
<15 |
Motor(kw) |
4 |
5.5 |
7.5 |
15 |
weight |
350kg |
420kg |
580kg |
750kg |
Size(m) |
1.1*0.5*1.65 |
1.2*0.6*1.65 |
1.35*0.75*1.7 |
1.65*0.95*2.1 |

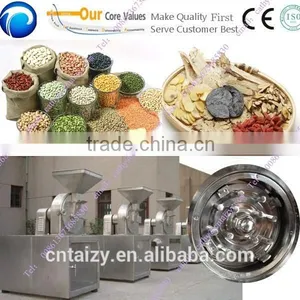

5.The products our machine can grinding

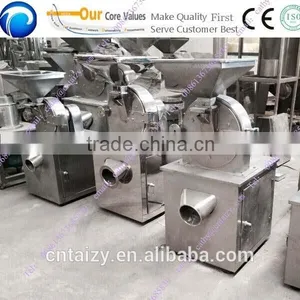

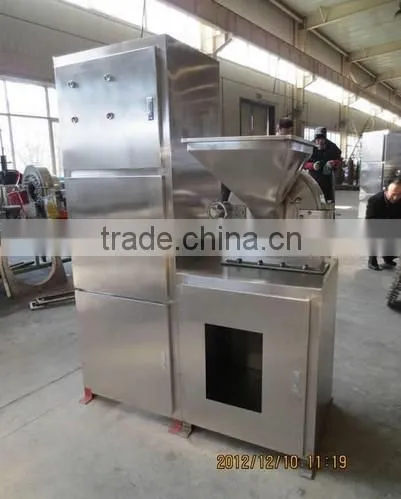

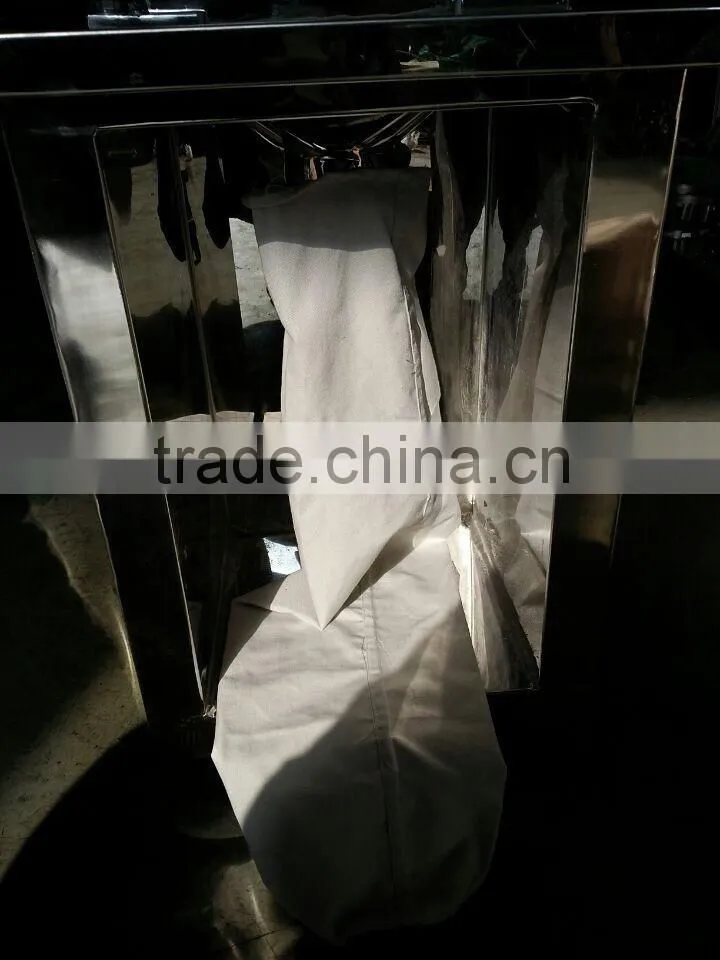

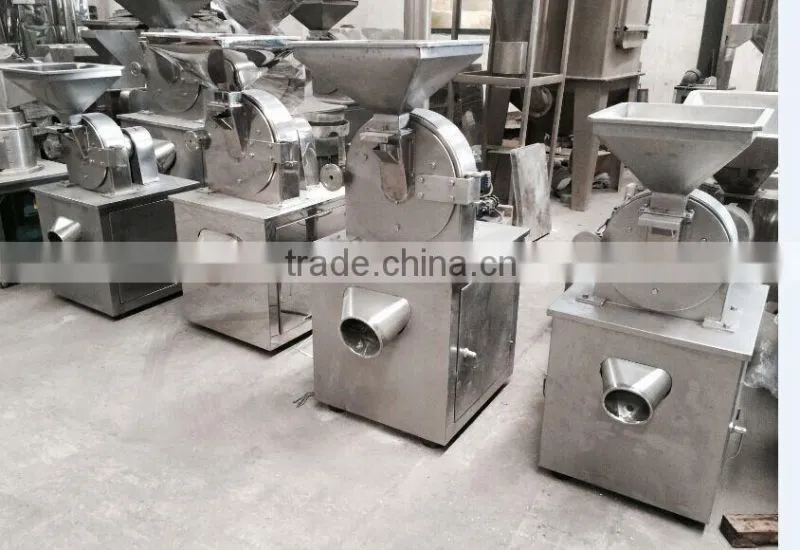

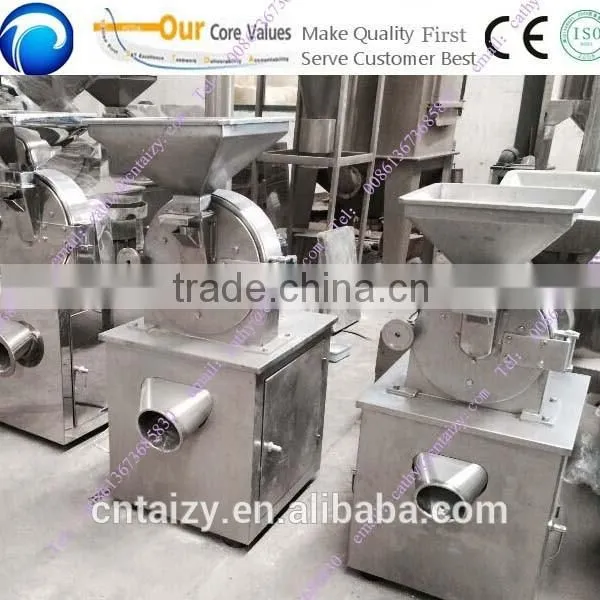

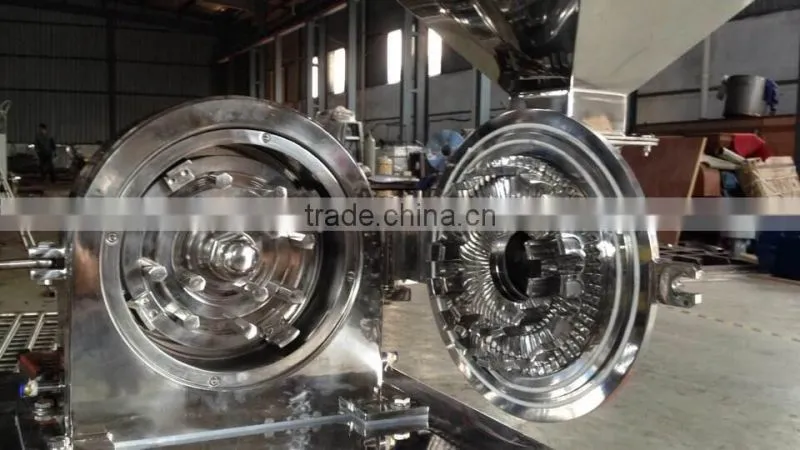

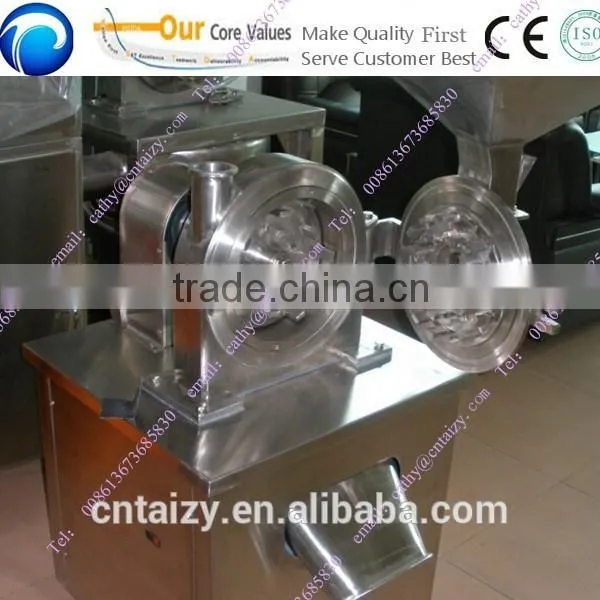

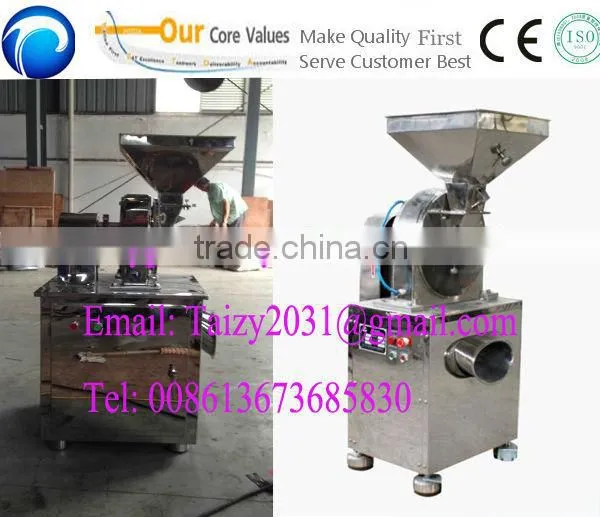

6.Detailed picture of our machine
Our customer

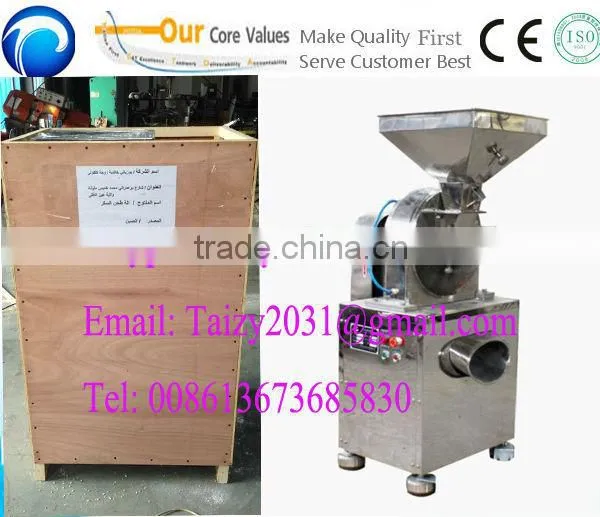

Packing and shipping pictures
purchase process
contact me freely
