2 Channel (2.0)100W Stereo Power Amplifier
* 50 Watts X 2 (8 Ohm)
* 75 Watts X 2 (4 Ohm)
* 160 Watts mono bridged
* Auto switching dual inouts
* A / B speaker output switching
* Signal sensing "power on" and Trigger mode
* Main / Interrupt priority input switching
* Main auxiliary output
* Front panel balance and volume controls
* Rear mounted treble and bass controls
* Ultra rigid chassis construction to minimize the effects of external vibrations
Specifications of the stereo amplifier:
| Product name |
Home theater stereo power amplifier |
|
Output power |
Stereo 50Wx2 (8 ohm),<1% THD+N |
| Output power |
Stereo 75Wx2 (4 ohm),<1% THD+N |
| Output power |
Bridged Mono 160W (8 ohm),<1% THD+N |
| Frequency response |
10Hz - 30K Hz |
| Input sensitivity |
700mV input for rated 50W output into 8 ohms |
| Signal to Noise Ratio |
100dB below 50W output into 8 ohms, with 20kHz lowpass filter |
|
Inputs |
Main input RCA , interrupting RCA, 2 channels can be switchable |
| Outputs |
2 X stereo speaker terminal output, 2 pairs output A / B can be switchable, 2 X mono bridge output, main RCA |
| Channel separation |
65dB @ 1KHz,referred to 50W output into 8 ohms |
|
Bass / Treble control |
+/- 12dB @100Hz and 10kHz |
| AC power consumption |
200W maximum |
| Dimension |
430*55*194 mm |
| Net weight |
2.2 kgs |
| Color |
Black |
Operations guide for the preamplifier:

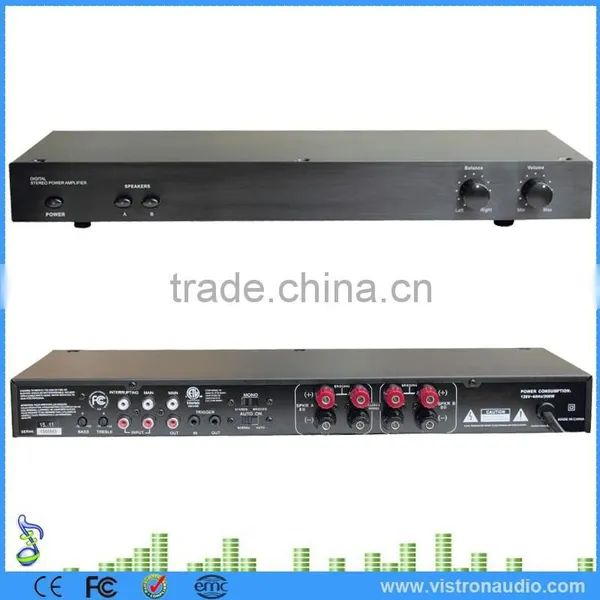

Front panel controls of the stereo power amplifier:

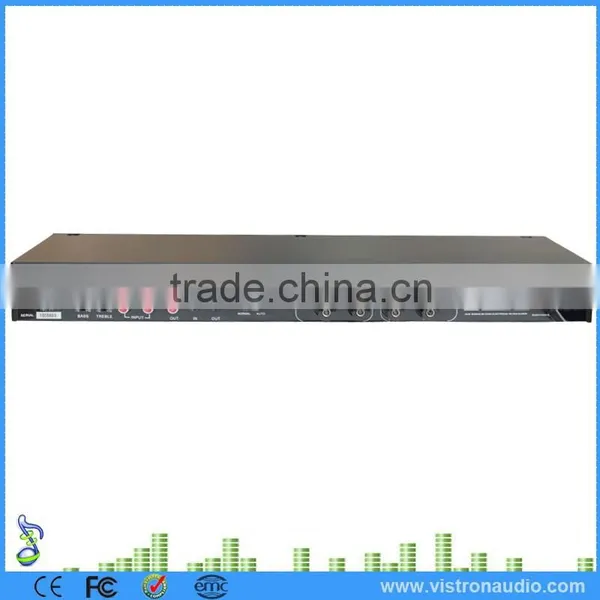

Rear panel controls of the stereo power amplifier:

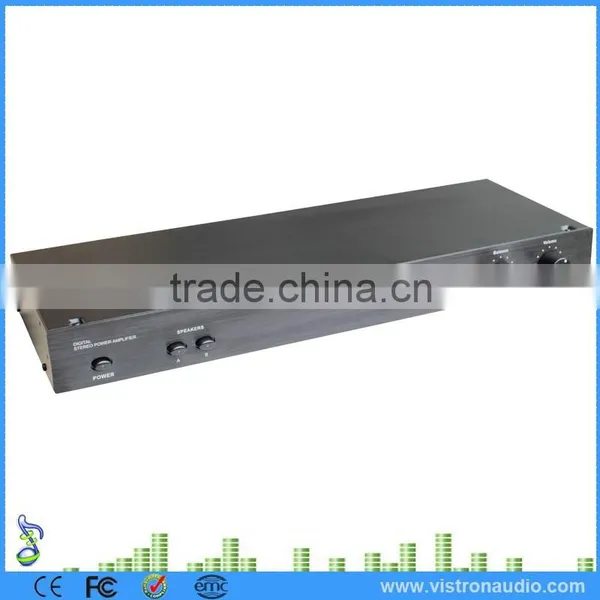

Pictures of the power amplifier:
front panel of the VAMP-100 power amplifier
