Specifications
hot induction ASTM A-403 WP304 High Yield Carbon Steel Bends14 years manufacturing experience
Wall thickness: SCH10S-SCH160
Product Name: hot induction ASTM A-403 WP304 High Yield Carbon Steel Bends Product Description:
1) Material: A234-WPB. A420-WPL6. A234-WP12. A234-WP11. A234-WP5. A403-WP304. A403-WP304L. A403-WP316. A403-WP316L.
2) Bending Radius (R): R=3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D ....20D
3) Bending Angle (θ): Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
4) Straight Length (L): The length between two ends general from 300mm-1500mm, and also can product according to the clients' requirement to product.
5) Outer Diameter (D): D≤1220mm
6) Wall Thickness (T): T≤120mm
7) End Bevel: According to the bevel of welding pipe fittings construction
8) Weight: Weight (Kg)=[0.0433(D-T)TRθ]/100000+L(the weight of two ends straight bend)
9)Surface Treatment: shot blasted(SS), dull polish(SS), pickling(SS), black painting(CS), galvanzing(CS),transparent oil(CS), hot galvanzing(CS)
8)Usage:power,chemical use,metallurgy, shipbuilding,petroleum,gas,mechanism,construction.

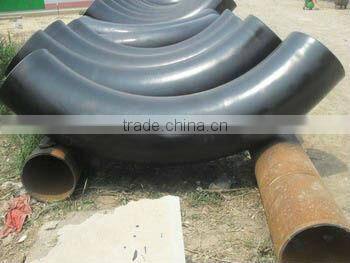

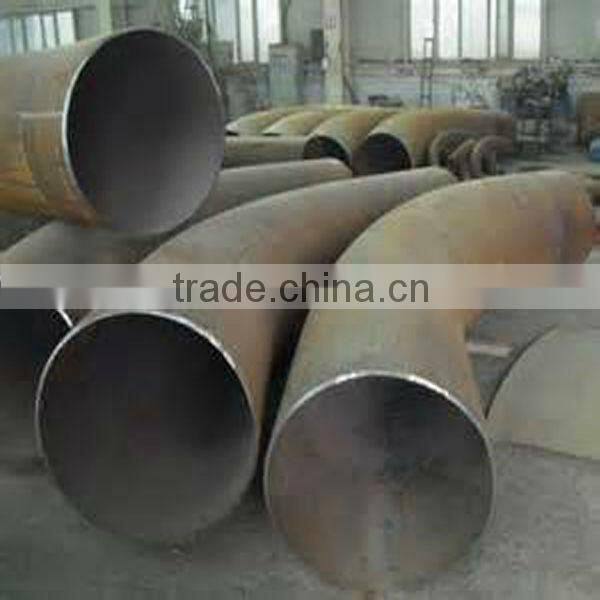

Product images:
Our Advantages:
a. Special design available according to requirement
b. Anti-corrosion and high-temperature resistant with three layers anticorrosion .
c. The whole producing process is made under the ASME B16.9 strictly.
Quality Assurance:
ISO9001, API, CE - Full testing certificates and document pack supplied with all fittings, we meet all international standards and requirements. All our fittings are made to any spec required and are fully compatible with all other brands of product.
Contact information:
Contact: Cindy Wang
Zhengzhou Wanda Pipe Fitting Manufacturing Co., Ltd
Add.: North, Xin gang Avenue, Airport district, Zhengzhou city, Henan province, P.R. China
Skype: cindypipe0602
Tel: +86-13140110167 / 0086-62538208-804
Fax: +86-62538178

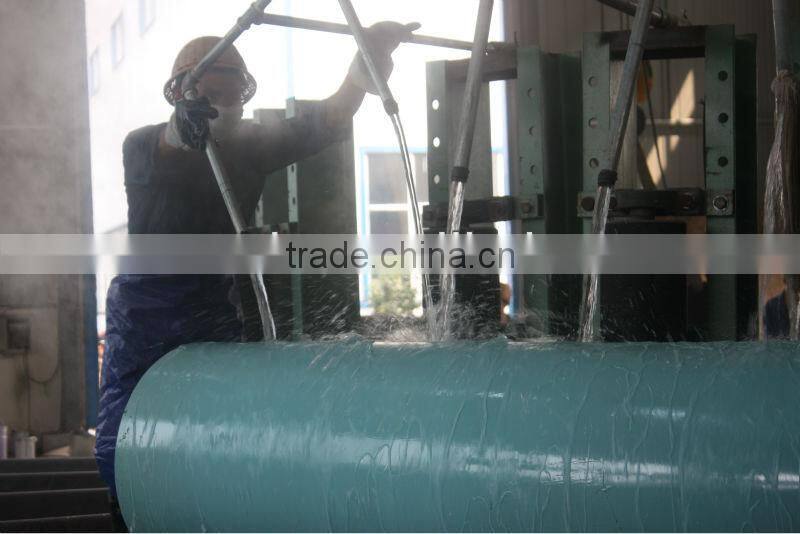

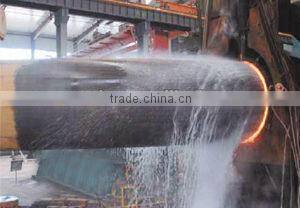

Factory Scenes:

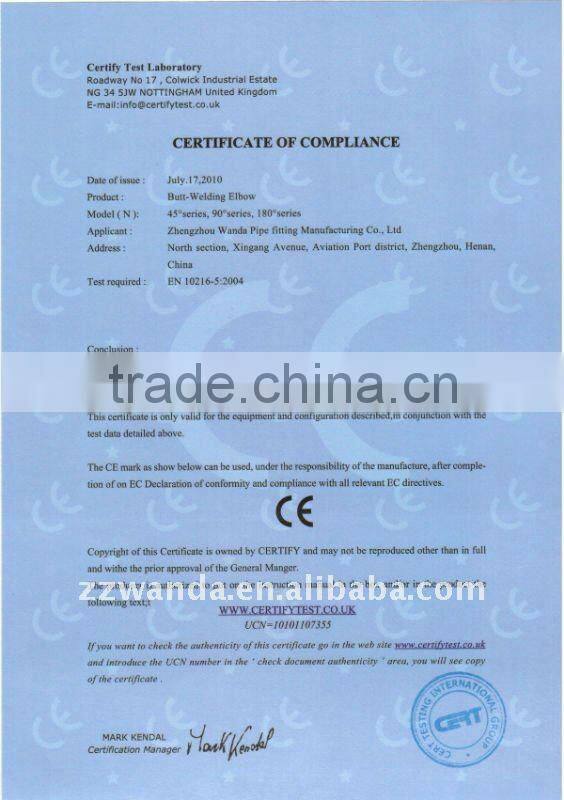

Certificates Approved
