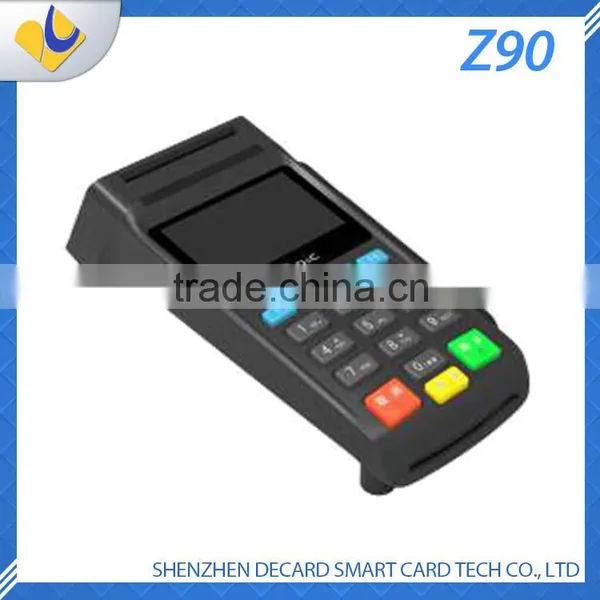

Magnetic Stripe Card Reader With Keypad
Provide function library of universal interface
Iso7816 Is Avilable
Support OS Windows 98,Me,2K,XP,2003,Unix,Linux
Specifications
Central Processor |
32bit CPU |
|
|||
Storage |
16/32/64M FLASH |
Match |
|||
8M/16M/32M PSRAM | |||||
Display |
Main display |
128×64 dot-matrix LCD,multi-language support |
Optional |
||
192×64 dot-matrix LCD,multi-language support | |||||
Indicate Light |
4,from left to right: blue yellow green red |
|
|||
Press Key |
Built-in 17 press key, support keyboard inserted |
|
|||
Voice |
voice broadcast support |
Match |
|||
Buzzer |
Support |
|
|||
Peripheral Interface/Communication Mode |
Direct outlet |
Two USB interface |
HID(USB non-director) |
|
|
Direct outlet |
One DB9 interface One USB interface |
RS232 Baud rate115,200 bps |
|
||
Direct outlet |
One USB socket |
available for external password keyboard |
|
||
Bluetooth |
Support |
|
|
||
NFC |
Support |
|
|
||
Mag-stripe Card Reader |
1/2/3 rail track read,two-way and single side card use |
Match |
|||
IC Card Reader |
2 |
|
|||
Certificated with ISO/IEC 7816 |
|
||||
Support T=0,T=1 CPU card, simultaneously support universal storage card AT24 series,4442,4428... | |||||
T=0:9600-38400bps,T=1:9600-115200bps |
|
||||
Card contacts can be used to 20,0000times |
|
||||
Contact-less Reader |
Support ISO/IEC 14443 Type A/B card, Mifare card,ISO15693 E -tags; Read distance is over 4CM; |
|
|||
SAM Card Slot |
4 card slot,certificated with ISO/IEC 7816 |
|
|||
Power Supply |
Serial interface or USB interface, DC5V±5% with over-voltage protection |
|
|||
Real-time Clock |
Built-in real-time clock |
|
|||
Operating Systems |
Windows 98,Me,2K,XP,2003,Unix,Linux |
|
|||
Encryption Mode |
Encryption mode |
Software encryption |
|
||
Encryption algorithm |
DES,3DES,RSA |
||||
Working Environment |
Temperature:-20℃~60℃ |
|
|||
Humidity:5~93percent(non-condensing) |
|
||||
Storage Environment |
Temperature:-20℃~70℃ |
|
|||
Humidity:5~95 percent(non-condensing) |
|
||||
Dimensions |
186*77*40.7mm |
|
|||
Weight |
|
|
|||
Others |
Provide function library of universal interface; Support various of operating systems and language development platform; Online upgrading is available; Support customization and development.
|
|
|||
Match line |
Direct outlet 1.5M two USB interface line cable;
|
Optional |
|||
Direct outlet 1.5M one DB9 interface,1 USB interface line cable. | |||||
Direct outlet 1.5M one RJ11 socket and two USB interface(or one DB9 interface,1 USB interface)line cable, | |||||
Carton Box
Netural Packaging
Support Customization
The shipping way depends on your customer's decision
Free sample is avilable with freight to be collected
