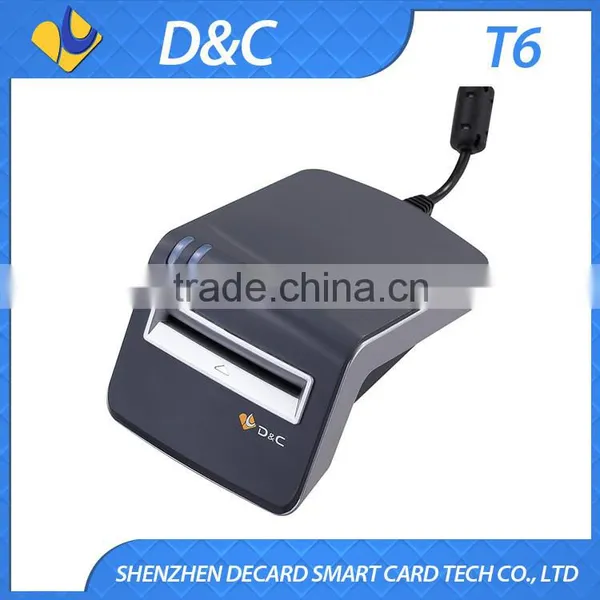

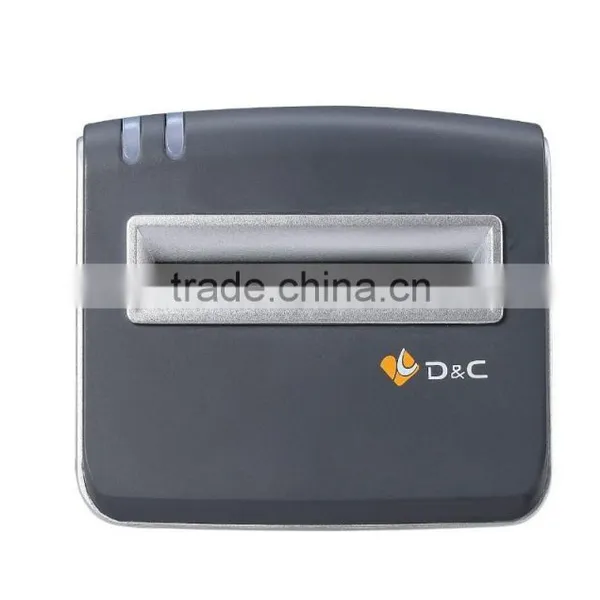

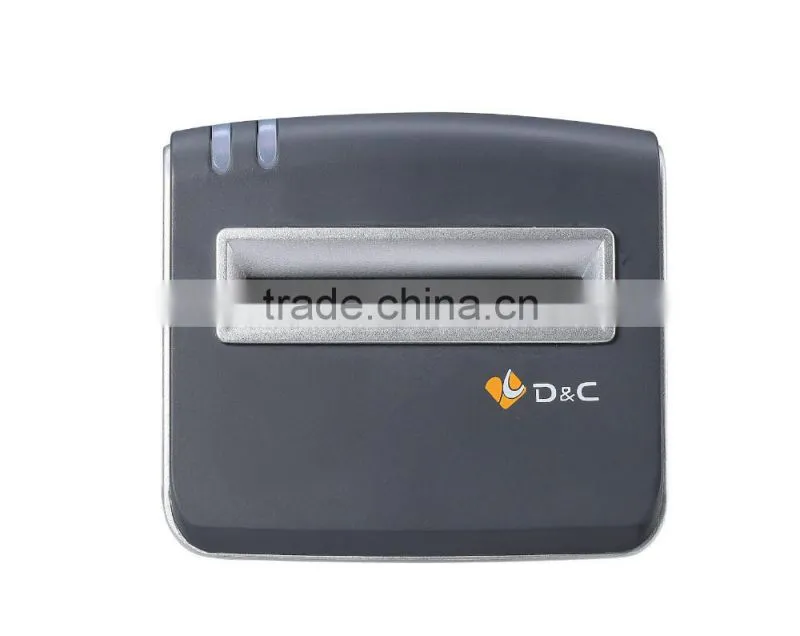

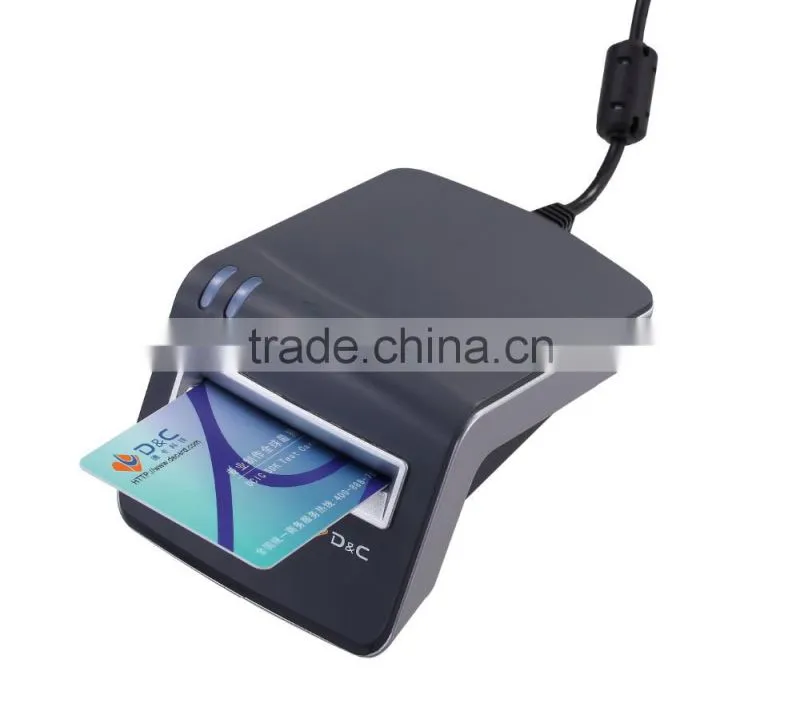

Tablet Chip Card Reader With USB and RS232 Interface

Name: Tablet Chip Card Reader With USB and RS232 Interface
Brand: Decard
SKU: 122659149
Availability: InStock

US$ 18 - 23 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Decard

Model Number:

Shenzhen Decard Smartcard Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Decard

Model Number T6

Tablet Chip Card Reader With USB and RS232 Interface

Mostly supports 4 card slot

Adds 2 built-in SAM card slot.

Optional 16M,32M,64M Mobile storage capacity (can be customized)

Product Description

Specifications

Name
Weight	350g
Temperature range	-20~60ºC
Life span of card contacts	20,0000 times
Support card dimensions	Mostly support two ISO7816 IC card,with two SAM card slot for GSM11.11 (optional)
Mobile storage capacity	Optional 16M,32M,64M(can be customized)
Encryption function	Optional
Supply current	0-70mA
Communication types with PC	RS232,Low Speed USB(USB 1.1), No-driving tech
Communication protocols	Supports T=0,T=1 CPU card,all types of common storage card,logistics encryption card,Communication rate of up to115,200 bps
Certifications	ISO 7816-3,PC/SC,GSM11.11,FCC, CE
Communication rate	T=0:9600-38400bps,T=1:9600-115200bps
Peripheral color	As picture,can be customized
Connect cable	1.5M USB connection line
Display	2 LED indicator light,indicate power or communication status
Operating system	Windows 98,Me,2K,XP,2003 Unix ,Linux
Dimensions	140mm83mm60mm
Others	Provide function library of universal interfaces,and support various of operating systems& language development platform; Support online upgrade function; Provide development and customization of middle-ware ,such as CSP, PKCS#11; Provide security software’s applications and customization ,Windows Login and VPN...
