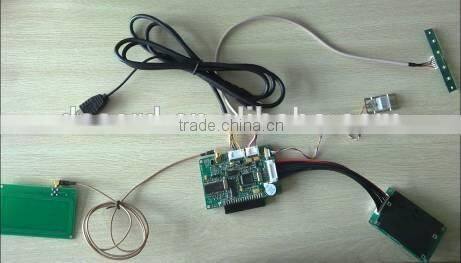

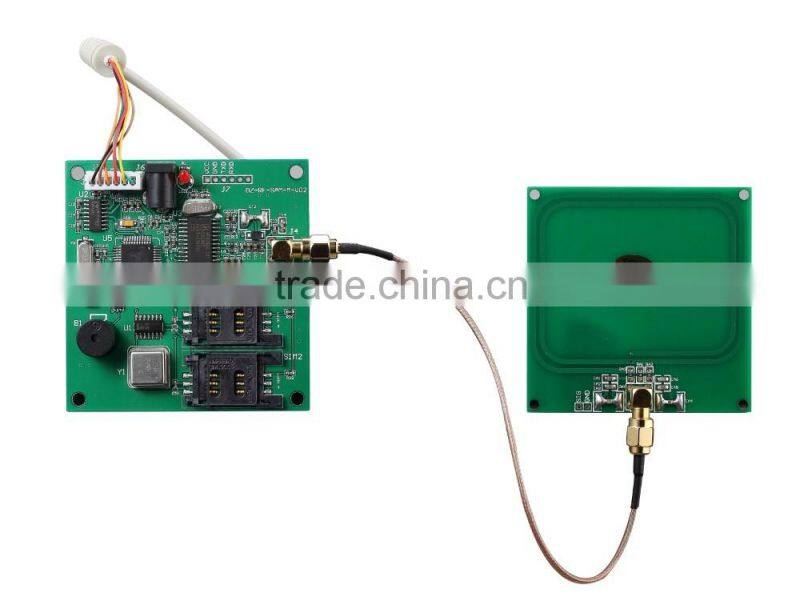

USB Interface Contactless Smart Card Reader From Chinese Factory
(1)With optional RS232 or USB interface.
(2)Support contact&contact-less card ,mag-stripe card .
(3)Available for being embedded into financial IC card ,public security card,social security card, public card and city all-in-one card applications like self-service terminal ATM machine financial terminal ,gold card keyboard ,high-shot instrument ,commercial pos terminal.
Specifications
Name |
T10 Embedded Module |
|
||
Central Professor |
32bit professor |
|
||
Indicate Light |
4, from turn to right:blue,yellow ,green, red |
Match |
||
Buzzer |
Support |
|
||
Peripheral Interface&Communication Mode |
Direct outlet |
1 USB interface |
HID(USB no-driver ) |
|
Direct outlet |
1 DB9 interface, 1 USB interface |
RS232 Baud rate 115,200 bps |
|
|
Mag-stripe Card Reader |
1/2/3 rail track reading,two-way and single side swipe card |
Match |
||
IC Card Reader |
1 |
Match |
||
Certificated with ISO/IEC 7816 |
|
|||
Support T=0,T=1 CPU card,and AT24 series,4442,4428 storage card | ||||
T=0:9600-38400bps,T=1:9600-115200bps |
|
|||
Card contacts' life span;20,0000 times |
|
|||
Contact-less Reader |
Certificated with ISO/IEC 14443,support TypeA/B, Mifare card,reading distance over 4CM |
Match |
||
SAM card slot |
4 card slot, certificated with ISO/IEC 7816 |
|
||
Supply |
Power supply by serial interface or USB interface,DC5V±5%,with over-voltage |
|
||
OS |
Windows 98,Me,2K,XP,2003,Unix,Linux,WIN7,VISTA |
|
||
Working Environment |
Temperature:-20℃~60℃ |
|
||
Humidity:5~93percent(non-condensing) |
|
|||
Storage Environment |
Temperature:-30℃~70℃ |
|
||
Humidity:5~95percent(non-condensing) |
|
|||
Others |
Support function library of universal interface, various of operating systems and language development platform, online upgrading is available, can be customized
|
|
||
Match |
Direct outlet 1.5M , 1 USB interface line cable |
Optional |
||
Direct outlet 1.5M , 1 DB9 interface,1 USB interface line cable | ||||
Free Sample Is Avilable With Freight To Be Collected
Carton Box
Netural PackaginG
The Shipping Way Depends On Your Customer's Decision
Support Customization
