Help CenterMicro Gps Tracking Device BSJ K6-Basic
Related Products
-
MTK Gps Tracker for Car Inbuilt Antenna k6NegotiableMOQ: 10 Pieces -
Free Software GPS/GSM/GPRS Sim Card Tracker A01 From Shenzhen BoShiJieNegotiableMOQ: 10 Pieces
-
Vehicle Anti-theft GPS Tracking Device Sirf3 Chip A01NegotiableMOQ: 10 Pieces
-
GPS Tracker Free Software With Accessory Navigation Handset and Text Broadcast DeviceNegotiableMOQ: 10 Pieces
-
GPS Fuel Consumption Solution to Monitor the Fuel Level Change in Real Time M10NegotiableMOQ: 50 Pieces
Specifications
1)Inbuilt antenna2)Facotry sell directly
3)Basic type model

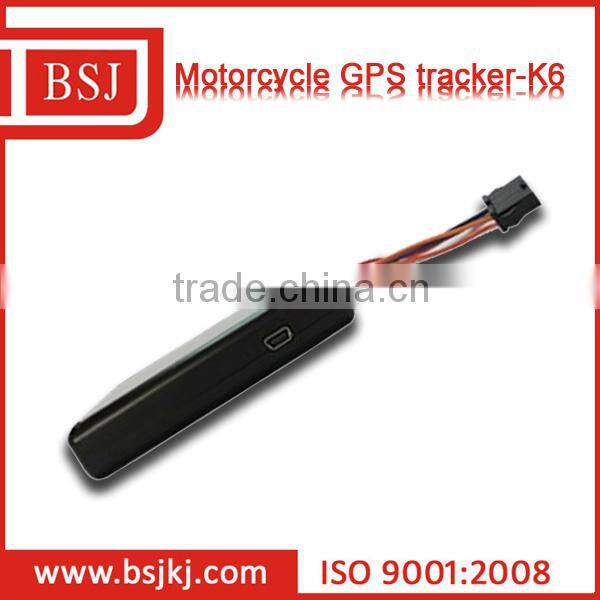

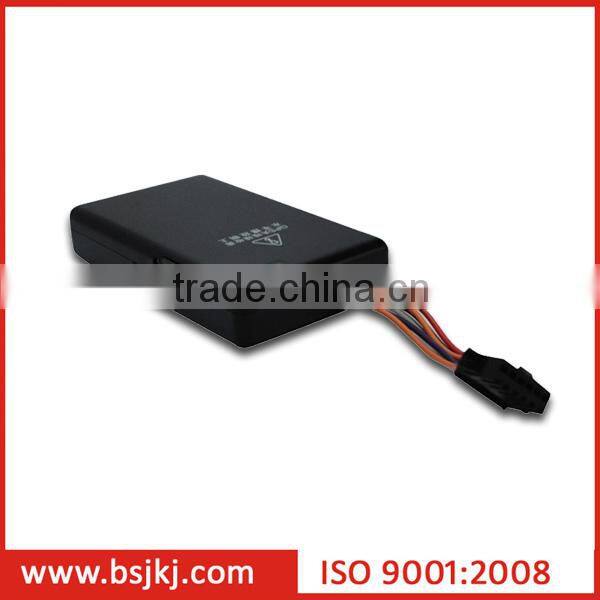

Built-in Antenna GPS tracker Basic-type K6
GPS chip: UBLOX 5M
Specfication BSJ-k6 Basic type GSP Tracker
Items |
Specifications |
Dimension |
78mm X 62MM X 30MM |
| Orientation module | UBLOX 5M |
Working Voltage |
9-36V operating voltage |
GSM module |
850/900/1,800/1,900Mhz (optional) or GPRS TCP/UDP |
|
GPS Sensitivity
|
160dbm |
Channel |
16-channel checking and tracking |
Positioning precision |
Less than 15m |
Time precision |
Global synchronous GPS time |
Working current |
60mA @DC12V |
Color |
black |
Cold start |
45s |
Warm start |
38s |
Hot start |
Less than 5s |
Speed limit |
Max 515m/s (1,000knots) |
Acceleration limit |
Less than 4g |
Working temperature |
-40~80°C |
Storage temperature |
-20~70°C |
Application
1.Vehical Tracking
2.Fleet management
Function
|
Basic function |
Real time tracking,upload data |
Remote controlling oil&circuit | |
SOS | |
ACC detect | |
ACC checking | |
Geo-fence, Mileage statistics | |
Stop engine by remote | |
|
Alarm function |
Movement alarm |
over-speed alarm | |
Blackout&car burglar alarm | |
parking overtime alarm | |
main power off alarm |
Certification
Quality Service System
1.SQA
2.Design Process Quality Assurance
3.Manufacturing Process Quality Assurance
4.OQC
5.Customer Service Quality Assurance
Why choose BSJ
Q: How many customers BSJ have now?
A: More than 100000 overseas users are using BSJ tracking systems, mainly from South America, Africa, Southeast Asia and Eastern Europe. we are top 3 in tracking systems area in China
---------------------------------------------------------------------------------------------------------
Q: How long to delivery order?
A: Ship goods in 1-3 working days by DHL with competitive shipping cost, only need 3-5 working days to get at every corner of the world.
---------------------------------------------------------------------------------------------------------
Q: How about BSJ after-service?
A: BSJ have a professional sales team to provide with you professional and considerate support, if needed, we can guide you operate GPS tracker and live GTS software online by MSN/Skype/Yahoo/G-Talk step by step .
--------------------------------------------------------------------------------------------------------
Q: Does BSJ have ability tog modify device and software to meet our special needs?
A: Yes, sure. BSJ have professional engineers team to develop GPS tracker device and livegts tracking software to meet almost user’s need .
--------------------------------------------------------------------------------------------------------
Q: Any discount any preferential for the first cooperation.
A: Of course
Firmware
| 1.Boshijie firmware and software programming is configured by our in house team of engineers |
| 2.This team is qualified to develop new firmware for customer’s protocol or for newly added functions |
| 3.Boshijie welcomes customer inquiries and challenges for our team of engineers |
|
4.Firmware development includes but not limited to :New firmware (different protocol) development ; Modification to current firmware New function development |
Hardware
| 1. Backed by an R&D team of over 50 engineers, develop new hardware according to customer’s requirements as well as further modifications based on our existing products. |
|
2.Hardware design includes but not limited to: PCB Re-layout New case design External Device Integration |
