Specifications
1.Accident doubtful points data2.Status recorder
3.ID recorder

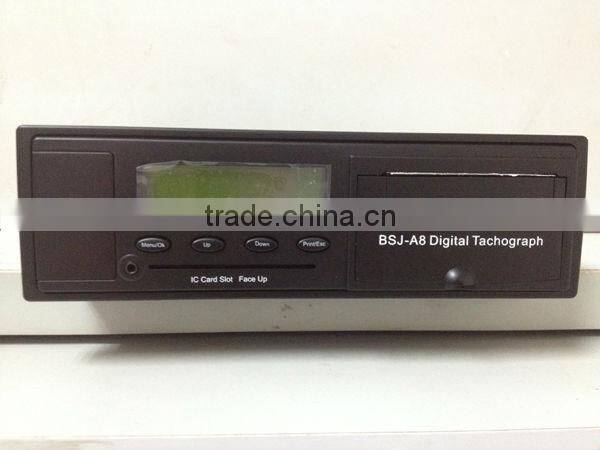

BSJ-A8 Vehicle Digital Recorder with alarm system
duct technicle paramater:
Model |
BSJ-A8 |
Voltage |
9~36V |
Current |
70mA@12V |
Print voltage |
9~36V |
Print current |
390mA~1200mA |
Power consumption |
0.84W |
Speed range |
0~255km/h |
Speed accuracy |
0.5km/h |
Size |
180.1mm×152.2mm×50.1mm |
Case color |
Black |
CPU chip processor |
ARM7 Cortex-M3 |
Main frequency |
72MHZ |
External store capacity |
8GB |
CPU Flash Capacity |
256K |
Temperature |
-20°~70° |
Dot-matrix LCD Screen |
240×32 |
Print format |
Thermal print |
External data port |
RS232 USB DB9 |
RTC |
DS1307 Chip offered |
A. Display function
(1)Real time display function
A: You do not need make any operation, BSJ-A8 can show IC card code, current driving speed etc.
B: Press UP key to check real time clock (A8 can offer GMT+8’s time, date, it will show YY/MM/DD/HH/MM/SS etc)
(2)Show driving record
A8 support show and record data include: RTC, driver’s code and driver license number, latest 360 hours driving speed, VIN code, car plate number, car plate classification, doubtful accident data, latest 2 days driving mileage, fatigue driving record etc.
(3)Show fatigue driving and record
When the same driver keeps continuously driving for 4 hours, A8 will start to record fatigue driving time, it also will send alarm information via speaker in A8.
(4)Show vehicle information and driver file management
A8 can show and record driver’s ID function, before driver start to driving, he can plug in IC card to identify his ID.
(5)Check and set parameter
A8 support many ways to check and set parameter, such as check vehicle parameter, IC card information, set sensor ratio, over speed alarm threshold, standard time calibration, vehicle information setting, driver information setting etc.
B. USB function
Upgrade program, download accident doubtful point data, BIN format file.
C. Print function
Print paper can show content include:
Car plate number,
Car plate classification,
Driver’s code,
Driver’s license number,
Print time,
Parking time,
The last 15 minutes vehicle’s average speed(it will record one speed per minute, it record 15 times),
Fatigue driving time (the latest 4 times fatigue driving records)
D. Cut off circuit protect function
A8 can store all data before you cut off electricity of your device.

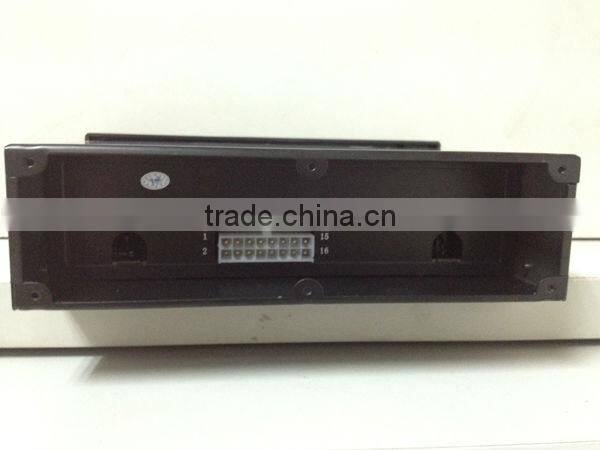

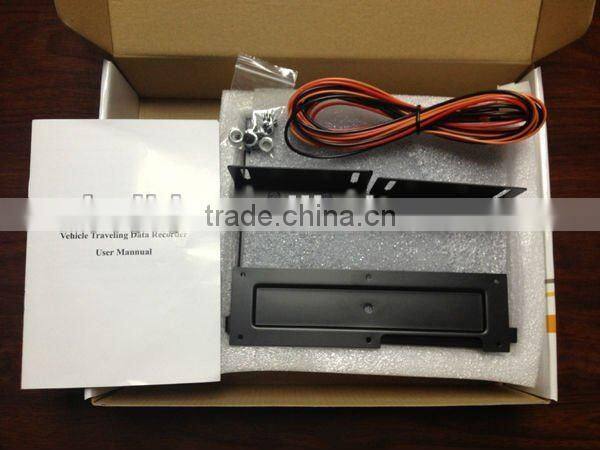

3. Product detail

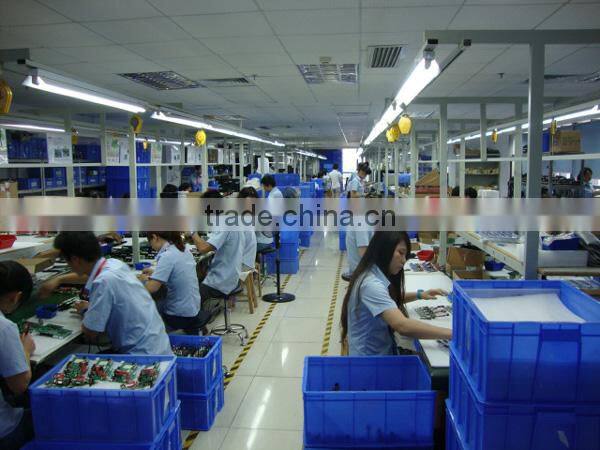

4.BSJ factory
