China Gps Tracker Manufacturer BSJ-K9 Tracker With12 Hours Long Life Backup Battery
China gps tracker manufacturer BSJ-K9 tracker with12 hours long life backup battery
BSJ K9 device is a smart GPS tracker which working voltage is from DC9V to DC100V, it is wilding work on vehicle, motorcycle and electrombile & electrocar. It is very small size and very easy to install and operate.
BSJ-K9 device comes with free web tracking platform and phone APP( Android & IOS), you can implement real-time tracking at anywhere & anytime.
Features:
1. Wide working voltage: DC9V ~ 100V
2. Long backup battery life: lasting 12h in full change
3. built in GPS & GSM antenna
4. Application for electrombile / electromcar & vehicles
5. Low power consumption mode
6. 18 months warranty
Specifications:
No. |
Item |
Parameter |
1 |
Working Voltage |
DC 9-100V |
2 |
Working Current |
30mA@12V |
3 |
Size |
78*53*18.3mm |
4 |
Positioning mode |
GPS |
5 |
Positioning Accuracy |
<10m |
6 |
Communication Network |
GPRS |
7 |
Communication Mode |
TCP/UDP |
8 |
Working Temperature |
-25 to +75 centigrade |
9 |
Storage Temperature |
-40 to +85 centigrade |
10 |
Weight for main unit |
71.2 g |
11 |
Backup Battery |
12hours lasting in full charge |
Functions:
| Function | Function Details | Function Description |
| vehicle remote control | Check location timingly | Check real time vehicle data with setted time interval |
| Timing Monitor | Set time interval for monitor | |
| Blind area data upload | Memory 200pcs blind area data and upload it to online tracking platform when the signal is back | |
| Version Checking | Check version via online tracking platform | |
| Mileage setup | Set initial value of mileage | |
| OTA | Firmware remote upgrade by air. | |
| Vehicle Alarm Function | GEO-Fence Function | Max. Set 10 fences and trigger alert when it enter or exit the fence |
| Over-speed alert | Set over-speed alert data and when the speed is over this data, alert will triggered. | |
| Low Voltage Alert | Triggered when main power voltage is lower than 10V | |
| Power Cut Off Alert | Triggered when main power voltage is lower than 5V, SMS alert | |
| Illegal Move Alert | Triggered when ACC"OFF",but speed over 5KM/H and lasting 10s,support SMS alert | |
| Vibration Alert | When the vibrated accelerate speed is more than set data, vibration alert will triggered and upload a location information to online tracking platform | |
| others | Inflection point | Upload location online when the turning angle is bigger than set |
| Low Power Consumption Mode | When device upload data to platform, if there isn’t vibration,alert,SMS in the future 10 minutes, it will turn to low power consumption |
Product Size
Online Tracking: both are free for web-platform and phone APP (Android & IOS)
1) Web-platform

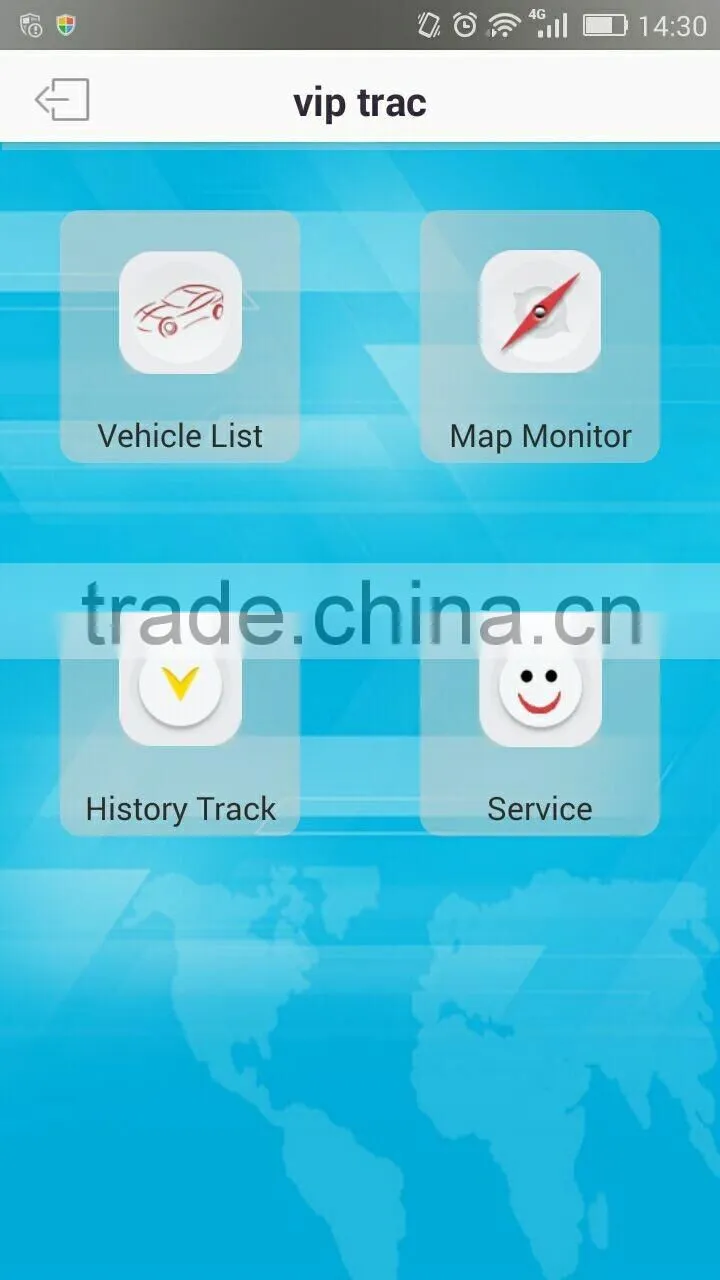

2) Phone App

Stabdard packing list of K9
1) K9 main unit 1pc
2) 3pin harness 1pc
Shipping ways: 1) ship by express: DHL & FedEx & TNT & EMS ect
2) ship by Post: HK Post & Singapore Post & Malaysia Post ect.
3) ship by sea
ect.
Delivery date: 1) for sample: ship in the same day when payment confirmed
2) for bulk order, ship in 5 working days after payment confirmed
BSJ Comapny Information
Shenzhen BoShiJie(BSJ) Techonology Co.,Ltd. is a professional and top 3 GPS Tracker manufacturer in China.
More than 100000 overseas users are using BSJ tracking systems, mainly from South America, Africa, Southeast Asia and Eastern Europe.
BSJ is suported by 150 engineers, with strength of hardware & firmware & software custmoized. And now BSJ is suppling cusomized device & platform to Nigeria, Vietnam, New Zealand, Egypt ect.
