Help CenterBSJ-A08 Fleet Management System Gps Tracking System With Fuel Sensor
Related Products
-
Fleet Management GPS Tracker BSJ-A08 for VehicleUS$ 1 - 50MOQ: 10 Pieces -
Vehicle GPS Tracker Vehicle Fleet Management System for Truck & Car & BusUS$ 1 - 50MOQ: 10 Pieces
-
BSJ-A8 Fleet Management System for Vehicle TrackingUS$ 60 - 65MOQ: 10 Pieces
-
Gps Fleet Management Tracking Device BSJ-A8US$ 1 - 50MOQ: 10 Pieces
-
GPS Vehicle Tracking System With Voice MonitoringUS$ 60 - 70MOQ: 10 Pieces
BSJ-A08 fleet management system gps tracking system with fuel sensor
Advantage:
SMS dispatching
collecting photos
over-speed alarm
remote control
UDP or UDP+TCP mode
RS232 conenctor
Driving mileage initialization
Application:
Vehicle Real time Tracking
Location Based Service
Fleet Management
Car Security / Anti-Hijack
Characteristics:
Small size: Difficult to find and easy to install,
Low power consumption: Nearly have no infection to the vehicle battery.
High integrity: Adopt ARM chip with superior processing, highly integrate with automobile recording instrument, use 128×64 LCD display screen of automobile recording instrument to display short message or GPS information.

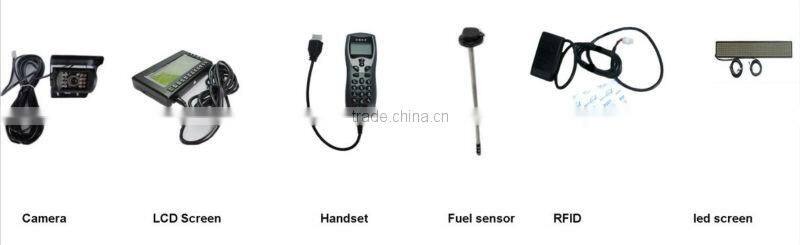

Strong extendibility: Multi-reserved interface, selectable communication handle, LCD display and camera,Oil consumption, temperture sensor,Text broadcast device.
Function:
| Real-time GPS tracking | Anti-theft and emergency alarm |
| Real-time vehicle status monitoring | Over-speed alerts |
| Vehicle immobilization control | Remote control via mobile phone |
| GPS mileage report | Parking overtime alarm |
| Blind area data storage, up to 1.500 data log capaciry | Remote firmware upgrade via GPRS |
| Geo-fence with 60 rectangle area | With Microphone and listen-in function(two-way conversation) |
| Car battery power cut off alarm | TCP/UDP dual mode communication |
| SOS Alarm | RS232 connector |
Specification:
| Item | Specification |
| GSM/GPS module performance | Dual-Band 900Mhz,1800Mhz(850/1900MHz optional) |
| 2 watts EGSM(GSM900 class 4) | |
| 1 watts GSM1800(DCS1800 class 1) | |
| GPRS class 10 | |
| GPS Chipset | Latest U-blox 5M high sensitivity chipset |
| GPS Sensitivity | -160dB |
| Channels | 20/50 channel all-in-view tracking |
| Dimension | 76x66x43mm |
| Weight | 150g |
| Working Voltage | DC 9V~36V |
| Normal power consumption | 80mA (Power Saving Mode<20mA) |
| Working Temperature | -20°C~+60°C |
| Working Humidity | 5%~95% RH |
| Antenna | 1. GPS 2. GSM |

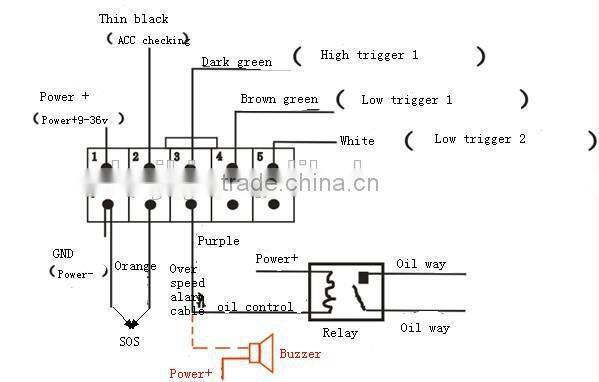

| Interface | 1. 4 Digital Inputs (3 Positive Triggers & 2 Negative Triggers). |
| 2. 1 relay output 250mA 12VDC. | |
| 3. 1 RS232 interface. | |
| Application | 1. Taxi dispatch management. |
| 2. Long distance passage vehicle GPS monitoring. | |
| 3. Bus GPS scheduling management system. | |
| 4. Logistics vehicle GPS monitoring and management system. | |
| 5. Rental vehicle GPS monitoring system. | |
| 6. Extended LED screen for advertising purpose. | |
| 7. Extended LCD screen for dispatching. |
Details:
Tracking system:
Web based tracking platform
APP for Android cell phone & Iphone
More than 100000 overseas users are using BSJ tracking systems, mainly from South America, Africa, Southeast Asia and Eastern Europe. we are top 3 in tracking systems area in China
Why choose BSJ
Q: How many customers BSJ have now?
A: More than 100000 overseas users are using BSJ tracking systems, mainly from South America, Africa, Southeast Asia and Eastern Europe. we are top 3 in tracking systems area in China
---------------------------------------------------------------------------------------------------------
Q: How long to delivery order?
A: Ship goods in 1-3 working days by DHL with competitive shipping cost, only need 3-5 working days to get at every corner of the world.
---------------------------------------------------------------------------------------------------------
Q: How about BSJ after-service?
A: BSJ have a professional sales team to provide with you professional and considerate support, if needed, we can guide you operate GPS tracker and live GTS software online by MSN/Skype/Yahoo/G-Talk step by step .
--------------------------------------------------------------------------------------------------------
Q: Does BSJ have ability tog modify device and software to meet our special needs?
A: Yes, sure. BSJ have professional engineers team to develop GPS tracker device and livegts tracking software to meet almost user’s need .
--------------------------------------------------------------------------------------------------------
Q: Any discount any preferential for the first cooperation.
A: Of course
