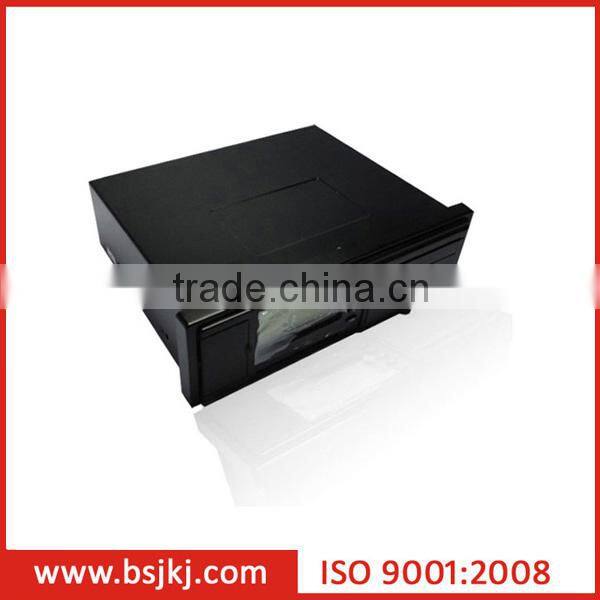

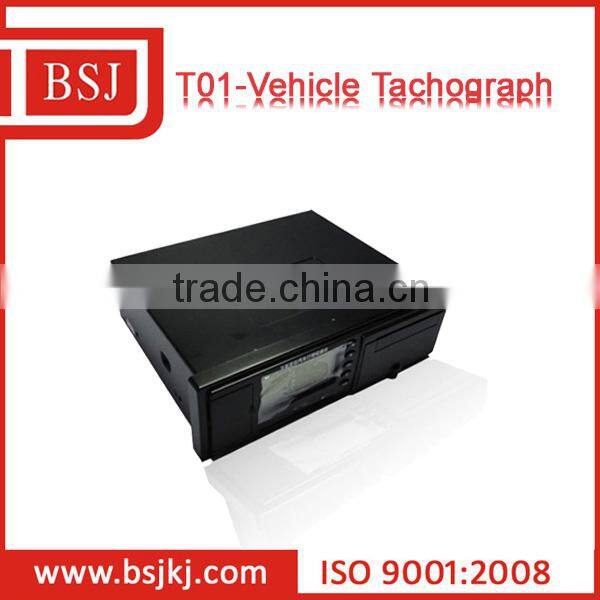

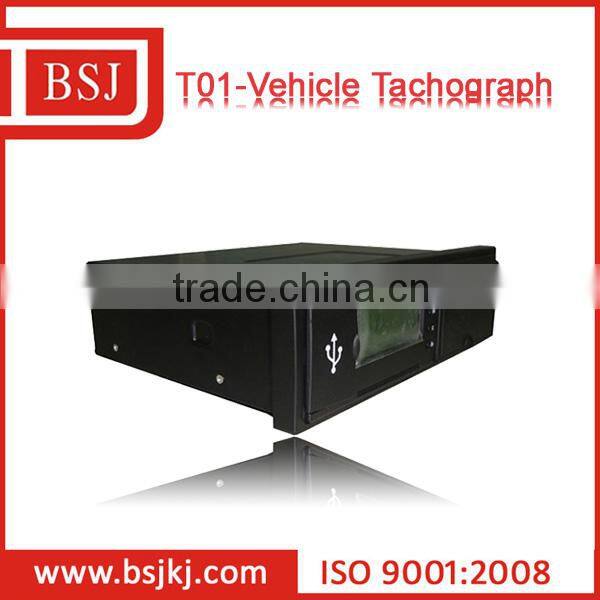

vehicle GPS tracker speed limiter with camera fuel/temperature sensor Real-time tracking T01

NO.

Items

Parameter

1

Dimension

190mm*155mm*58mm

2

Weight

600g

3

Input Voltage

DC 12V~36V

4

Operation current

200mAh/12V (3,000mAh when printing)

5

Operating temperature

-20℃~75℃

6

Humidity

5%~95%

7

Work Time

2 hours in normal mode

8

LCD screen

2.3”(2.8*5.5cm)

9

Integrated thermal Printer

1

10

Trip mileage measurement range

0~999,999.9km

11

Monitoring speed range

0~255km/h

12

Accident speed data time interval

0.2 second

13

GSM frequency

GSM 850/900/1800/1900MHz

14

GPS chip

U-blox

15

GPS sensitivity

-159dB

16

Positioning accuracy

10 meters

17

Speed error

<1km/h

18

Driver identification

IC Card

19

Switch signal

8(vibration, brake, door magnetic, left steering light, right steering light, high beam, ACC, Fuel control)

20

GPS

Position accuracy: <10 m;

Position time: <15 seconds

Re-capture: <45 seconds

Hot start: about 20 seconds

Cold start: <=150 seconds

21

GPRS

GPRS Class 10: Multi-time buttress function

Support GSM900/DCS1800

GSM07.07, GSM07.05 and strength AT command;

Launch power: Class 10;
