Specifications

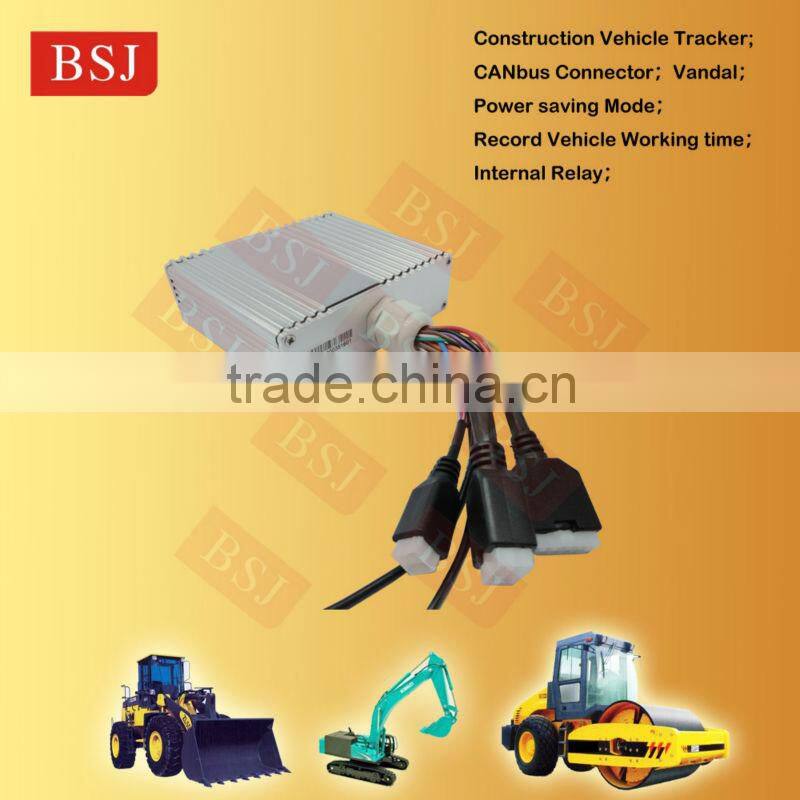

online gps sim card tracker with CANBUS connector A08G1. online gps sim card tracker
2. online gps sim card trackers, tracker
online gps sim card tracker with CANBUS connector A08G
Parameter of online gps sim card tracker with CANBUS connector A08G
CAN BUS GPS Tracker Remote Control
GSM/GPS module performance
Dual-Band 900MHz, 1800MHz(850/1900MHz optional)
260g
Workingl Voltage
DC 9V~36V
Normal power consumption
70mA (Power Saving Mode<20mA)
Working Temperature
-40~+85
Working Humidity
5%~95% RH
Antenna
GPS SMA connection, -26dB
GSM SMA connection, -3dB
Interface of online gps sim card tracker with CANBUS connector A08G
7 Digital Inputs (4 Positive Triggers & 3 Negative Triggers);
1 relay output 250mA 12VDC
2 output 200mA 12VDC (include camera power)
2 audio interface
Image function
Support 160 x 120, 320x 64, 480 x 240 resolution, max 200 pictures
Features of online gps sim card tracker with CANBUS connector A08G
1.Real-time GPS tracking
2.Real-time vehicle status monitoring
3.Vehicle Immobilization Control
4.GPS mileage report and mileage pulse report(Traffic black box)
5.Blind area data storage, up to 50, 000 data log capacity
6.Geo-Fence with 108 rectangle area
7.Fleet management, 8 routes of vehicle tracking
9.Two audio interfaces for microphone and handset
10.Two RS232 interfaces for camera monitoring and information screen
11.More I/O interfaces for 19 User-Defined Report Alarm
12.Fuel and temperature monitoring via 2 analog inputs
13.Overspeed alerts
15.Smart power protection
16.Remote firmware upgrade via GPRS
18.Dual data communication capability through GPRS.
19.TCP/UDP dual mode communication
Special Function of online gps sim card tracker with CANBUS connector A08G
1.Built-in 4 way relays and the antenna port from the internal device, make this device have great anti-broken function:A)If the antenna broken, it will control the machine arm or cut off oil&circuit function;B)If the SIM card out, it will control the machine arm or stop oil&circuit function;C)Main power off, control the machine arm or stop oil&circuit;
2.Record the machine vehicle's total working time and the longest working time;
3.Can connect with the original Canbus;
4.This is the customization products.
Configuration List of online gps sim card tracker with CANBUS connector A08G
Standard | ||
1. |
Host of vehicle GPS terminal |
1 |
2. |
Owners Manual |
1 |
3. |
Warranty Card |
1 |
4. |
Certificate of Conformity |
1 |
5. |
Power cord |
1 turns |
6. |
GPS antenna |
1 |
7. |
GPRS/CDMA antenna |
1 |
8. |
Installation fittings |
Several |
