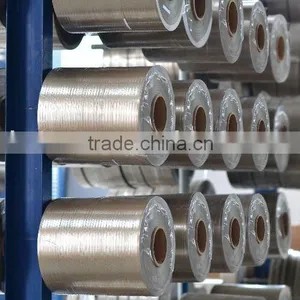

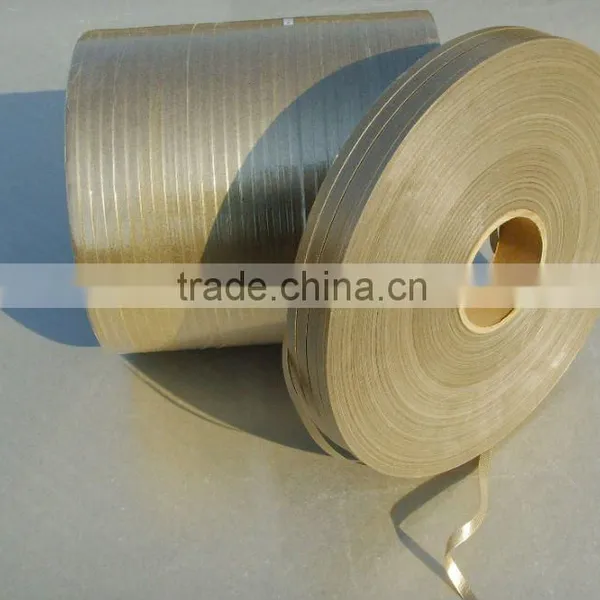

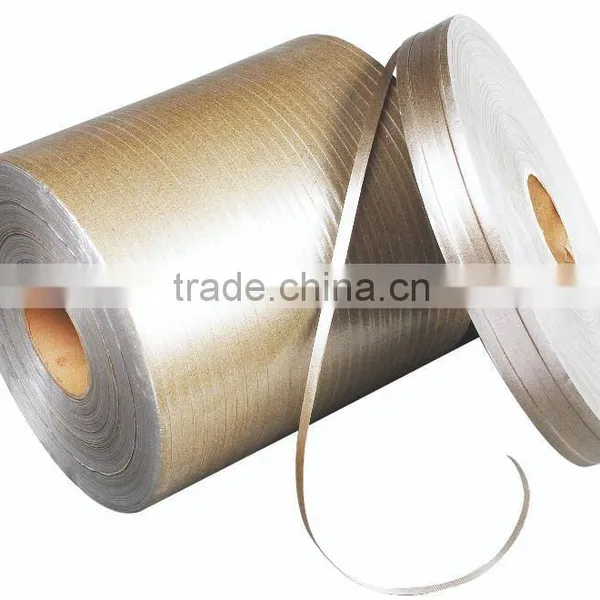

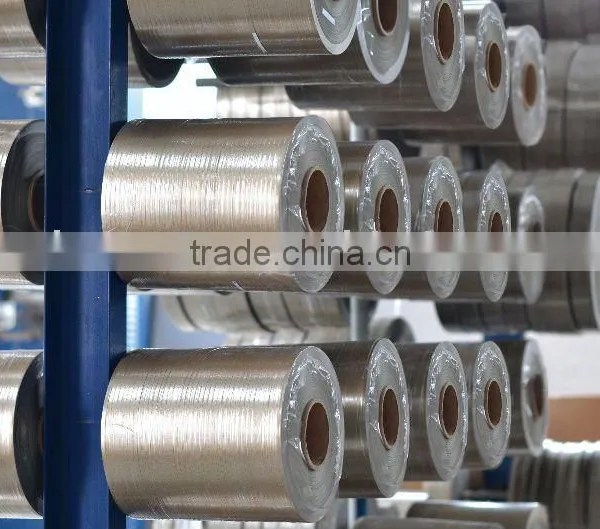

Help CenterMica Tape in Bobbin
Related Products
Specifications
It can be up to 50000 meters in Max .400mm OD and 400mm height .
Normally the length of mica tape in pad packing is range from 300 to 1000 meters ,it takes much time for cable factory to tape another pad after one used up .That’s why we take BOBBIN tape to improve it ,which can be up to 50000 meters in Max .400mm OD and 400mm height .
CHARACTERISTIC
1, Resist extreme thermal stresses and give outstanding fire protection . R-5461-P-GS is made from phlogopite mica paper ,retain insulation properties at 800°C .
2, Incombustible ,asbestos free and do not create toxic gasses .
3, Excellent tensile strength and shock resistance .
ITEM |
UNIT |
R-5461-P-GS |
||||||
0.08mm |
0.10mm |
0.11mm |
0.12mm |
0.13mm |
0.14mm |
0.15mm |
||
Appearance |
|
No alien material ,no split ,scar&hole ,no broken folded |
||||||
Length |
m |
500/1000/2000 |
||||||
Thickness |
mm |
0.08±0.015 |
0.10±0.015 |
0.11±0.015 |
0.12±0.015 |
0.13±0.015 |
0.14±0.015 |
0.15±0.015 |
Weight of Tape |
g/ m² |
105±10 |
130±10 |
145±10 |
170±15 |
180±15 |
215±15 |
225±15 |
Mica Content |
% |
>55 |
>60 |
>63 |
>65 |
>70 |
>70 |
>70 |
Breakdown Voltage |
KV |
>1.0 |
>1.1 |
>1.3 |
>1.5 |
>1.7 |
>1.8 |
>2.0 |
Tensile Strength |
N/15mm |
≥150 |
≥160 |
≥180 |
≥200 |
≥200 |
≥200 |
≥200 |
Binder Content |
% |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
Fire Grades |
°C |
750°C~800°C ,IEC331 |
||||||
AVAILABLE
1, Thickness : 0.08mm-0.16mm
2, Width : 4.5mm-1000mm
3, Length : 300m 500m 1000m 2000m
4, Standard cores : 52mm 54mm 76mm 120mm
STORAGE
Minimum 1 year at room temperature
APPLICATIONS
Oil-platforms ,Multi-storey building ,Power station ,Industry plants ,Subways ,Computer centers ,Aerospace units ,Telecommunication centers ,Ship ,Military facilities…
