High Quality Etched Foil Mica Heater
- 10000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | RONGTAI | Model Number: | R-5660-E mica heater |
Type: | Other, Heating Element | Material: | Other, Mica | Application: | High Temperature |
Product Description
Glory Mica Co., Ltd is committed to manufacturing and distributing the best quality mica products to her customers worldwide. Glory Mica, as a member of Glory Group ---- specialized in insulation materials, is a professional manufacturer of mica products. Our factory locates in Jiaxing City, it takes you only an hour from Shanghai,Hangzhou,Suzhou or Ningbo to get to our factory by bus.
*Company department

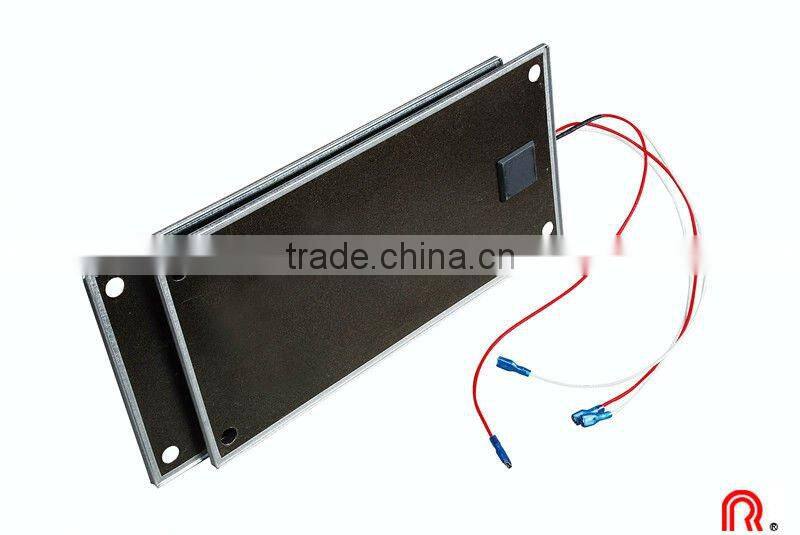

Features and Performance parameters to Mica-Film Heater in electric heater
Function
Single-side & both-side radiation, wide area for heat generating, warm fast booting and High efficiency was provided.
Be able to bear or endure impulse voltage, double electric insulation with high security and reliable.
Far infrared rays beaming cause virtues of medical and healthcare.
Soft heating source without noisy, naked flame, peculiar smell is leading to the best environment house and home
The thin & ultra light texture is with good shock resistance and advantageous to design and modeling and provide you the warm of sunlight felling.
Technical standard
Design Meet to GB4706.1-2003 GB4706.23-1998 (in china, see different country for criterion apply).
Film Surface Temperature is within 250C-290C
HIPOT ensure is 1800V 0.75MA in 60 seconds without shoot down
Insulation resistance is equal 100M ohms or above
Service life is equal 6000 hours or above under normal use
Power Rating | 5W-3000 W | Supply Voltage | 5V-380V |
Supply Frequency | 50-60 HZ | Temperature Range | -20, +25C |
Outline Dimension | By customer | Weight | 0.2-0.5 Kg |
Brand | Mica-Film Heater | Warming up time | 2 Minutes |
Sort | Electric heater | Specifications | By customer |
Application Scope
Based on various design with agile installation method, the electric heater can be used well in residential houses, workplace, Business office, hotels and eatery, storage and garage end etc. However, Mica-Film Heaters not only use for electric heater. Up to now, Mica-Film Heaters is extended its spectrum to automotive industry, crop farming, breeding/cultivation except Household appliances. Especially, kitchen wares was found the new way application. Combine artificial intelligence with computers technology, subsection/loculose/household splitting is available now.
Size (LxW): 1000x600mm or 1000x1200mm

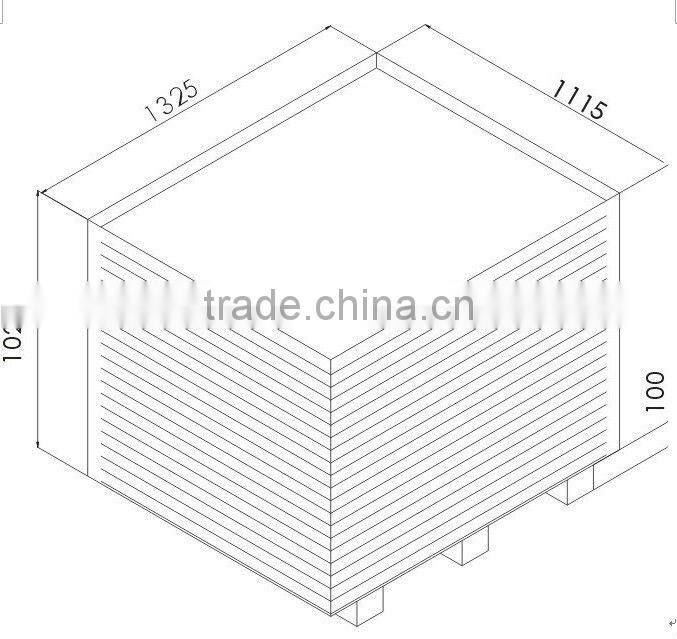

Protective package: pallet or wooden case
