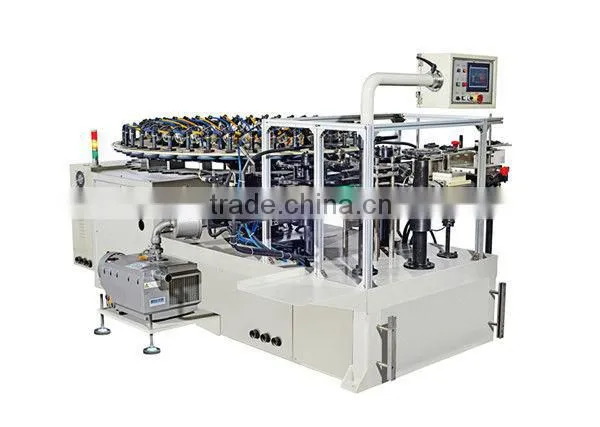

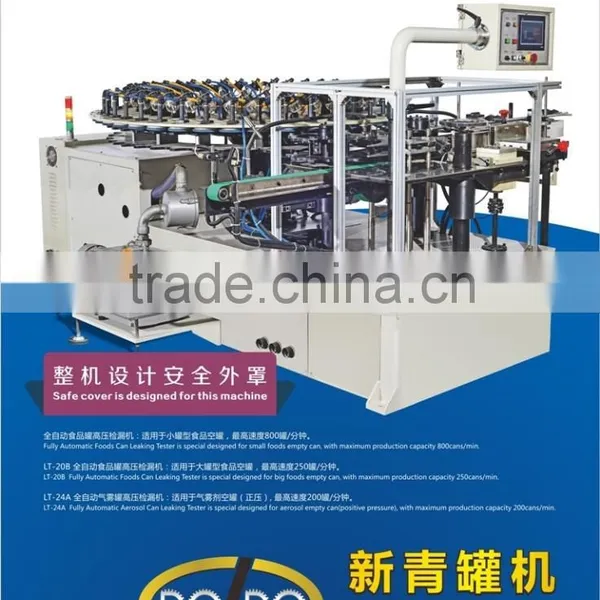

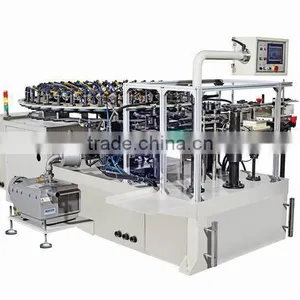

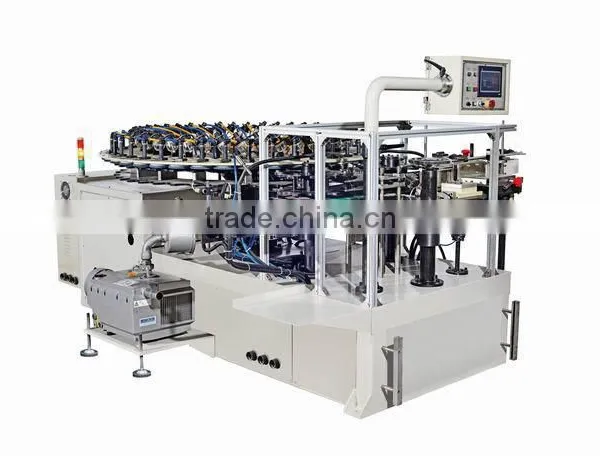

LT-20B Fully Automatic Foods Can Leaking Tester
This machine adopts vacuum theory(negative pressure) to detect weather if there is crack on the can body . with precise detection elements to sense can body value ,detecting performance is excellent, even small pinhole can be detected easily. Empty can is lifted up by cam and pushed enter vacuum sucking valve which steady in high speed rotating then fill compressed air into can.Certain time later, an electronic precise pressure sensor is to detect mini pressure variation inside the can., nonconforming can is ejected out by air blowing.
Mechanical Characteristic
1. Fully automatic control system,vertical outlet conveyor easy to link and work with seamer.
2. Perfect machine safety device.
3. Perfect treatment for contact surface of can body with anti-scuffing.
4. Easy for can size changeover and maintenance.
5. Touch screen controller is easy to adjust parameters and running speed , easy to shooting troubles.
LT SeriesMain Feature & Specifications
Model |
LT-24A |
LT-20B |
LT-40 |
LT-60 |
Production Capacity |
250cans/min(max) |
200cans/min(max) |
500cans/min(max) |
800cans/min(max) |
Application Range of Dia |
¢52-99mm |
¢99-189 mm |
¢52-99 mm |
¢52-99mm |
Application Range of Can Height |
35-320 mm |
99-260 mm |
35-180 mm |
35-180 mm |
Inspection Capacity |
0.07-0.3 mm |
0.07-0.3 mm |
0.07-0.3 mm |
0.07-0.3 mm |
|
Air Consumption |
0.5mpa-20hp |
0.5mpa-20hp |
0.5mpa-20hp |
0.5mpa-20hp |
|
Power Consumption |
5kw |
8kw |
10kw |
12kw |
Application |
For aerosol can |
for big foods can |
for small foods can |
|
Welcome your further negotiation if it is out of the above specifications.
Production speed and can sizes can be designed according to customer’s special requirement.
