Specifications

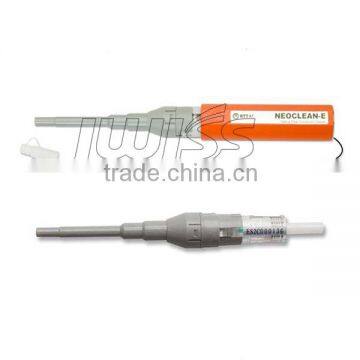

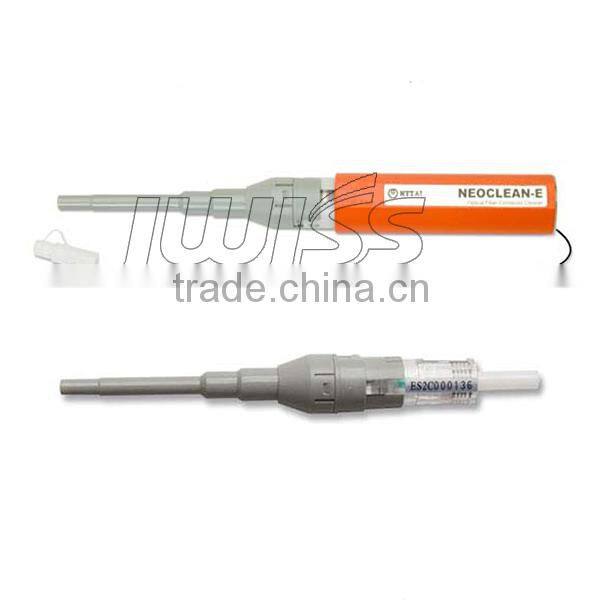

In-Adapter Ferrule Cleaner for ferrule cleaning inside of adaptors with no need to open the frameNeoclean-E - Pen Type Cleaner with replaceable thread
• Simple one push action cleans ferrule end face in device adaptors. The cleaning cartridge is replaceable, with each cartridge performing about 750 cleanings, greatly reducing cleaning costs
• Using the attached cap you can also clean ferrule end face in plugs.
Part |
Applicable Optical Connectors |
ATC-NE-E1 |
MU*, LC, LC/APC |
ATC-NE-ES1 |
ATC-NE-E1 Cleaning Cartridge |
ATC-NE-E2 |
SC, FC, SC/APC, FC/APC |
ATC-NE-ES2 |
ATC-NE-E2 Cleaning Cartridge |
Ergonomic One-Click Cleaner (SC/ST/FC & LC/MU)
• The One-click Cleaners are dry cloth cleaners specially designed to clean single fiber connectors residing in an adapter, faceplate or bulkhead.
• The dust cap of the cleaner acts as an adapter for cleaning unmated connectors
• Disposable with 800+ cleanings per unit, Made from antistatic resins
• Easy pushing motion engages connector and initiates cleaner
• Cleaning micro fibers are densely stranded and debris free
• Extendable tip reaches recessed connectors
• Compliant with EU/95/2002/EC Directive(RoHS)
Part |
Applicable Optical Connectors |
FOC-250C |
One-Click Cleaner SC (SC, ST,FC) |
FOC-125C |
One-Click Cleaner LC (LC/MU) |
Bulkhead Cleaner
The MTP I.B.C. (In Bulkhead Cleaner) is the first dry cloth fiber optic cleaner specifically designed to allow you to clean the MPO while inside of a fiber optic adapter, faceplate, or bulkhead. The unique design enables you to clean either male (with pins) or female (with-out pins) MT ferrules.
• Essential Cleaning Tool for Networking Gear
• Cleans the MPO inside of an Adapter, Faceplate, or Bulkhead
• Cleans MT Ferrules With or Without Pins
Fiber In-Adapter Ferrule Cleaner AFC-3000A
•Automatic, electronically controlled, variable cleaning cycle 1-2 seconds (Trigger Operated).
•Dry clean solution for 1.25mm and 2.5mm in-situ connectors Field portable, high performance, rugged.
•900 cleans per replaceable cartridge (1.25mm and 2.5mm variants).
•Built in Usage Indicator.
•Individual cartridges for 1.25mm and 2.5mm ferrule based connectors.
•Long reach nose (3 inches including tip adaptor) to ease access into ODF’s
Part |
Applicable Optical Connectors |
AFC-3000A |
Fiber In-Adapter Ferrule Cleaner |
AFC-ECU |
Electronic Control Unit |
AFC-SC/FC-RE |
Replacement Cartridges for SC/FC/ST Cleaner |
AFC-LC/MU-RE |
Replacement Cartridges for LC/MU Cleaner |
HUXCleaner In-Adapter Ferrule Cleaner
• HUXCleaner is Pen Type In-Adaptor Ferrule Cleaner and it is no need to open the frame for ferrule cleaning inside of Adaptors.
• About 500 cleaning by 1 HUXCleaner
• No need open the Frame for ferrule cleaning inside of Adaptors
• For 1.25mm (LC, MU) and 2.5mm (SC, FC, ST) ferrule type Cleaning is available . Easy and Simple and Pocket Portable
