Blasting Wheel Accessories Blades and Impellers

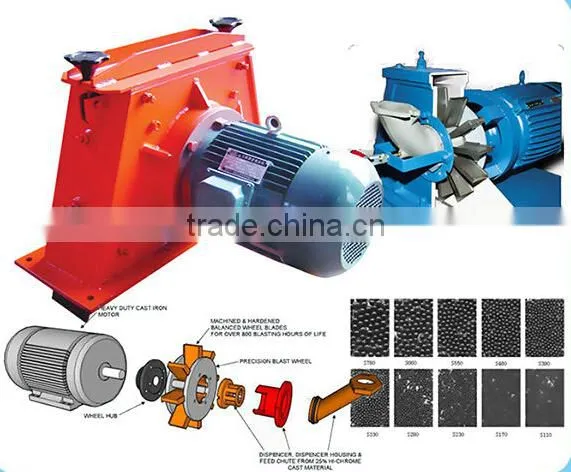

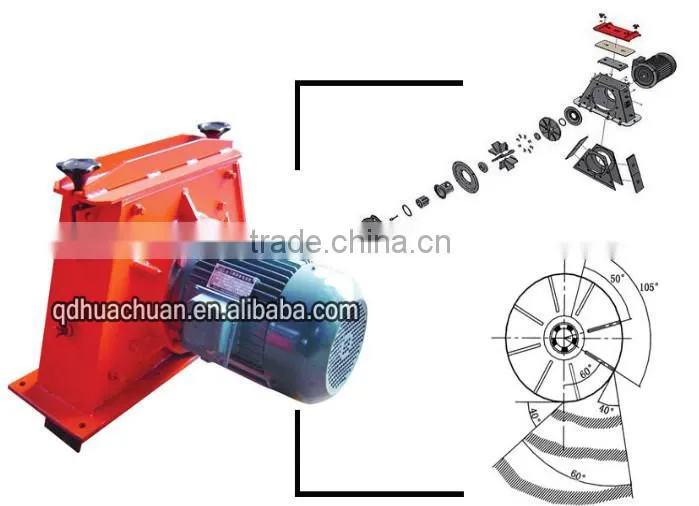

Direct-driven blasting wheel:
Direct driven blasting wheel is one kind of new-design high-Efficient blast wheel,beatiful appearance, compact confl-Guration low noise,economy and environmental protection Q064Z37 type has the largest power and largest rate abraslve flow.
| Type | Diameter of impeller(mm) | rotating speed of impeller (r/min) | max rate abrasive flow(kg/min) | power of moto(kw) |
| ZKQ034 | 380 | 2930 | 120 | 7.5 |
| Q034Z11A | 380 | 2930 | 120 | 11 |
| Q034Z15A | 380 | 2940 | 120 | 15 |
| Q064Z30 | 400 | 2940 | 480 | 30 |
| Q064Z37 | 415 | 2940 | 600 | 37 |
Belt-wheel blasting wheel
Belt driven blast wheel is conventional, large rate abrasive floe and good cleaning effect etc. it is need part of the airless shot blast cleaning equipment.
| Type | Diameter of impeller(mm) | rotating speed of impeller (r/min) | max rate abrasive flow(kg/min) | power of moto(kw) |
| ZKQ05 | 400 | 2200 | 160 | 11 |
| Q033 | 400 | 2450 | 180 | 11 |
| Q034 | 420 | 2600 | 250 | 15 |
| Q035 | 500 | 2200 | 360 | 22 |
| Q038 | 500 | 2370 | 970 | 75 |
Blasting Wheel Accessories:
Shot blasting machine accessories are wearing parts need to be replaced periodically, wear resistance castings,with the technology of investment casting(Lost wax casting),1. With investment casting method for the production of Carbon steel cast iron, alloy steel, high chromium cast iron, heat-resistant alloy, stainless steel, precision alloy, permanent magnet alloy, bearing alloys, copper alloy, aluminum alloy, titanium alloy and nodular cast iron.2. investment casting weight mostly tens of grams to several dozen kilograms, the company produced generally in about10 kg, heavy pieces are not easy to mass production.

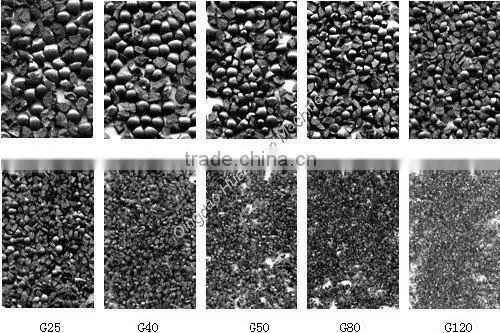

Shot:
S780/SS2.5, S660/SS2.0, S550/SS1.7, S460/SS1.4, S390/SS1.2, S330/SS1.0, S280/SS0.8, S230/SS0.6, S170/SS0.5, S110/SS0.3, S70/SS0.2
Qingdao Huachuan Machinery Co.,Ltd locate at the seashore city Qingdao west coast in beauty,The company is a the gather the reseach,development ,produce.The industry that conducts for the intergral whole turns the entity,having to be engaged in to cast the machine for more than 40 years of the long but deep cultural deposits and the means,the management system of science.The conduct and actons casts the professional production factory use,technique,quality and the automation level etc.Of the machine profession to all be placed in the domestic to go together the advance level of industry.The prodcts are sold to all parts of the country,export th Souheast Asia,Egypt etc,enjoy good prestige among the masses of users
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional
engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for
more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment
charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to
ensure our products to be finished in high quality and stable feature.
9. Equipment warranty and After-sale Assurance Engineers available to service machinery overseas
( except force majeure, inappropriate operation and the quick-wear parts wears).
10. The equipment will pass the installment and test before delivery, after the quality is qualified,
we will disassembly the equipment, coating and deliver.
Any needs , Please let me know.
