Roller Conveyor Blast Machines For Sheet Metal and Profiles
- 200 Set / Sets per Month
- Qingdao
- T/T
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | QDHC |
Model Number: | QH69 series | Feature: | Critical Cleaning / Residue Free | Fuel: | Electric |
Certification: | Other, ISO9001 | Use: | Burnishing | Cleaning Process: | Other, shots |
Cleaning Type: | Other, shot blasting | Industry Used: | Other, forging mechanicai and steel industry | Material: | Metal / Coil |
Power(W): | customizd | Dimension(L*W*H): | custoized | After-sales Service Provided: | Overseas service center available |
Product Description
Qingdao Huachuan Machinery CO.,LTD

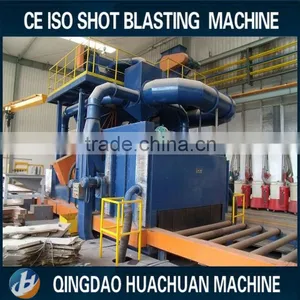

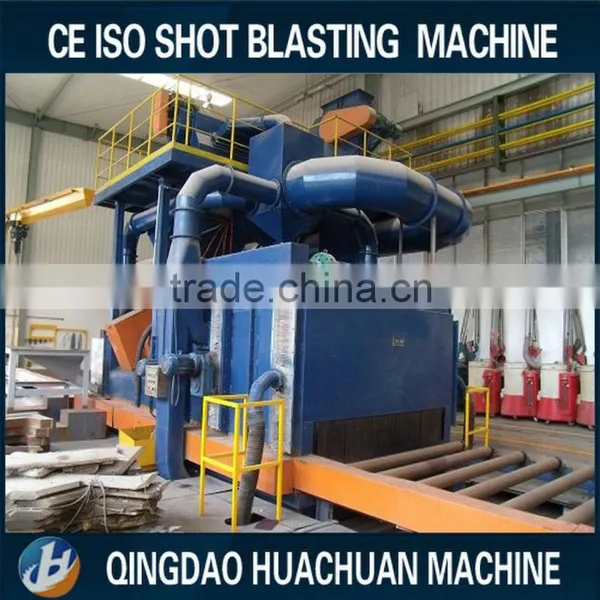

Roller Conveyor Blast Machines For Sheet Metal and Profiles
Size : QH69 shot blasting machine

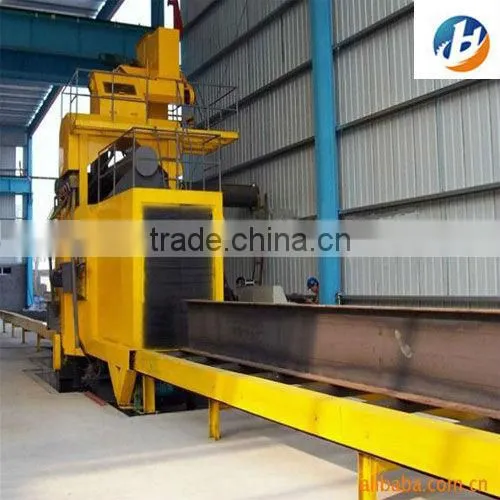

The series belongs to roller-type blast cleaning machine,mainly used for buildings,bridges and other industries with large I-BEAM,H-BEAM steel sructure such as size pieces of high stress and the elimination of cleaning the surface rust .
item | unit | QH698 | QH6912 | QH6915 | QH6918 |
EFFECTIVE CLEAN-UP WIDTH | mm | 800 | 1200 | 1500 | 1800 |
ROOM SIZE BODY FEED | mm | 1000x1500 | 1400x1700 | 1700x1700 | 2000x1800 |
CLEAN UP THE LENGTH OF WORKPIECE SIZE | mm | 1200-12000 | 1200-13000 | 1500-13000 | 2000-13000 |
CLEAN UP OF WORKPIECE SIZE | mm | 800x1200 | 1200x1500 | 1500x1500 | 1800x1600 |
TRANSMISSION SPEED | m/min | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
SHOT VOLUME | kg/min | 8x125 | 8x180 | 8x180 | 8x250 |
THE FIRST TIME INTO THE VOLUME | kg | 4000 | 5000 | 5000 | 6000 |
VENTILATION | m3/h | 20000 | 22000 | 25000 | 25000 |
TOTAL POWER | kw | 90 | 130 | 180 | 180 |
Product description

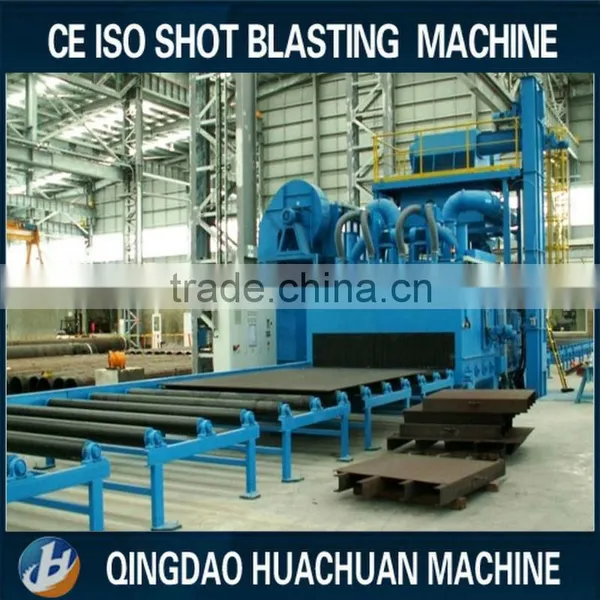

QH69 serise Blasting Machine are mainly used for treating long and/or flat components. The components continuously pass through the "pre" chamber, the blasting chamber, and the cleaning chamber on a special roller conveyor.
Highly efficient turbines fixed on the machine housing make the H-beam Shot Blasting Machine possible to treat the components on all sides.
QH69 serise Blasting Machine are used to remove scale, rust and paint from long and/or flat components.
The QH69 Blasting Machine designed was fitted with our heavy-duty turbine system, which generates significant operating cost reductions due to faster throughput times, as well as reductions in shot-blasting media consumption and energy requirements.
with our customer
We are QINGDAO HUACHUAN MACHINERY CO., LTD. Located in the machinery manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification.
As one of the leading machinery manufacturers such as: Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc);
