Capacity Of 500-800kg/hour Rubber Powder Making Line For Waste Tyre Recycling
- 20 Set / Sets per Month
- China Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Tire Recycling Machine | Place of Origin: | Shandong, China |
Brand Name: | QDHC | Model Number: | XKP-560 Rubber crusher | Voltage: | 220-440V/50-60HZ |
Power(W): | Customized | Dimension(L*W*H): | Customized | Weight: | Customized |
Certification: | CE/ISO | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Capacity Of 500-800kg/hour Rubber Powder Making Line For Waste Tyre Recycling

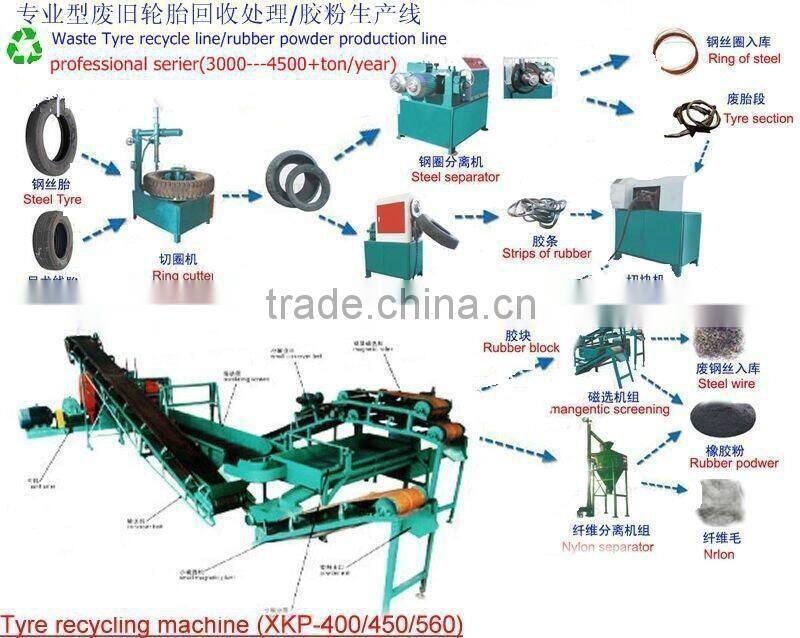

Production line constitution
1. Ring cutter
Application: The equipment is a special equipment to cut and separate the bead ring, the sidewall and crown of waste tires.
2. Strips cutter
Application: The equipment is a special equipment to cut the sidewall and the crown of waste tires into rubber stripes with a certain width, and the width is adjustable,
3. Rim cutter
Application:This machine is utilized to process the rubber stripes into rubber blocks with a certain size, which is good for latter production and improving work efficiency.
4. Steel wire separator
Application: The equipment is mainly used to separate the rubber and bead ring of the steel rings in various tires to get a complete bead ring.
5.Rubber crusher
Type&Specification | XKP-400 | XKP-450 | XKP-560 |
Feeding size | 3.5CM | 3.5CM | 3.5CM |
Discharging size | 10—30 mesh powder | 10--30 mesh powder | 10--30 mesh powder |
Rubber crusher throughput(kg/h) | 100--150kg | 250—300kg | 350—420kg |
Motor power(kw) | 45 | 60 | 75 |
Outside measurement(m) | 4.1×1.8×1.9 | 4.4×1.9×1.9 | 5.5×2.2×2.1 |
Weight(t) | 7.5 | 11 | 19 |
Application: It is the main equipment to process steel wire tires and fiber tires, it can directly treat rubber stripes,rubber blocks, shoe soles and leftover scraps into rubber power with different Mesh.

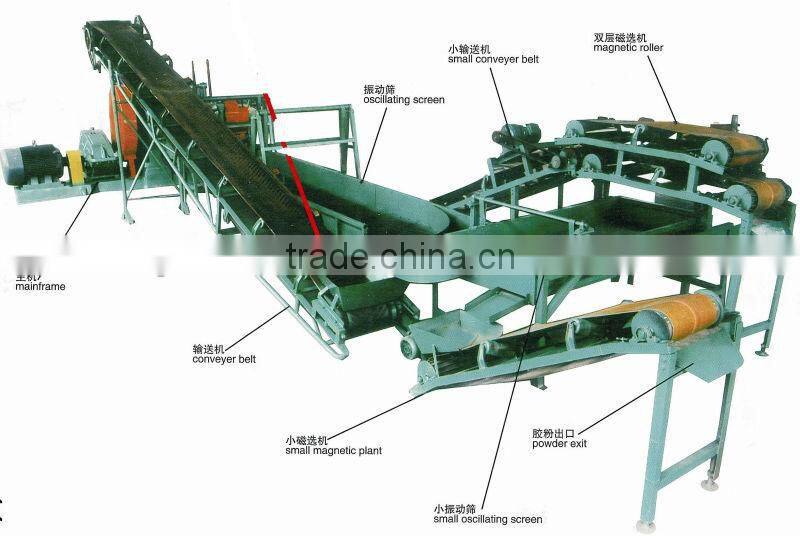

6.Large conveyor belt
To conveyor the rubber block into crusher.
7.Small conveyor belt
8.Large magnetic separator
Purpose: separate the steel small block from the rubber powder.
9. Small magnetic separator
10.Large vibrating screen
1.separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through small conveyor belt.
2.separate“COARSE FIBER”from rubber powder
11.Small vibrating screen
The machine is mainly use to separate the different size of rubber powder in the same time, such as: you can get 20 mesh, 30 mesh and 60 mesh rubber powder by this machine IN THE SAME.. Not enough size will resend to rubber crusher by big conveyor, For second crushing.
Our services
1.Pre-sale services:
Provide the consultation of the equipment. According to the clients’ special requirement, offering the reasonable plan helping to select the equipment.Welcome to visit our factory.
2.Services during the sales:
Inspect the machine before leaving the factory.Oversea install and debug the equipment. Train the first-line operator.
3.After sale services:
Provide technical exchanging and timely problem solving support.
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in the production line,
Please let me know.
