High quality Rubber Crusher Mill XKP series
Specification
1. Tire Rubber crusher is mainly consists of a base, frame, roller, roller bearings, roller distance adjusting device, transmission device, heating and cooling equipment,
safety brake, motor and reducer.

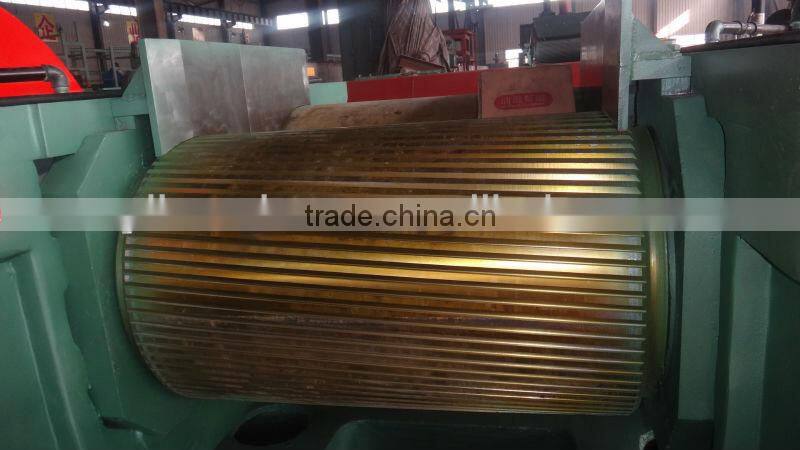

2.Two parallel arranged relative rotary hollow cylinders installed on
the frame, the upper machine cover is fixed with bolts and frame, the lower end of the frame with the stud is fixed on the base, a distance adjusting device through the worm wheel and the front roller connected to rotate the hand wheel to adjust the roll gap.
3.The back roll is provided with a coupling, the motor through
Hardened reducer and coupling to power the back roll, and make the back roller rotates, the other end of back roll is provided with the roller speed ratio gear, it and the front roller speed ratio gear, the front and rear roll relatively rotate.
4.To adjust rubber mixing process, the roller temperature through heating and cooling device for adjustment. For the operation security,
rubber mixing machine is provided witha safety brake device, when the draw rod, can be
automatically cut off the power, realizes the parking brake.
Technical parameters
| Parameter | Version | |||||
| XKP-400 | XKP-450 | XKP-560 | XKJ400 | XKJ-480 | ||
| Front roll diameter | 400 | 450 | 560 | 400 | 480 | |
| Back roll diameter | 400 | 450 | 510 | 480 | 612 | |
| Roll length | 600 | 650 | 800 | 650 | 800 | |
| Front roll surface speed | 17.32 | 23.2 | 25.56 | 18.01 | 26.6 | |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 | 1:1.88 | 1:1.75 | |
| Max .nip | 8 | 8 | 15 | 10 | 15 | |
| Feeding capacity per | 200-300 | 600-800 | -1500 | -300 | -500 | |
| Power | 45 | 55 | 75 | 55 | 75 | |
| Size | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 4770*2300*1835 | 50702800*1978 | |
| Weight | 7000 | 12000 | 19000 | 12800 | 20000 | |
Functions
ThE tire rubber crusher is used to crush the waste tire into rubber powder. Environmental protection and energy saving, Market Prospect Broadness.

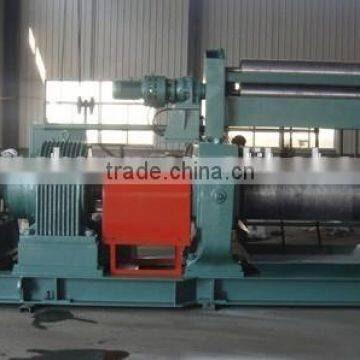

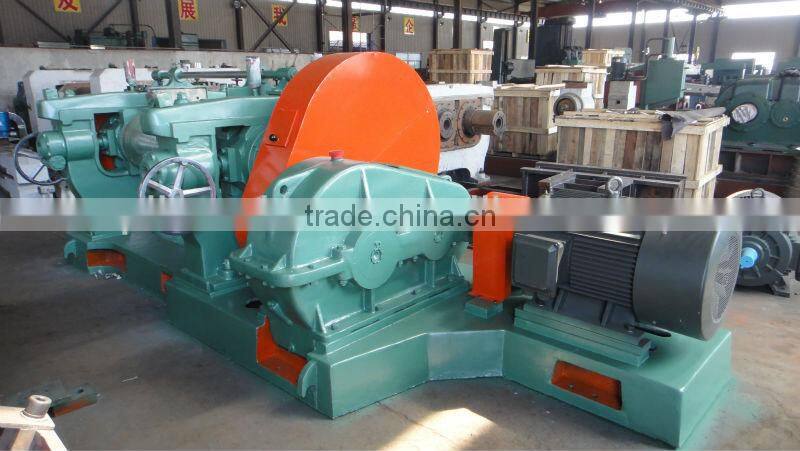

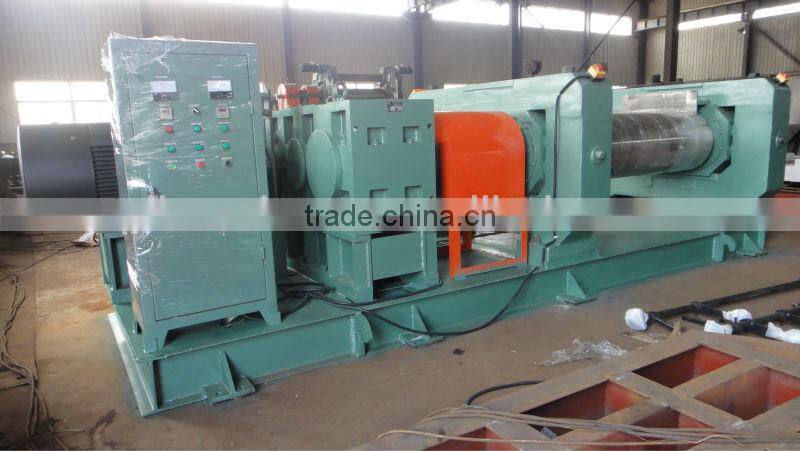

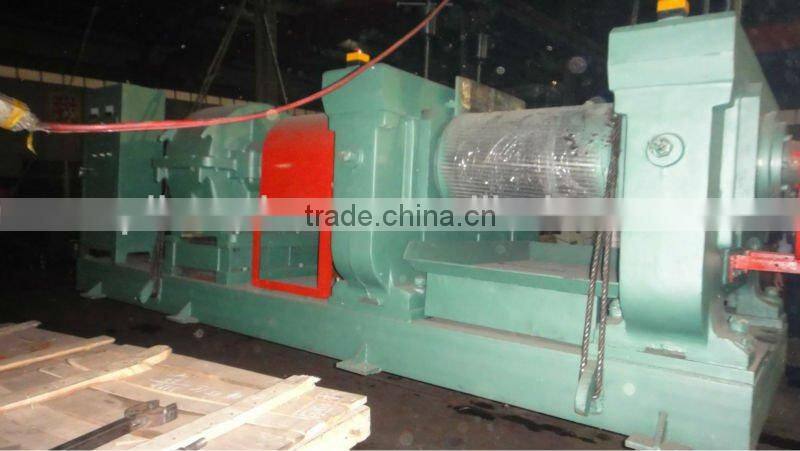

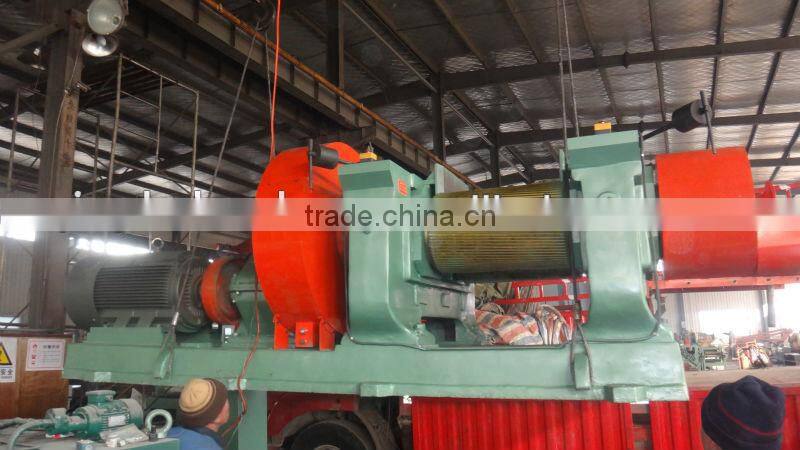

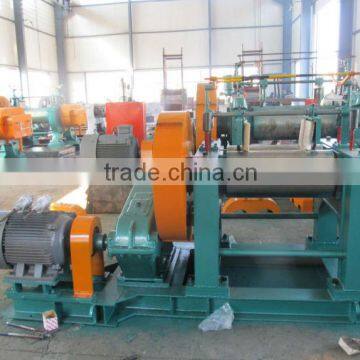

Details images
We can also produce rubber powder whole production line machine
1.tire crushing machine for ring cutter
2.tire strip cutter machine
3.tire block cutter for make tire into 3-5cm rubber block
4.tire wire removing machinery
5.tire cursher machine
6.shaking device
7.fiber seperator
Certificate
If you are interested in our rubber crusher , Please let me know.
