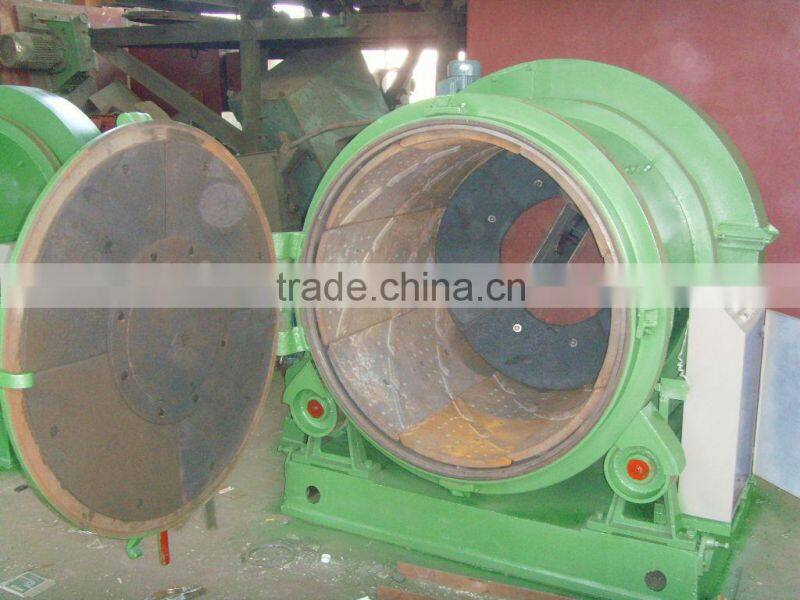

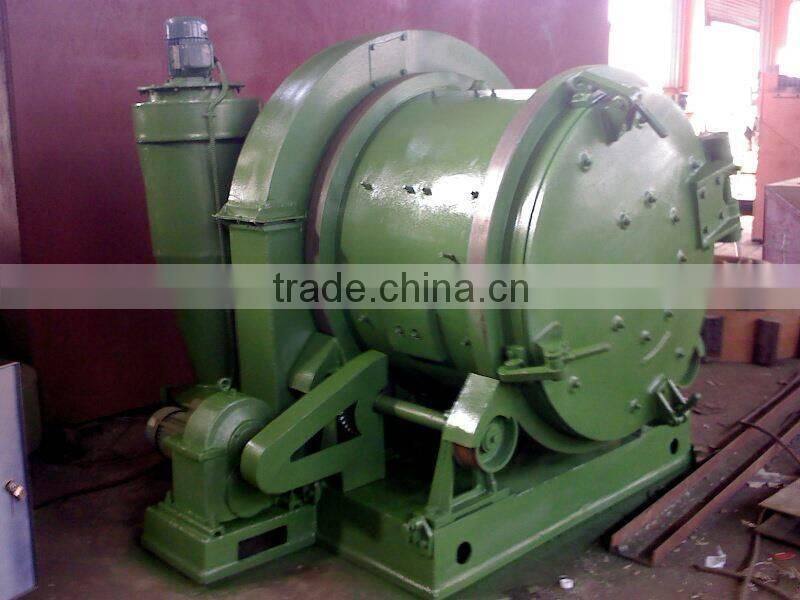

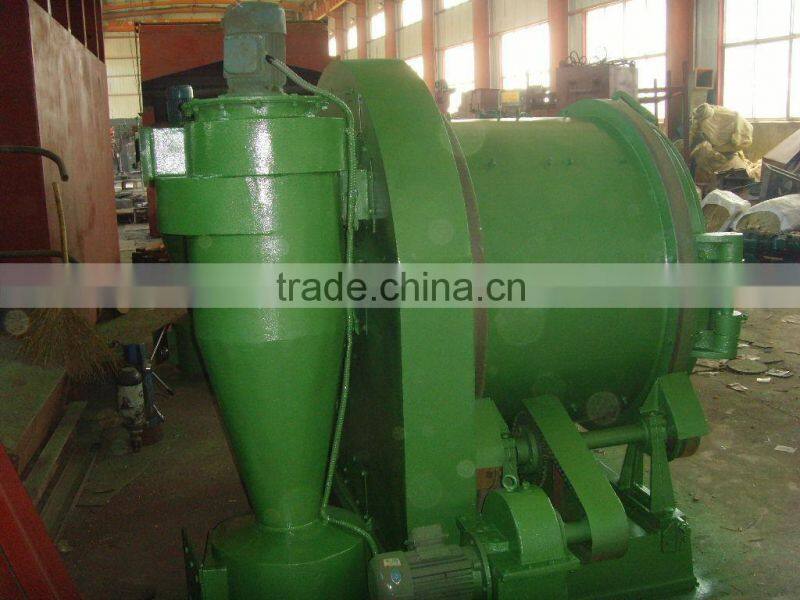

Q3110 model 300kg capacity shot blasting machine
This tpe shot blasting machine is a high-speed rotary impeller projectile thrown roller continuous flip the workpiece, so as to achieve the clean up parts of the barrel shot blasting machine
The purpose of a casting machinery range. It is suitable for various industries in the 15 kg of castings and forgings, sand, rust, descaling and surface hardening. This type shot blasting machine for cleaning up various afraid of a collision the scratch casting, forging, is ideal equipment for small heat treatment shop, clean the surface residual sand, oxide, the main roller, separator, shot blasting, hoisting machine, geared motors and other components
Characteristics:
1. The massive popularity of have no pit form, save the foundation pit of the construction cost
2. Is shot chambers and blast the arrangement is all through the computer 3 d dynamic simulation determined after trajectory, make out the flow of the projectile covering area accurate cover surface of workpiece, projectile and into the work of the workpiece surface from all directions.
3. Using high aerosol propellant cantilever shotblast speed centrifugal implement, can significantly improve the cleaning efficiency, obtain satisfactory cleaning quality
4. Machine design concept is novel, compact structure, convenient usage and maintenance
Serial number |
Item |
Q3113BI |
Q3113BII |
Q3110BI |
Q3110BII |
|
1 |
Diameter of rolling drum |
mm |
Φ1300 |
Φ1300 |
Φ1000 |
Φ1000 |
2 |
Loading capacity |
kg |
600 |
600 |
300 |
300 |
3 |
Productivity |
kg/h |
2500-3500 |
2500-3500 |
600-1500 |
600-1500 |
4 |
Power(excluding dedusting) |
kw |
14.5 |
16.3 |
9.7 |
11.9 |
5 |
Maximum weight of workpiece |
kg |
30 |
30 |
15 |
15 |
6 |
Rotational speed of rolling drum |
r/min |
2.5 |
2.5 |
3 |
3 |
7 |
Abrasive flow rate |
kg/min |
160 |
160 |
120 |
120 |
8 |
Ventilation capacity |
m3/h |
2000 |
2800 |
800 |
2000 |
9 |
Dedusting efficiency |
% |
85 |
99 |
85 |
99 |
10 |
Outline dimensions |
mm |
2550*2341*2250 |
4362*2341*2250 |
2078*2458*1861 |
3870*2458*3370 |
