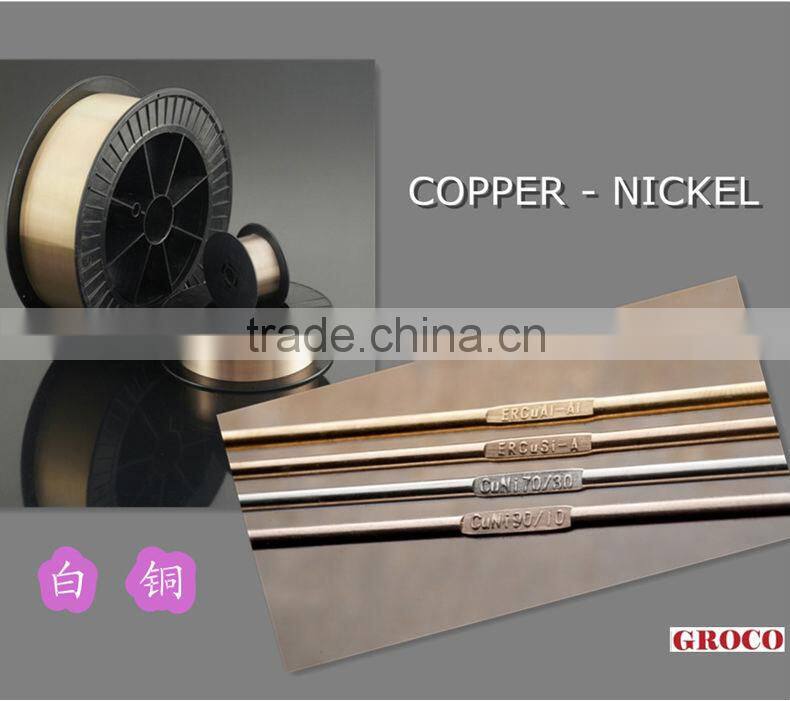

DIN 1733 SG-CuNi10Fe BS EN14640 CuNi10 Copper Nickel Welding Wire
Negotiable
MOQ: 500 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GROCO
Model Number:
SG-CuNi10Fe
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWS A5.7 ErCuMnNiAl Manganese Nickel Aluminum Bronze Welding WireNegotiableMOQ: 500 Kilograms -
AWS ErCuNiAl DIN 1733 SG-CuAl8Ni6 BS EN14640 CuAl9Ni5 Nickel Aluminum Bronze Welding WireNegotiableMOQ: 500 Kilograms
-
DIN 1733 SG-CuAl8Ni2 Nickel Aluminum Bronze Welding Wire RodUS$ 9.85 - 10MOQ: 500 Kilograms
-
5/32" 4.0mm AWS Er309 Stainless Steel Tig Welding Wire RodUS$ 5.3 - 5.85MOQ: 500 Kilograms
-
1/8" 3.2mm AWS Er309 Stainless Steel Tig Welding Wire RodUS$ 5.6 - 5.85MOQ: 500 Kilograms
Place of Origin
China
Brand Name
GROCO
Model Number
SG-CuNi10Fe
Material
Copper / Copper Alloy
Diameter
MIG 0.8-2.0mm TIG 1.6-6.4mm
Melting Point
1145°C
Weight
500kgs min
Application
suitable for the joining and overlay welding of copper nickel
Specifications
Particularly suitable for the joining and overlay welding of copper nickel such as machinery,desalting of seawater,ship-building| NAME: Copper-Nickel | |||||||||||||
| Physical & Mechanical Properties: | |||||||||||||
|
Solids-Temperature 1100°C , Density 8.9kg/dm³ , Elongation 34% Liquids-Temperature 1145°C , Tensile Strength 420N/mm² , Brinell Hardness 80HB | |||||||||||||

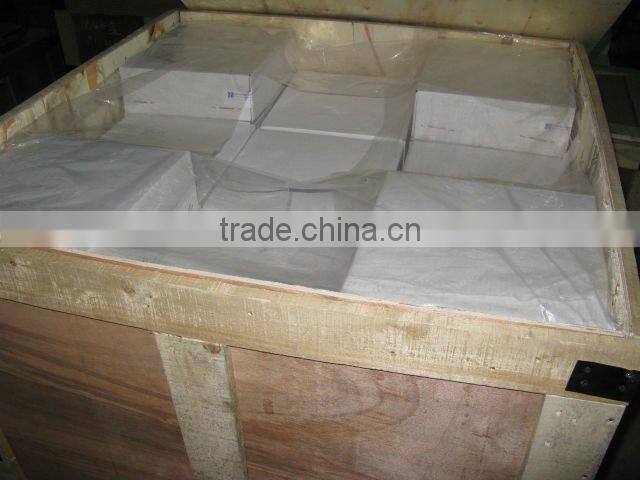

| Packaging | |||||||||||||
MIG |
Diameter |
0.8 - 2.0mm |
Packaging |
D100mm D200mm D300mm |
Weight |
1kg/5kg/12.5kg/13.6kg/15kg |
|||||||
0.030"- 5/64" |
2lb/10lb/27lb/ 30lb/33lb |
||||||||||||
TIG |
Diameter |
1.6 - 6.4mm |
Length |
457mm / 914mm |
Packaging |
5kg/box 25kg/box 10kg/plastic package |
|||||||
1/16" - 1/4" |
18" / 36" |
10lb/box 50lb/box 10kg/plastic package |
|||||||||||
| Introduction | |||||||||||||
| Especially good for sea water corrosion resistance. Particularly suitable for the joining and overlay welding of copper nickel such as machinery,desalting of seawater,ship-building,oil refinery, and food processing industries. | |||||||||||||
Chemical composition(%) | |||||||||||||
standard |
Alloy |
Cu |
Fe |
Mn |
Ni |
P |
Pb |
Si |
C |
Ti |
S |
other |
GB/T9460 |
CuNi10 |
bal. |
0.5-2.0 |
0.5-1.5 |
9.0-11.0 |
max |
max |
max |
0.1-0.5 |
max |
max |
|
0.02 |
0.02 |
0.2 |
0.02 |
0.4 |
||||||||
BS EN14640 |
CuNi10 |
bal. |
0.5-2.01.0 |
0.5-1.5 |
9.0-11.0 |
0.02 |
0.02 |
0.2 |
0.05 |
0.1-0.5 |
0.02 |
0.4 |
DIN 1733 |
SG-CuNi10Fe |
bal. |
1.0-2.0 |
0.5-1.5 |
9.0-11.0 |
max |
max |
max |
max |
0.2-0.5 |
max |
max |
0.02 |
0.02 |
0.2 |
0.05 |
0.015 |
0.4 |
